Caldera, Chile presents an excellent location for year-round solar PV energy generation. Located in the Southern Sub Tropics at coordinates -27.0644, -70.8296, this area benefits from consistently high solar irradiance throughout all seasons.

Seasonal Solar Performance

The solar energy output at Caldera shows strong performance across all seasons. Summer delivers the highest production at 9.02 kWh per day per kW of installed solar capacity, making it the peak generation period. Spring follows as the second-best season with 7.95 kWh per day per kW, offering nearly as much energy production as summer. Even during the lower-producing seasons, Caldera maintains respectable output levels. Autumn generates 5.83 kWh per day per kW, while winter - typically the weakest season for solar in the Southern Hemisphere - still produces a solid 4.49 kWh per day per kW.

Optimal Installation Setup

For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 23 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting for daily solar potential.

Environmental Challenges and Solutions

Caldera's location in Chile's Atacama Desert region presents several environmental factors that could impact solar panel performance:

• Dust and sand accumulation from desert conditions
• Salt deposits from coastal proximity
• High altitude UV exposure causing potential equipment degradation
• Temperature extremes between day and night

Preventative Measures

To maintain optimal energy production, several installation strategies should be implemented. Regular cleaning systems are essential, either through automated washing systems or scheduled manual cleaning to remove dust and salt buildup that can reduce panel efficiency by 10-20%. UV-resistant materials should be specified for all system components, including cables, mounting hardware, and panel frames, to withstand the intense desert sun exposure. Additionally, proper ventilation spacing between panels and mounting surfaces helps manage the significant temperature variations typical of desert climates. Installing corrosion-resistant mounting systems made from marine-grade aluminum or stainless steel will combat the salt-laden coastal air, ensuring long-term structural integrity of the solar installation.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 115 locations across Chile. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Chile by location

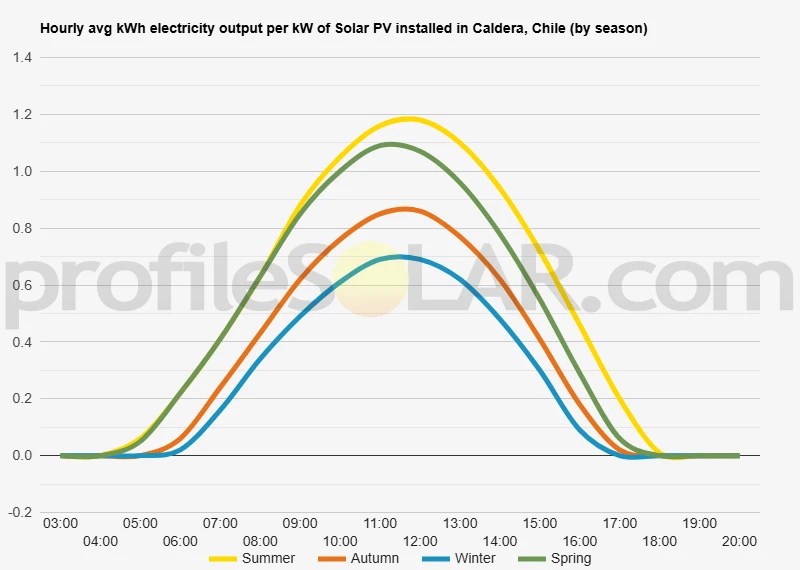

Solar output per kW of installed solar PV by season in Caldera

Seasonal solar PV output for Latitude: -27.0644, Longitude: -70.8296 (Caldera, Chile), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° North in Caldera, Chile

To maximize your solar PV system's energy output in Caldera, Chile (Lat/Long -27.0644, -70.8296) throughout the year, you should tilt your panels at an angle of 23° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Caldera, Chile

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Caldera, Chile. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	32° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Caldera, Chile

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Caldera, Chile.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Caldera, Chile

Topographical Features of the Caldera Region

Caldera sits within Chile's Atacama Desert, positioned along the Pacific coast where dramatic elevation changes create a striking landscape. The immediate coastal area features relatively flat terrain at sea level, gradually rising inland toward the foothills of the Andes Mountains. This transition from coastal plains to mountainous terrain occurs over a relatively short distance, creating distinct topographical zones that vary significantly in their suitability for different types of development.

The coastal strip around Caldera consists primarily of sandy beaches, low-lying flats, and gentle rolling hills that extend several kilometers inland. These areas typically maintain elevations below 200 meters above sea level and offer stable, relatively level ground. Moving further inland, the terrain begins to climb more steeply, with rocky outcrops, desert valleys, and increasingly rugged topography characterizing the landscape as it approaches the Andean foothills.

The region experiences minimal vegetation due to its extremely arid climate, resulting in largely barren landscapes dominated by exposed rock, sand, and sparse desert scrub. This lack of significant vegetation means fewer obstacles for large-scale development projects, though it also indicates the harsh environmental conditions that any infrastructure must withstand.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations lie in the inland desert plains, particularly those areas situated 10 to 30 kilometers east of Caldera. These zones offer the ideal combination of flat to gently sloping terrain, stable ground conditions, and sufficient space for massive solar arrays. The relatively level topography in these areas minimizes the need for extensive site preparation and reduces construction costs associated with grading and foundation work.

The desert valleys between low hills provide particularly attractive development opportunities, as they offer natural wind protection while maintaining excellent solar exposure throughout the day. These valleys typically feature firm, compact soil conditions that can support heavy equipment and infrastructure without the challenges posed by shifting sands or unstable surfaces found in some coastal areas.

Areas at elevations between 300 and 800 meters above sea level present the optimal balance of accessibility and environmental conditions. These locations remain easily accessible via existing transportation networks while being elevated enough to avoid potential coastal fog and humidity that can occasionally affect lower-lying areas. The slightly higher elevation also provides better air circulation, which helps maintain optimal operating temperatures for solar equipment.

The terrain south and southeast of Caldera appears particularly promising for large-scale solar development, featuring extensive flat areas with minimal topographical obstacles. These regions offer vast expanses of unused desert land with excellent solar exposure and stable geological conditions. The relatively uniform elevation across these areas would allow for efficient installation of tracking systems and simplified maintenance access across large installations.

Chile solar PV Stats as a country

Chile ranks 22nd in the world for cumulative solar PV capacity, with 4,468 total MW's of solar PV installed. This means that 9.10% of Chile's total energy as a country comes from solar PV (that's 5th in the world). Each year Chile is generating 234 Watts from solar PV per capita (Chile ranks 21st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Chile?

Yes, there are several incentives for businesses wanting to install solar energy in Chile. The Chilean government offers a range of financial incentives and tax credits for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the installation of solar panels. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional incentives such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Chile? Please reach out to us and help us keep this information current. Thanks!
