Graneros, O'Higgins Region, Chile presents a moderately good location for year-round solar energy generation, though with significant seasonal variation typical of its Southern Sub Tropics climate zone.

Seasonal Solar Performance

The solar energy output at this location shows substantial differences throughout the year. Summer delivers the strongest performance at 9.20 kWh per day per kW of installed solar capacity, making it an excellent time for solar generation. Spring also performs well with 7.31 kWh per day per kW, providing solid energy production during this season. Autumn sees a notable decline to 5.01 kWh per day per kW, while winter presents the most challenging period with only 2.91 kWh per day per kW. This winter figure represents less than one-third of the summer output, highlighting the importance of planning for seasonal energy storage or grid supplementation during the colder months.

Optimal Installation Setup

For fixed solar panel installations at Graneros, O'Higgins Region, the ideal tilt angle is 28 degrees facing North to maximize total year-round energy production. This angle has been calculated to optimize solar collection across all seasons by accounting for the sun's varying position throughout the year and weighting for actual solar irradiance potential.

Environmental and Weather Challenges

Several local factors in the Graneros area can impact solar energy production and require consideration during installation:

• Dust and Agricultural Particles: The region's agricultural activity and dry climate can lead to dust accumulation on solar panels, reducing efficiency by blocking sunlight
• Seasonal Weather Patterns: Winter months may bring increased cloud cover and precipitation that further reduces the already lower solar output
• Temperature Fluctuations: Extreme temperature variations between seasons can affect panel efficiency and longevity

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove beneficial. Regular cleaning schedules become essential, with automated cleaning systems or easy-access panel mounting helping maintain optimal light transmission throughout dusty periods. Installing panels with adequate ventilation space underneath helps manage temperature effects and prevents overheating during hot summer months. Using high-quality mounting systems designed for the local climate ensures panels maintain their optimal 28-degree North-facing angle despite weather exposure. Consider incorporating micro-inverters or power optimizers to minimize the impact when individual panels experience shading or soiling. Battery storage systems also help capture excess summer production for use during the lower-output winter months, evening out the seasonal energy supply variations.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 115 locations across Chile. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Chile by location

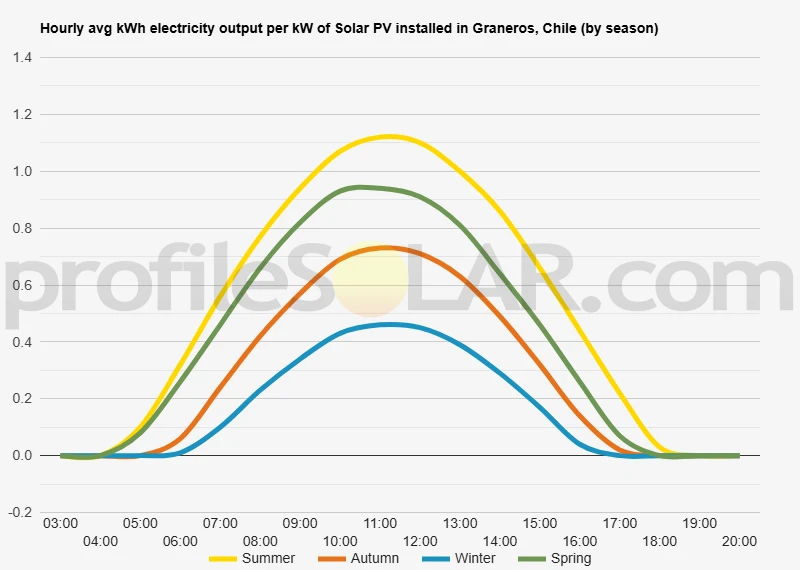

Solar output per kW of installed solar PV by season in Graneros

Seasonal solar PV output for Latitude: -34.0642, Longitude: -70.7369 (Graneros, Chile), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° North in Graneros, Chile

To maximize your solar PV system's energy output in Graneros, Chile (Lat/Long -34.0642, -70.7369) throughout the year, you should tilt your panels at an angle of 28° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Graneros, Chile

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Graneros, Chile. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° North in Summer	38° North in Autumn	49° North in Winter	26° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Graneros, Chile

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Graneros, Chile.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Graneros, Chile

Topography Around Graneros

Graneros sits in the fertile Central Valley of Chile, positioned between the towering Andes Mountains to the east and the lower Coastal Range to the west. The town itself lies at approximately 340 meters above sea level on relatively flat terrain that forms part of the expansive agricultural plain stretching north and south through central Chile. This valley floor consists of gently undulating land with minimal elevation changes, making it ideal for both farming and large-scale infrastructure development.

The landscape immediately surrounding Graneros is characterized by agricultural fields, vineyards, and orchards that take advantage of the rich alluvial soils deposited by the Cachapoal River and its tributaries. The terrain gradually rises as it approaches the foothills of both mountain ranges, with the eastern slopes becoming increasingly steep as they climb toward the Andes peaks. To the west, the land rises more gradually toward the Coastal Range, which reaches moderate elevations compared to the dramatic Andean heights.

Regional Terrain Features

The broader region displays a classic Mediterranean valley configuration, with the Central Valley floor averaging between 300 and 500 meters in elevation. Small hills and ridges occasionally break up the otherwise flat agricultural landscape, while seasonal streams and irrigation channels create minor topographical variations. The valley walls on both sides show evidence of ancient river terraces and alluvial fans where mountain streams have deposited sediments over millennia.

Moving eastward from Graneros, the terrain becomes progressively more mountainous, with deep valleys carved by rivers flowing down from the Andes. These areas feature steep slopes, rocky outcrops, and rugged terrain unsuitable for large-scale development. Westward toward the coast, the topography remains more manageable, with rolling hills and broader valleys that maintain reasonable accessibility.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie on the valley floor extending north and south of Graneros. These areas offer vast expanses of relatively flat terrain with minimal shading from topographical features. The gentle slopes and consistent elevation provide excellent conditions for solar panel arrays while maintaining reasonable construction and maintenance access.

Particularly suitable zones include the agricultural plains stretching toward Rancagua to the north and the flatter sections of the valley floor extending southward. These areas benefit from minimal topographical obstruction while remaining accessible via existing road networks. The consistent elevation and gentle gradients would allow for efficient panel orientation and simplified installation processes.

The slightly elevated terraces on the eastern and western edges of the valley floor also present excellent opportunities for solar development. These areas typically sit above the prime agricultural land, reducing potential conflicts with farming activities, while still maintaining relatively flat terrain and good solar exposure. The elevated positions can actually provide advantages by avoiding potential fog or mist that occasionally settles in the lowest parts of the valley.

Areas to avoid for large-scale solar installations include the steeper slopes approaching both mountain ranges, where terrain becomes too rugged and access becomes problematic. The immediate vicinity of rivers and streams should also be avoided due to potential flooding and the ecological importance of riparian zones. Similarly, the most productive agricultural areas might present land-use conflicts that could complicate development plans.

Chile solar PV Stats as a country

Chile ranks 22nd in the world for cumulative solar PV capacity, with 4,468 total MW's of solar PV installed. This means that 9.10% of Chile's total energy as a country comes from solar PV (that's 5th in the world). Each year Chile is generating 234 Watts from solar PV per capita (Chile ranks 21st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Chile?

Yes, there are several incentives for businesses wanting to install solar energy in Chile. The Chilean government offers a range of financial incentives and tax credits for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the installation of solar panels. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional incentives such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.
