Solar Energy Potential in Huechuraba, Santiago Metropolitan, Chile

Huechuraba, Santiago Metropolitan, Chile, located in the northern part of Santiago in the Southern Sub Tropics, presents a promising location for solar PV energy generation, though with notable seasonal variations. This area experiences significant differences in solar output throughout the year, with the highest production occurring during summer months. The seasonal solar energy production at this location shows a clear pattern. During summer, each kilowatt of installed solar capacity generates an impressive 9.40 kWh per day. This output decreases to 5.22 kWh/day in autumn and reaches its lowest point in winter with only 3.26 kWh/day. Spring sees a substantial recovery with 7.73 kWh/day of production.

Optimal Installation Angle

For fixed solar panel installations in Huechuraba, Santiago Metropolitan, the ideal tilt angle to maximize year-round energy production is 28 degrees facing North. This specific angle has been calculated to optimize solar capture throughout the year, taking into account the location's position in the Southern Hemisphere where north-facing panels receive the most sunlight.

Seasonal Considerations

The substantial difference between summer and winter production (a ratio of nearly 3:1) indicates that Huechuraba experiences pronounced seasonal variations. Summer and spring are clearly the optimal seasons for solar generation, while winter presents challenges with significantly reduced output.

Environmental and Weather Factors

Several environmental factors could potentially impact solar production in Huechuraba:

• Air pollution from the Santiago metropolitan area can reduce solar irradiance reaching panels, particularly during winter months when thermal inversions are common
• Dust accumulation from the semi-arid climate can gradually decrease panel efficiency if not regularly cleaned
• Occasional winter fog in the Santiago basin may temporarily reduce morning production

To mitigate these challenges, solar installations in Huechuraba should incorporate several preventative measures. Regular panel cleaning schedules are essential, particularly before and during the high-production summer months. Installing panels at the recommended 28-degree tilt not only optimizes year-round production but also promotes natural cleaning during rainfall events. Additionally, using high-efficiency panels can help maximize output during the less productive winter months. Despite the winter reduction in output, Huechuraba's location still provides excellent annual solar potential, making it a generally favorable site for solar PV installation with proper system design and maintenance.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 115 locations across Chile. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Chile by location

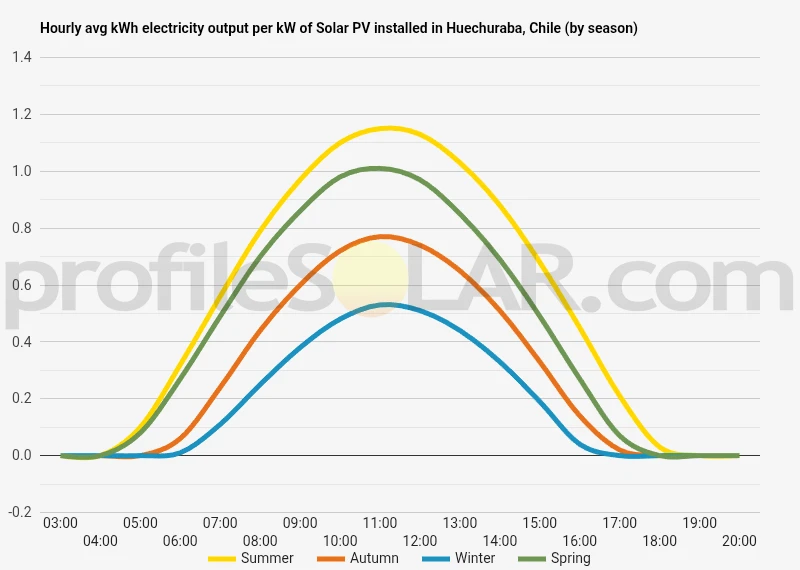

Solar output per kW of installed solar PV by season in Huechuraba

Seasonal solar PV output for Latitude: -33.3574, Longitude: -70.6402 (Huechuraba, Chile), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° North in Huechuraba, Chile

To maximize your solar PV system's energy output in Huechuraba, Chile (Lat/Long -33.3574, -70.6402) throughout the year, you should tilt your panels at an angle of 28° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Huechuraba, Chile

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Huechuraba, Chile. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° North in Summer	38° North in Autumn	49° North in Winter	26° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Huechuraba, Chile

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Huechuraba, Chile.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Huechuraba, Chile

Huechuraba is a commune located in the northern part of the Santiago Metropolitan Region in Chile. The area's topography is characterized by its position in a transitional zone between the Santiago basin and the foothills of the Andes Mountains. This creates a varied landscape with both relatively flat areas and significant elevation changes. The southern portion of Huechuraba features more level terrain that gradually rises as one moves northward toward the imposing Andean foothills. The northern boundary of the commune is defined by the San Cristóbal hill and the Conchalí hills, which form part of the Cordón de Chacabuco mountain range. These hills create a natural barrier and provide a dramatic backdrop to the urban landscape below.

Elevation and Terrain

Elevations in Huechuraba range from approximately 550 meters above sea level in the flatter southern sections to over 1,000 meters in the northern mountainous areas. This elevation gradient creates distinct microclimates within the commune. The terrain consists of a mix of urban development in the lower-lying areas, with more rugged, less developed landscapes in the higher elevations. The commune is intersected by several seasonal streams and drainage channels that flow down from the mountains, creating natural divisions in the landscape. These waterways have historically shaped the development patterns of the area.

Surrounding Regions

Huechuraba is bordered by several other communes of the Santiago Metropolitan Region. To the south lies the more densely urbanized core of Santiago, while to the north and east, the landscape becomes increasingly dominated by the Andean foothills. The western portions connect to the broader central valley of Chile.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several nearby areas present favorable conditions: The northern slopes and plateaus of Huechuraba offer promising locations for solar development due to their elevated position and reduced urban density. These areas receive consistent solar radiation throughout the year, with minimal shadowing from the surrounding topography. The broader plains to the west and northwest of Huechuraba, extending toward Quilicura and Lampa, provide extensive flat terrain that would be ideal for large solar installations. These areas benefit from good solar exposure and fewer topographical barriers. The eastern foothills, while more challenging in terms of terrain, offer south-facing slopes (in the Southern Hemisphere, north-facing slopes receive more direct sunlight) that could be suitable for terraced solar installations.

Topographical Considerations

When evaluating locations for solar PV in this region, several topographical factors must be considered. The mountain ranges surrounding Santiago can create morning fog patterns that occasionally reduce early-day solar efficiency in some lower-lying areas. However, this typically burns off as temperatures rise. The varied elevation also means that some higher areas may experience different wind patterns, which can affect cooling of solar panels and their subsequent efficiency. The moderate slopes found in the transitional zones between the valley floor and mountain foothills often provide an optimal balance of good solar exposure while avoiding excessive wind exposure. The soil composition in the region, primarily consisting of alluvial deposits in the valley areas and more rocky substrates in the foothills, affects foundation requirements for solar installations. The more stable foothill regions may require more initial site preparation but often provide more secure anchoring for solar infrastructure.

Chile solar PV Stats as a country

Chile ranks 22nd in the world for cumulative solar PV capacity, with 4,468 total MW's of solar PV installed. This means that 9.10% of Chile's total energy as a country comes from solar PV (that's 5th in the world). Each year Chile is generating 234 Watts from solar PV per capita (Chile ranks 21st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Chile?

Yes, there are several incentives for businesses wanting to install solar energy in Chile. The Chilean government offers a range of financial incentives and tax credits for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the installation of solar panels. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional incentives such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Chile? Please reach out to us and help us keep this information current. Thanks!
