Isla de Maipo, Chile offers decent solar energy potential for most of the year, though with significant seasonal variation typical of its Southern Sub Tropics location. The area experiences strong summer performance but notably reduced winter output.

Seasonal Solar Performance

The solar energy generation at this location varies dramatically throughout the year. Summer delivers excellent results at 9.40 kWh per day per kW of installed capacity, making it the peak season for solar production. Spring also performs well with 7.73 kWh daily output per kW, representing the second-best season for energy generation. Autumn sees a considerable drop to 5.22 kWh per day per kW, while winter presents the most challenging period with only 3.26 kWh daily per kW. This winter figure represents about one-third of summer production, highlighting the seasonal challenges of this location.

Optimal Installation Configuration

For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 28 degrees facing North. This angle has been calculated to optimize total annual output by accounting for the sun's varying position throughout the year and weighting for actual solar irradiance potential.

Environmental and Weather Challenges

Several local factors can significantly impact solar production at Isla de Maipo and require careful consideration during installation:

• Dust and Agricultural Particles: The location's agricultural surroundings generate dust, pollen, and crop residue that can accumulate on panels
• Seismic Activity: Chile's position along major fault lines requires earthquake-resistant mounting systems
• Wind Exposure: Open terrain can subject installations to strong winds requiring robust structural support
• Temperature Fluctuations: Significant seasonal temperature variations can stress panel materials and connections

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove effective. Regular cleaning schedules become essential, with automated cleaning systems or easy-access designs facilitating maintenance during dusty periods. Seismic considerations require specialized mounting systems engineered for earthquake zones, with flexible connections and reinforced anchoring points. Wind resistance demands proper structural calculations and potentially lower panel mounting heights in exposed areas. Temperature management benefits from adequate ventilation spacing behind panels and high-quality materials rated for wide temperature ranges. Professional installation following local building codes ensures systems can withstand regional environmental stresses while maintaining optimal energy production.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 115 locations across Chile. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Chile by location

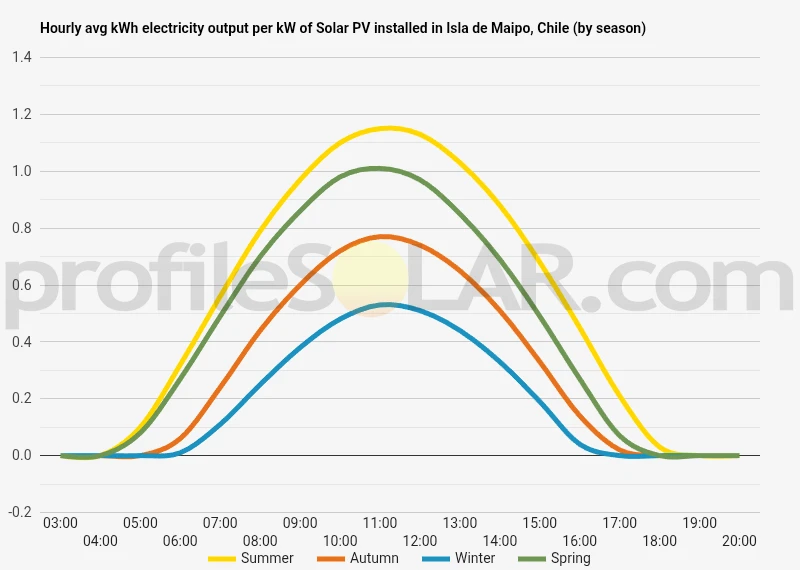

Solar output per kW of installed solar PV by season in Isla De Maipo

Seasonal solar PV output for Latitude: -33.7518, Longitude: -70.8913 (Isla De Maipo, Chile), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° North in Isla De Maipo, Chile

To maximize your solar PV system's energy output in Isla De Maipo, Chile (Lat/Long -33.7518, -70.8913) throughout the year, you should tilt your panels at an angle of 28° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Isla De Maipo, Chile

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Isla De Maipo, Chile. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° North in Summer	38° North in Autumn	49° North in Winter	26° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Isla De Maipo, Chile

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Isla De Maipo, Chile.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Isla De Maipo, Chile

Topographical Features of Isla de Maipo

Isla de Maipo sits in the fertile Central Valley of Chile, approximately 30 kilometers southwest of Santiago. The terrain in this area is characterized by relatively flat to gently rolling agricultural plains that stretch between the coastal mountain range to the west and the towering Andes Mountains to the east. The elevation around Isla de Maipo ranges from about 350 to 500 meters above sea level, creating a gradual slope that drains toward the Maipo River system.

The landscape is dominated by agricultural fields, vineyards, and fruit orchards that take advantage of the region's Mediterranean climate and fertile alluvial soils. The topography is generally open with few natural obstructions, featuring broad expanses of cultivated land interspersed with irrigation channels and farm roads. Small hills and ridges occasionally break up the otherwise gentle terrain, but these elevations are modest and do not create significant shadows or wind barriers.

Surrounding Mountain Ranges and Geographic Context

To the east, the dramatic peaks of the Andes Mountains rise sharply from the valley floor, creating a spectacular backdrop but having minimal impact on the immediate topography around Isla de Maipo due to their distance. The Cordillera de la Costa, or coastal range, forms a lower barrier to the west, with elevations typically between 1,000 and 2,000 meters. These western mountains are much closer to the area and create some orographic effects on weather patterns, but they do not significantly obstruct the valley floor where most development occurs.

The Maipo River and its tributaries have carved the valley over millennia, depositing rich sediments that now support intensive agriculture. This river system creates a natural drainage pattern that flows generally from east to west, eventually reaching the Pacific Ocean. The floodplains and terraces associated with these waterways provide some of the flattest terrain in the region.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be found on the extensive flat agricultural plains that stretch north and south of Isla de Maipo. These areas offer several key advantages including minimal slope variations, excellent accessibility via existing road networks, and proximity to electrical infrastructure that already serves the agricultural operations and nearby urban areas.

Particularly promising zones exist on the elevated terraces above the active floodplains, where the risk of seasonal flooding is minimal but the terrain remains relatively level. The areas to the north toward Melipilla and to the south toward San Antonio present large contiguous parcels of land with gentle topography that would be ideal for solar arrays. These locations benefit from being slightly elevated above the immediate river valleys while maintaining the flat characteristics essential for efficient solar panel installation and maintenance.

The western portions of the valley, closer to the coastal range foothills, also offer suitable terrain for solar development. While there is more topographical variation in these areas, many south-facing slopes could be advantageous for solar collection, and the slightly higher elevations often provide better drainage and reduced fog influence compared to the lower valley areas. The existing agricultural infrastructure in these zones, including roads and electrical connections, would facilitate the development of utility-scale solar projects.

Chile solar PV Stats as a country

Chile ranks 22nd in the world for cumulative solar PV capacity, with 4,468 total MW's of solar PV installed. This means that 9.10% of Chile's total energy as a country comes from solar PV (that's 5th in the world). Each year Chile is generating 234 Watts from solar PV per capita (Chile ranks 21st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Chile?

Yes, there are several incentives for businesses wanting to install solar energy in Chile. The Chilean government offers a range of financial incentives and tax credits for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the installation of solar panels. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional incentives such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Chile? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
