Solar Energy Generation in Melipilla, Santiago Metropolitan, Chile

Melipilla, Santiago Metropolitan, Chile, located in the Southern Sub Tropics at coordinates -33.7004, -71.2162, offers varying conditions for solar PV energy generation throughout the year. The location experiences significant seasonal differences in solar energy production, with summer months being particularly productive. The seasonal solar electricity output shows a clear pattern. In summer, solar panels can generate an impressive 7.87kWh per day for each kW of installed capacity. Spring follows closely with 7.18kWh/day per kW. However, production drops considerably during autumn (4.50kWh/day) and reaches its lowest point in winter (3.17kWh/day).

Optimal Times for Solar Generation

The most productive period for solar energy in Melipilla spans from late spring through summer (approximately November through February in the Southern Hemisphere). During these months, the solar panels operate at peak efficiency, capturing more than 7kWh daily per kW installed. For maximum year-round energy production, fixed solar panels should be installed at a tilt angle of 29 degrees facing North. This specific angle has been calculated to optimize solar collection throughout the entire year, accounting for the Earth's elliptical orbit and Melipilla's specific latitude.

Environmental Considerations

There are several environmental factors that could potentially impact solar production in Melipilla:

• Dust and agricultural particulates: Being in an agricultural region, dust from farming activities can accumulate on panels, reducing efficiency.
• Morning fog: Coastal influence can bring fog in morning hours, particularly in winter months.
• Occasional wildfire smoke in summer: Chile's increasing wildfire events can temporarily reduce solar irradiance.

Preventative Measures

To maximize solar energy production in Melipilla, Santiago Metropolitan, several preventative measures should be considered: Installing automated cleaning systems or scheduling regular manual cleaning can mitigate dust accumulation. Elevating panels slightly higher than standard installations can reduce the impact of morning fog. Additionally, incorporating microinverters or power optimizers rather than string inverters will help minimize production losses during partial shading conditions. The significant seasonal variation (with winter production at only 40% of summer levels) suggests that a slightly steeper panel angle than the calculated 29 degrees might be beneficial if winter production is particularly important. However, this would come at the expense of some summer production.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 115 locations across Chile. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Chile by location

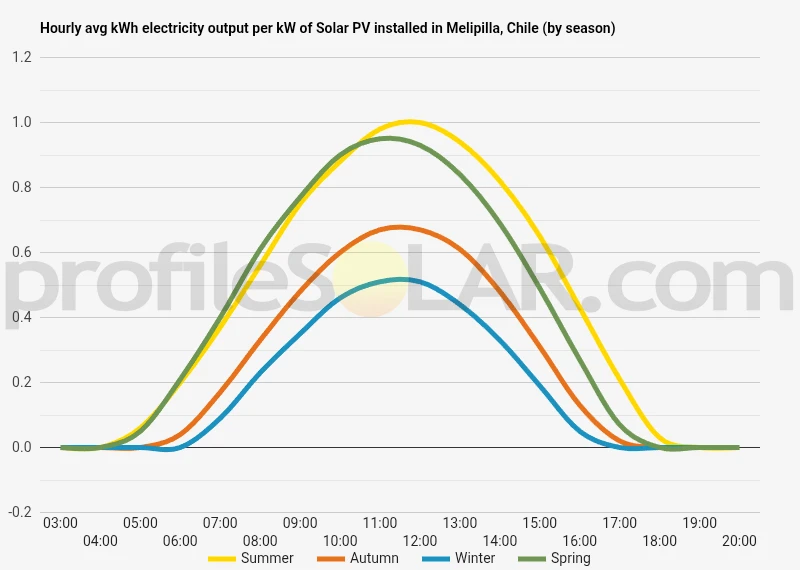

Solar output per kW of installed solar PV by season in Melipilla

Seasonal solar PV output for Latitude: -33.7004, Longitude: -71.2162 (Melipilla, Chile), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° North in Melipilla, Chile

To maximize your solar PV system's energy output in Melipilla, Chile (Lat/Long -33.7004, -71.2162) throughout the year, you should tilt your panels at an angle of 29° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Melipilla, Chile

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Melipilla, Chile. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° North in Summer	39° North in Autumn	49° North in Winter	27° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Melipilla, Chile

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Melipilla, Chile.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Melipilla, Chile

Melipilla, Chile sits in a region characterized by diverse and dynamic topography, nestled between the coastal ranges and the foothills of the Andes Mountains. The city itself is positioned in a valley within the central Chilean depression, with an elevation of approximately 170 meters above sea level. This inland location places it in what's known as Chile's Central Valley (Valle Central), a fertile agricultural region that runs north-south between the coastal mountains and the Andean range. The surrounding landscape features rolling hills that gradually rise toward the east, eventually becoming the more dramatic Andean foothills. To the west, the terrain undulates toward the coastal mountain range (Cordillera de la Costa), which separates the central valley from the Pacific Ocean. These coastal mountains, while not as imposing as the Andes, create significant topographical variation with elevations typically ranging from 500 to 2,000 meters.

Topographical Features

The immediate vicinity of Melipilla includes agricultural plains interspersed with gentle hills. The Maipo River runs to the north of the city, carving a valley that has shaped the local topography over millennia. This river system has created alluvial plains that are relatively flat compared to the surrounding terrain. As one moves east from Melipilla toward Santiago, the landscape gradually increases in elevation and becomes more rugged, transitioning into the pre-Andean zone. To the west, the coastal range presents a series of north-south oriented ridges and valleys before eventually reaching the Pacific coast approximately 40 kilometers away. The climate in this region is Mediterranean, with distinct seasonal patterns that influence the landscape. The combination of moderate rainfall and seasonal dry periods has shaped a terrain that naturally supports drought-resistant vegetation in the hills while allowing for intensive agriculture in the valleys.

Ideal Areas for Solar PV Development

For large-scale solar photovoltaic installations, several areas in proximity to Melipilla offer favorable conditions based on topographical considerations: The gently sloping plains to the west and southwest of Melipilla present some of the most suitable terrain for extensive solar installations. These areas benefit from relatively flat topography that minimizes site preparation costs while offering good exposure to the northern sky (important in the Southern Hemisphere for maximizing solar radiation capture). The elevated plateaus found in the coastal range, particularly those facing north and northeast, represent another promising option. While these locations may require more significant site preparation due to their more varied terrain, they often experience reduced fog compared to locations closer to the coast, resulting in more consistent solar exposure. Areas along the eastern margins of Melipilla municipality, where the terrain begins to rise toward the Andean foothills, offer a combination of good solar exposure and proximity to existing transmission infrastructure that connects to Santiago. These locations typically feature south-north oriented slopes that can be advantageous for solar panel placement. The relatively flat agricultural lands in the vicinity of the Maipo River valley, particularly those with marginal agricultural productivity, could be repurposed for solar development. These areas already have access to transportation infrastructure and are often near existing power distribution networks. It's worth noting that while the coastal regions west of the coastal mountain range receive abundant sunshine, they frequently experience morning fog that can reduce overall energy production. The inland areas around Melipilla generally avoid this limitation while still benefiting from the clear skies characteristic of central Chile's climate. The combination of moderate elevation, minimal cloud cover during much of the year, and varied terrain options makes the broader Melipilla region well-suited for solar energy development, with particular promise in the western plains and eastern foothills where topographical conditions align with solar resource quality and infrastructure access.

Chile solar PV Stats as a country

Chile ranks 22nd in the world for cumulative solar PV capacity, with 4,468 total MW's of solar PV installed. This means that 9.10% of Chile's total energy as a country comes from solar PV (that's 5th in the world). Each year Chile is generating 234 Watts from solar PV per capita (Chile ranks 21st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Chile?

Yes, there are several incentives for businesses wanting to install solar energy in Chile. The Chilean government offers a range of financial incentives and tax credits for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the installation of solar panels. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional incentives such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Chile? Please reach out to us and help us keep this information current. Thanks!
