Port Montt, Los Lagos Region, Chile, located in the Southern Temperate Zone at coordinates -41.4709, -72.9436, presents a challenging location for year-round solar energy generation due to extreme seasonal variations in solar output.

Seasonal Solar Performance

The solar energy production at this location varies dramatically throughout the year. Summer delivers the strongest performance at 7.84 kWh per day per kW of installed solar capacity, making it an excellent time for solar generation. Spring provides moderate output at 5.31 kWh per day per kW, offering decent energy production during this transitional season. However, the location faces significant challenges during cooler months. Autumn drops considerably to just 3.36 kWh per day per kW, while winter presents the most difficult conditions with only 1.79 kWh per day per kW of production. This represents less than a quarter of summer's output, creating substantial seasonal energy gaps. For fixed panel installations at Port Montt, Los Lagos Region, the optimal tilt angle is 34 degrees facing north to maximize total year-round solar production. This angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance potential.

Local Factors Affecting Solar Production

Several environmental and weather factors in Port Montt can significantly impact solar energy generation:

• Marine climate and frequent cloud cover: The coastal location brings persistent overcast conditions, particularly during autumn and winter months
• High precipitation: The region experiences substantial rainfall throughout the year, reducing solar irradiance
• Volcanic ash: Nearby active volcanoes can deposit ash on solar panels, blocking sunlight
• Salt air corrosion: The marine environment accelerates corrosion of metal components
• Strong winds: Coastal weather patterns can damage improperly secured installations

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented: Regular cleaning systems are essential, including automated washing mechanisms or easy-access designs for manual cleaning to remove volcanic ash, salt deposits, and general debris. Anti-corrosion treatments and marine-grade materials should be used for all metal components, including galvanized or stainless steel mounting systems and protective coatings on electrical connections. Robust mounting systems designed for high wind loads will prevent structural damage during storms. Installing panels with adequate drainage and ventilation helps prevent moisture buildup that could damage electrical components. Battery storage systems become particularly valuable at this location to store excess energy generated during productive summer months for use during the low-output winter period. This helps balance the extreme seasonal variations in solar production.

Note: The Southern Temperate Zone extends from -35° latitude South down to -66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 115 locations across Chile. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Chile by location

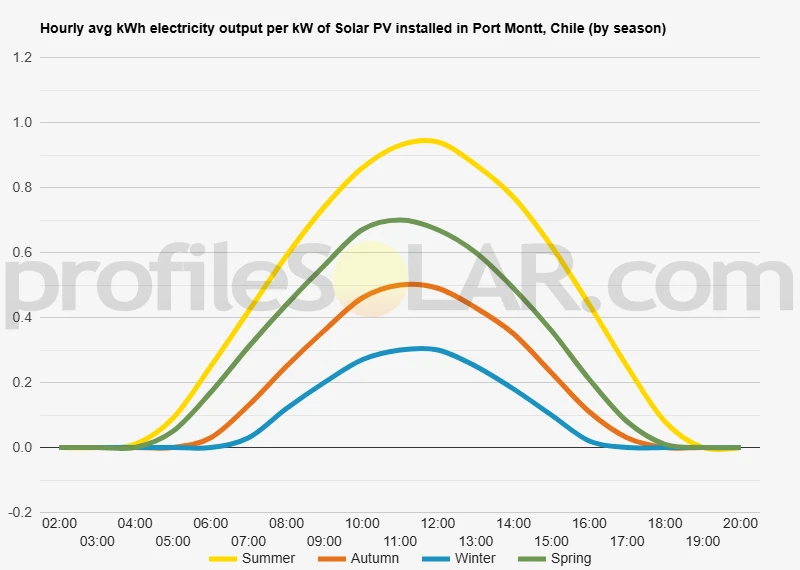

Solar output per kW of installed solar PV by season in Port Montt

Seasonal solar PV output for Latitude: -41.4709, Longitude: -72.9436 (Port Montt, Chile), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° North in Port Montt, Chile

To maximize your solar PV system's energy output in Port Montt, Chile (Lat/Long -41.4709, -72.9436) throughout the year, you should tilt your panels at an angle of 34° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Port Montt, Chile

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Port Montt, Chile. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° North in Summer	45° North in Autumn	56° North in Winter	34° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Port Montt, Chile

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Port Montt, Chile.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Port Montt, Chile

Topography Around Puerto Montt

Puerto Montt sits in a dramatically varied landscape where the Chilean Andes meet the Pacific Ocean. The city itself is positioned on relatively flat to gently rolling terrain near sea level, but the surrounding region presents a complex topographical picture that ranges from coastal plains to towering volcanic peaks. To the east of Puerto Montt, the landscape rises steadily toward the Andes Mountains, creating a series of foothills and valleys. This eastern region features numerous volcanic formations, including the prominent Osorno and Calbuco volcanoes, which dominate the skyline. The terrain becomes increasingly steep and mountainous as it approaches these peaks, with elevations climbing from sea level to over 2,000 meters within a relatively short distance. The western areas toward the Pacific coast consist of lower-lying terrain with gentle hills and coastal plains. This region includes numerous islands and peninsulas that form part of the complex fjord system characteristic of southern Chile. The Reloncaví Sound creates intricate waterways that fragment the landscape into a series of land masses separated by deep channels. North and south of Puerto Montt, the topography follows similar patterns, with coastal lowlands giving way to increasingly mountainous terrain inland. The region is heavily forested, particularly in areas with higher elevation and greater rainfall. Numerous rivers and streams flow westward from the Andes toward the Pacific, creating valleys that cut through the landscape.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Puerto Montt would be found in the flatter coastal plains and gentle hills to the west and northwest of the city. These areas offer the necessary flat to moderately sloped terrain that makes construction and maintenance of solar arrays both feasible and cost-effective. The coastal lowlands provide several advantages for solar development beyond their favorable topography. These areas typically have less dense forest coverage compared to the mountainous regions, reducing the environmental impact and cost of land clearing. Additionally, the relatively stable ground conditions in these lower-elevation areas would support the foundation requirements for large solar installations. Areas along the northern approaches to Puerto Montt, where the terrain remains relatively flat before beginning its ascent toward the Andes, present another promising option. These locations would benefit from good accessibility via existing transportation infrastructure while maintaining the topographical characteristics necessary for efficient solar array placement. The valleys that extend eastward from the city, particularly those with gentler gradients, could also accommodate solar installations, though the increasing elevation and potential for more frequent cloud cover at higher altitudes would need careful consideration. These valley locations might be particularly suitable for smaller-scale installations that could take advantage of south-facing slopes while avoiding the steepest terrain. Coastal areas to the south of Puerto Montt, where the landscape remains relatively subdued before the dramatic rise of the Andes, offer additional potential sites. These locations would need to balance the benefits of flatter terrain against factors such as proximity to existing electrical grid infrastructure and transportation networks necessary for construction and ongoing maintenance operations.

Chile solar PV Stats as a country

Chile ranks 22nd in the world for cumulative solar PV capacity, with 4,468 total MW's of solar PV installed. This means that 9.10% of Chile's total energy as a country comes from solar PV (that's 5th in the world). Each year Chile is generating 234 Watts from solar PV per capita (Chile ranks 21st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Chile?

Yes, there are several incentives for businesses wanting to install solar energy in Chile. The Chilean government offers a range of financial incentives and tax credits for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the installation of solar panels. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional incentives such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Chile? Please reach out to us and help us keep this information current. Thanks!
