Puerto Natales, Region of Magallanes, Chile presents a challenging location for year-round solar PV energy generation, with significant seasonal variations in output. This southern Chilean city experiences dramatic differences between summer and winter solar production capabilities.

Seasonal Solar Production

Solar panels in Puerto Natales would produce their highest output during the summer months, generating a respectable 5.69 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 4.35 kWh/day per kW installed. However, productivity drops substantially during autumn to just 2.24 kWh/day, and plummets to a minimal 1.00 kWh/day during the winter months.

This stark seasonal contrast means that supplementary energy sources would be essential during the lower-production periods, particularly in winter when output is less than one-fifth of summer capacity.

Optimal Panel Installation

For fixed solar panel installations in Puerto Natales, Region of Magallanes, the ideal tilt angle to maximize year-round energy production is 44 degrees facing North. This specific angle optimizes the capture of available sunlight throughout the year, balancing the seasonal variations in sun position and intensity.

Environmental and Weather Challenges

Several significant factors can impede solar production in this location:

• Strong Patagonian winds that can damage panels or mounting systems
• Frequent cloud cover and precipitation, particularly during winter months
• Potential snow accumulation that can block panels
• Salt spray exposure for installations near the coast
• Dust and volcanic ash from nearby Andean volcanic activity

Preventative Measures

To maximize solar energy production despite these challenges, several installation strategies can be employed:

• Use robust mounting systems with wind-resistant designs rated for Patagonian conditions
• Install automatic or manual snow removal systems for winter months
• Consider slightly steeper panel angles in snow-prone areas to promote natural shedding
• Implement regular cleaning schedules to remove salt deposits, dust, and ash
• Use marine-grade components and protective coatings for corrosion resistance
• Install micro-inverters or power optimizers to minimize production losses from partial shading

Given the extreme seasonal variation, a hybrid energy system incorporating wind power (which is abundant in Patagonia) or other renewable sources would be advisable to ensure consistent year-round energy availability.

Note: The Southern Temperate Zone extends from -35° latitude South down to -66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 115 locations across Chile. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Chile by location

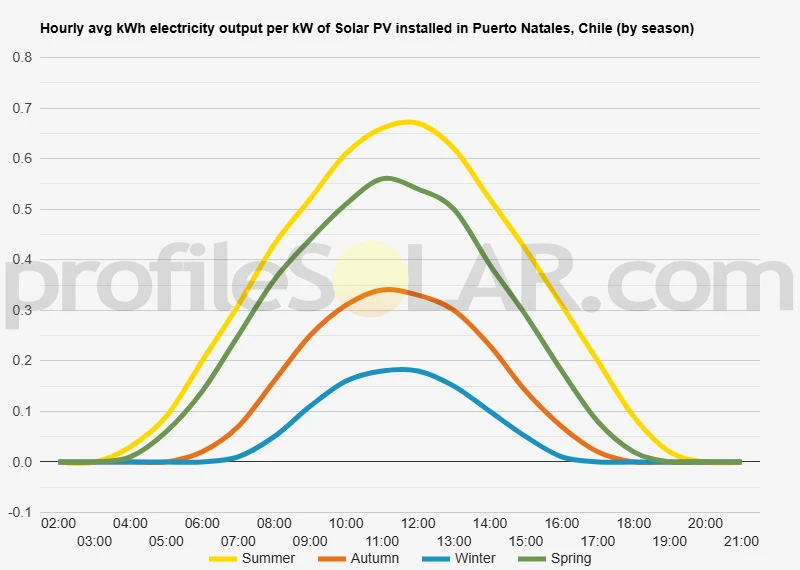

Solar output per kW of installed solar PV by season in Puerto Natales

Seasonal solar PV output for Latitude: -51.7333, Longitude: -72.5167 (Puerto Natales, Chile), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° North in Puerto Natales, Chile

To maximize your solar PV system's energy output in Puerto Natales, Chile (Lat/Long -51.7333, -72.5167) throughout the year, you should tilt your panels at an angle of 44° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Puerto Natales, Chile

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Puerto Natales, Chile. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° North in Summer	55° North in Autumn	65° North in Winter	44° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Puerto Natales, Chile

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Puerto Natales, Chile.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Puerto Natales, Chile

Puerto Natales is situated in Chilean Patagonia, nestled between the Andes Mountains and the Pacific Ocean. The topography surrounding this southern Chilean town is characterized by dramatic contrasts and stunning natural features that make it one of the most visually striking regions in South America.

Mountain Ranges and Valleys

The eastern horizon of Puerto Natales is dominated by the majestic Andes Mountains, which form a spectacular backdrop to the town. The mountains here are not the towering peaks found further north in Chile but are nonetheless impressive, with jagged profiles and snow-capped summits for much of the year. These mountains are part of the southern Patagonian range, which includes the famous Torres del Paine formations located approximately 80 kilometers to the north. Between the mountain ranges lie broad, windswept valleys that were carved by ancient glacial activity. These valleys feature relatively flat terrain with gentle undulations, covered predominantly with Patagonian steppe vegetation—low-growing grasses and shrubs adapted to the harsh climate.

Coastal Features

To the west, Puerto Natales sits on the eastern shore of the Señoret Channel, which connects to the larger network of fjords and channels that characterize the fragmented coastline of southern Chile. The town itself is positioned on a relatively flat coastal plain that rises gradually toward the east. This coastal area includes numerous inlets, bays, and small peninsulas, creating a complex shoreline topography.

Lakes and Wetlands

The region surrounding Puerto Natales contains several significant bodies of water. Notable among these is Última Esperanza Sound, the fjord on which the town is situated. Further inland, there are numerous glacial lakes of varying sizes, with the largest being Lago Porteño and Lago Sofía to the north. These lakes occupy depressions formed by glacial erosion and are often surrounded by steep slopes or bluffs. Wetland areas are scattered throughout the lower elevations, particularly in the transition zones between the mountains and the coast. These wetlands support diverse ecosystems and contribute to the region's hydrological systems.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several areas around Puerto Natales offer favorable conditions: The eastern steppe regions present the most promising locations for solar development. These areas feature relatively flat terrain with minimal shading from mountains, particularly in locations 15-30 kilometers east of the town where the landscape opens up into broader plains. The elevation gradually increases here, potentially reducing some atmospheric interference and cloud cover effects. The northern plains between Puerto Natales and Torres del Paine National Park also offer suitable topography for solar installations. These areas have adequate flat or gently sloping terrain that would minimize grading requirements for large-scale projects. The open exposure allows for maximum solar radiation capture throughout the day. Some of the elevated plateaus to the northeast of the town provide another option. While requiring more initial site preparation due to their more varied terrain, these locations benefit from excellent exposure and reduced fog incidence compared to areas closer to the coast. It's important to note that the coastal areas immediately surrounding Puerto Natales are less ideal for solar development due to increased cloud cover and fog from the maritime influence. Similarly, the western regions toward the Pacific coast experience significantly higher precipitation and cloud cover, making them poorly suited for solar energy generation. The mountainous areas, while receiving good solar radiation at higher elevations, present prohibitive installation challenges due to their steep slopes, difficult access, and environmental sensitivity, with many being protected within national parks or reserves.

Chile solar PV Stats as a country

Chile ranks 22nd in the world for cumulative solar PV capacity, with 4,468 total MW's of solar PV installed. This means that 9.10% of Chile's total energy as a country comes from solar PV (that's 5th in the world). Each year Chile is generating 234 Watts from solar PV per capita (Chile ranks 21st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Chile?

Yes, there are several incentives for businesses wanting to install solar energy in Chile. The Chilean government offers a range of financial incentives and tax credits for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the installation of solar panels. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional incentives such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Chile? Please reach out to us and help us keep this information current. Thanks!
