Rancagua, O'Higgins Region, Chile, located at latitude -34.1703 and longitude -70.7406 in the Southern Sub Tropics, presents a variable environment for solar PV energy generation throughout the year. The solar energy production at this location shows significant seasonal fluctuations, with the highest output occurring during summer months.

Seasonal Solar Production

The solar energy generation potential in Rancagua follows a predictable seasonal pattern. During summer, solar panels can produce an impressive 9.20 kWh per day for each kilowatt of installed capacity. This production drops considerably to 5.01 kWh/day during autumn, reaching its lowest point in winter at just 2.91 kWh/day. As spring arrives, production rises again to 7.31 kWh/day.

This pattern indicates that Rancagua experiences strong solar potential during summer and spring, with more limited production during autumn and particularly winter. The summer output is more than three times the winter production, showing the significant seasonal variation at this location.

Optimal Panel Installation

For fixed solar panel installations in Rancagua, O'Higgins Region, the ideal tilt angle to maximize year-round energy production is 29 degrees facing North. This angle has been calculated to optimize the annual solar energy capture considering the location's specific latitude and seasonal solar patterns.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Rancagua:

• Dust and particulate matter: The semi-arid climate of central Chile can lead to dust accumulation on panels, reducing efficiency.
• Winter fog and cloud cover: The Central Valley of Chile, where Rancagua is located, can experience morning fog during winter months, further reducing the already lower winter production.
• Potential for hail in storm seasons, which could damage panels if severe.
• Temperature extremes: While not as severe as some locations, summer temperatures can reduce panel efficiency slightly.

Preventative Measures

To mitigate these environmental challenges and maximize solar production in Rancagua, O'Higgins Region, several practical measures can be implemented:

• Regular cleaning schedule, especially during drier months when dust accumulation is highest
• Installing panels with anti-reflective coatings to improve performance during foggy conditions
• Using hail-resistant panels with tempered glass for protection against occasional storms
• Ensuring adequate ventilation behind panels to reduce temperature-related efficiency losses
• Considering seasonal adjustment of panel angles if feasible, or dual-axis tracking systems for installations where maximum yield is critical

With these considerations addressed, Rancagua can be a good location for solar PV installation, particularly for systems designed to capitalize on the excellent summer and spring production while accommodating the significant winter reduction.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 115 locations across Chile. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Chile by location

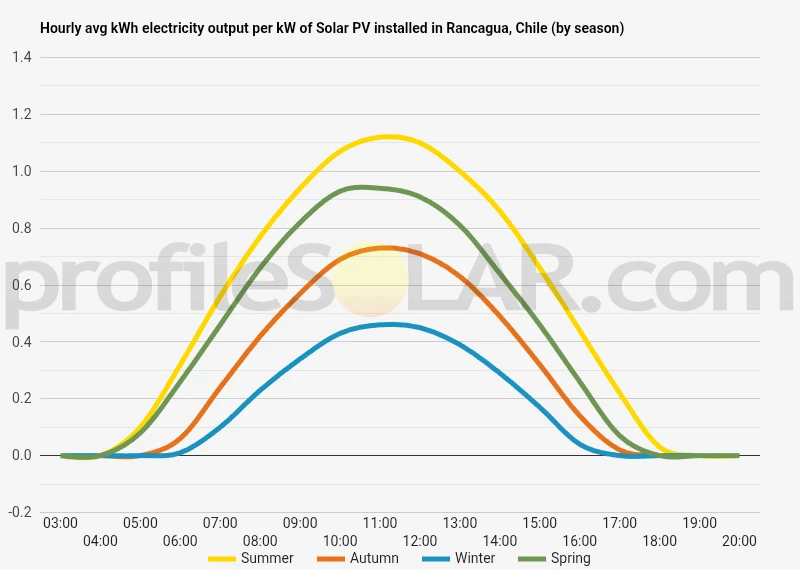

Solar output per kW of installed solar PV by season in Rancagua

Seasonal solar PV output for Latitude: -34.1703, Longitude: -70.7406 (Rancagua, Chile), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° North in Rancagua, Chile

To maximize your solar PV system's energy output in Rancagua, Chile (Lat/Long -34.1703, -70.7406) throughout the year, you should tilt your panels at an angle of 29° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rancagua, Chile

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rancagua, Chile. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° North in Summer	39° North in Autumn	50° North in Winter	26° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rancagua, Chile

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rancagua, Chile.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rancagua, Chile

Rancagua sits in the fertile Central Valley of Chile, nestled between two major mountain ranges that define the topography of the region. To the east rise the impressive Andes Mountains, creating a dramatic backdrop with snow-capped peaks that can reach over 6,000 meters in elevation. To the west lies the smaller but significant Chilean Coastal Range, which separates the valley from the Pacific Ocean. The city itself is situated on relatively flat terrain at an elevation of approximately 500 meters above sea level. This location in the Central Valley (also known as the Valle Central or Depresión Intermedia) provides Rancagua with a relatively level landscape that gradually slopes upward as one moves eastward toward the Andean foothills.

The Central Valley

The immediate area around Rancagua features gently rolling plains that have been extensively developed for agriculture, particularly fruit orchards and vineyards. The Cachapoal River flows near the city, contributing to the agricultural fertility of the region. This valley floor has a generally flat to slightly undulating character, with rich alluvial soils deposited over centuries. As one moves away from the city center, the terrain begins to show more variation, with small hills and depressions creating a mosaic of microclimates. The valley floor extends approximately 40-50 kilometers from east to west before encountering the more pronounced topography of the mountain ranges on either side.

The Andean Foothills

The eastern margins of Rancagua gradually transition into the foothills of the Andes Mountains. These foothills present increasingly steep terrain with numerous valleys, ridges, and plateaus. The elevation rises steadily as one moves eastward, with the landscape becoming more rugged and dramatic. This transitional zone between the valley and high mountains features complex topography with varying slopes and aspects.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, several areas near Rancagua present favorable conditions based on their topographical characteristics: The eastern portions of the Central Valley offer ideal conditions for solar development. These areas feature relatively flat terrain with minimal shading from mountains during morning periods. The gentle slopes that face northward (which in the Southern Hemisphere receive maximum solar radiation) would be particularly advantageous for solar panel placement. The lower elevation foothills to the east of Rancagua also present opportunities for solar development. These areas benefit from reduced fog and cloud cover compared to the central valley floor. Certain elevated plateaus in the foothills provide excellent exposure to solar radiation throughout the day while avoiding the extreme conditions of higher elevations. The northern portions of the Cachapoal Province, where the terrain remains relatively flat but slightly elevated above the valley floor, would be suitable for large installations. These areas typically experience less agricultural development than the fertile central valley directly surrounding Rancagua. Areas to avoid would include the steeper eastern slopes where shading becomes a significant issue, densely vegetated regions that would require extensive clearing, and prime agricultural lands in the valley center where land-use conflicts might arise. The transitional zones between the valley floor and the western coastal range also merit consideration for solar development. These areas often feature slightly elevated terrain with good exposure to the sun and less intensive agricultural use than the central valley. In terms of practical development considerations, the relatively well-developed infrastructure around Rancagua, including road networks and proximity to transmission lines, enhances the feasibility of solar projects in this region. The moderate elevation of the valley and foothills also means installations would avoid the extreme weather conditions that can affect higher elevation sites in the Andes.

Chile solar PV Stats as a country

Chile ranks 22nd in the world for cumulative solar PV capacity, with 4,468 total MW's of solar PV installed. This means that 9.10% of Chile's total energy as a country comes from solar PV (that's 5th in the world). Each year Chile is generating 234 Watts from solar PV per capita (Chile ranks 21st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Chile?

Yes, there are several incentives for businesses wanting to install solar energy in Chile. The Chilean government offers a range of financial incentives and tax credits for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the installation of solar panels. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional incentives such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Chile? Please reach out to us and help us keep this information current. Thanks!
