Rengo, O'Higgins Region, Chile presents a moderately good location for year-round solar PV energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location shows substantial fluctuation throughout the year. Summer delivers the strongest performance at 9.20kWh per day per kW of installed capacity, making it an excellent period for solar generation. Spring also provides good returns at 7.31kWh per day per kW, offering another productive season for energy production. However, the location experiences notable challenges during cooler months. Autumn production drops to 5.01kWh per day per kW, while winter presents the most significant limitation with only 2.91kWh per day per kW of output. This dramatic seasonal swing means solar systems will generate more than three times as much energy in summer compared to winter.

Optimal Installation Configuration

For maximum year-round energy production at Rengo, O'Higgins Region, fixed solar panels should be tilted at 29 degrees facing North. This angle has been calculated to optimize total annual output by accounting for the sun's varying position throughout the year and weighting for daily solar potential based on actual irradiance data.

Environmental and Weather Factors

Several local factors could potentially impact solar energy production at this location:

• Dust and Agricultural Particles: Rengo's location in Chile's agricultural heartland means panels may accumulate dust, pollen, and other airborne particles that reduce efficiency
• Seasonal Weather Patterns: Winter months may bring increased cloud cover and precipitation that further reduces the already limited winter solar output
• Temperature Effects: Hot summer temperatures can reduce panel efficiency despite high solar irradiance

Preventative Measures for Better Performance

To maximize energy production despite these challenges, several installation strategies should be considered. Regular cleaning schedules become particularly important in this agricultural environment, with monthly panel washing recommended during dusty periods and after harvest seasons. Installing panels with adequate ventilation spacing helps combat efficiency losses from high temperatures during peak summer months. Consider mounting systems that allow airflow beneath panels to keep them cooler. For the significant winter production drop, battery storage systems or grid-tie arrangements become essential for year-round energy security. The large seasonal variation makes this location better suited for grid-connected systems rather than off-grid installations unless substantial battery backup is included. Overall, while Rengo offers decent solar potential, the pronounced seasonal variation and local environmental factors require careful system design and maintenance planning to achieve optimal results.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 115 locations across Chile. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Chile by location

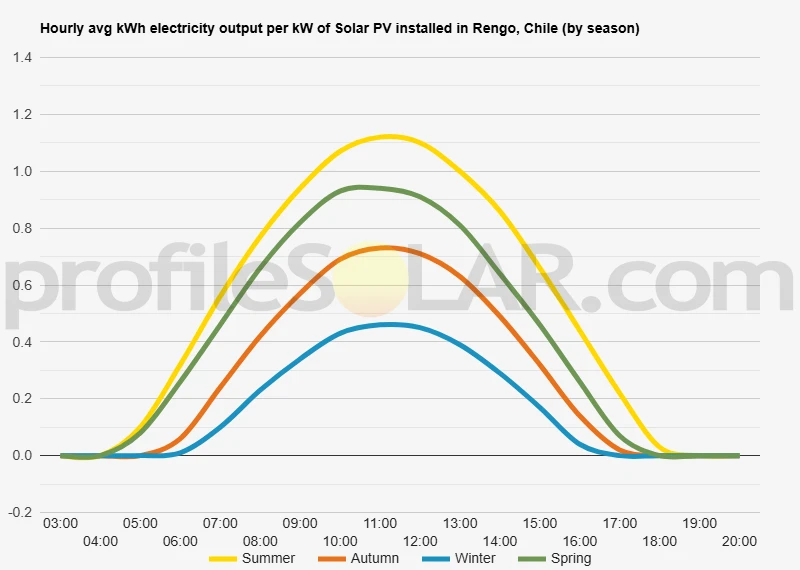

Solar output per kW of installed solar PV by season in Rengo

Seasonal solar PV output for Latitude: -34.4064, Longitude: -70.8583 (Rengo, Chile), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° North in Rengo, Chile

To maximize your solar PV system's energy output in Rengo, Chile (Lat/Long -34.4064, -70.8583) throughout the year, you should tilt your panels at an angle of 29° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rengo, Chile

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rengo, Chile. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° North in Summer	39° North in Autumn	50° North in Winter	27° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rengo, Chile

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rengo, Chile.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rengo, Chile

Topographical Features Around Rengo

Rengo sits in the heart of Chile's Central Valley, positioned between two major mountain ranges that define the country's dramatic landscape. To the east, the towering Andes Mountains rise sharply from the valley floor, creating a spectacular backdrop of snow-capped peaks and steep slopes. These mountains reach elevations exceeding 4,000 meters and form a natural barrier between Chile and Argentina. To the west, the coastal mountain range presents a more modest but still significant topographical feature, with rolling hills and ridges that separate the Central Valley from the Pacific Ocean.

The immediate area around Rengo is characterized by relatively flat to gently undulating terrain typical of the Central Valley's fertile plains. This region has been shaped by centuries of sediment deposition from rivers flowing down from the Andes, creating expansive areas of level ground interrupted by occasional low hills and river terraces. The Cachapoal River flows through the region, carving shallow valleys and creating small floodplains that add subtle variation to the otherwise uniform topography.

The elevation around Rengo ranges from approximately 400 to 600 meters above sea level, with the terrain gradually rising toward both mountain ranges. The valley floor itself maintains a gentle gradient, sloping almost imperceptibly from east to west as it follows the natural drainage pattern toward the Pacific Ocean. This consistent elevation and minimal slope variation make the area highly suitable for large-scale development projects.

Optimal Areas for Solar Development

The expansive flat areas immediately surrounding Rengo present excellent opportunities for large-scale solar photovoltaic installations. These level plains offer minimal grading requirements and provide unobstructed views of the sky, essential for maximizing solar energy capture throughout the day. The agricultural lands that dominate the valley floor could potentially be converted or utilized for solar farms, particularly in areas where farming may be less intensive or economically viable.

The gently sloping terrain to the east and west of the town center would be particularly advantageous for solar installations. These areas combine the benefits of stable, well-drained ground with optimal orientation possibilities. South-facing slopes, while gentle, could provide ideal positioning for solar panels in the Southern Hemisphere, where north-facing installations capture the most direct sunlight.

Areas closer to the foothills of both mountain ranges, while slightly more elevated, remain relatively flat and could serve as prime locations for solar development. These zones benefit from good drainage, stable geological conditions, and distance from prime agricultural land. The consistent topography means that large solar arrays could be installed with minimal terrain modification, reducing construction costs and environmental impact.

The river terraces and elevated plains between Rengo and the surrounding hills offer additional suitable sites. These areas typically feature well-consolidated soils and gentle gradients that facilitate both construction and maintenance access. The natural elevation provides good drainage while maintaining the flat characteristics necessary for efficient solar panel installation and optimal energy production throughout the year.

Chile solar PV Stats as a country

Chile ranks 22nd in the world for cumulative solar PV capacity, with 4,468 total MW's of solar PV installed. This means that 9.10% of Chile's total energy as a country comes from solar PV (that's 5th in the world). Each year Chile is generating 234 Watts from solar PV per capita (Chile ranks 21st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Chile?

Yes, there are several incentives for businesses wanting to install solar energy in Chile. The Chilean government offers a range of financial incentives and tax credits for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the installation of solar panels. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional incentives such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Chile? Please reach out to us and help us keep this information current. Thanks!
