San Antonio, Región de Valparaíso, Chile, located in the Southern Sub Tropics at coordinates -33.5947, -71.6075, presents a moderately favorable location for year-round solar photovoltaic energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy production at this location shows significant seasonal fluctuation. Summer delivers the highest output at 7.87 kWh per day per kW of installed solar capacity, making it the peak production season. Spring follows closely with 7.18 kWh per day per kW, representing nearly equivalent performance to summer months. However, the location experiences substantial drops in solar generation during cooler months. Autumn production falls to 4.50 kWh per day per kW, while winter sees the lowest output at just 3.17 kWh per day per kW of installed capacity. The most productive periods for solar generation at San Antonio are clearly the warmer months of spring and summer, when daily output can be more than double that of winter production. This seasonal variation means that solar installations here work best when paired with battery storage systems or grid-tie arrangements to balance the significant winter production shortfall.

Optimal Panel Configuration

For maximum year-round energy production at this San Antonio location, solar panels should be installed at a fixed tilt angle of 29 degrees facing North. This optimal angle is calculated by analyzing daily solar elevation angles at this specific latitude, determining daily optimal panel positioning, and weighting these angles according to solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Local Environmental Factors

Several environmental and weather factors at this coastal Chilean location can significantly impact solar energy production and require specific preventative measures during installation. Marine Salt Exposure: San Antonio's proximity to the Pacific Ocean means solar installations face constant exposure to salt-laden air. Salt accumulation on panel surfaces reduces light transmission and can cause long-term corrosion of mounting hardware and electrical connections. Installing panels with marine-grade aluminum frames and stainless steel mounting components helps combat this issue. Regular cleaning schedules become essential, with panels requiring washing every 4-6 weeks rather than the typical quarterly cleaning inland locations might need. Coastal Fog and Marine Layer: The location experiences frequent morning fog and marine layer conditions, particularly during winter months when solar production is already at its lowest. This atmospheric moisture can significantly reduce solar irradiance during early morning hours and can persist well into the day during certain weather patterns. While this cannot be prevented, positioning panels to maximize exposure during peak midday sun hours becomes more critical. Ensuring panels are mounted high enough to clear local obstacles and potential fog pooling areas can help minimize these impacts. Wind and Storm Exposure: Coastal locations face higher wind speeds and potential storm damage from Pacific weather systems. Solar installations require robust mounting systems rated for higher wind loads than typical inland installations. Using reinforced mounting rails, additional attachment points, and wind-deflecting panel arrangements can help protect the investment from weather damage. Humidity and Condensation: High humidity levels can cause condensation issues in electrical components and junction boxes. Installing solar equipment with higher IP (Ingress Protection) ratings and ensuring proper ventilation around inverters and electrical connections helps prevent moisture-related failures that could interrupt power production.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 115 locations across Chile. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Chile by location

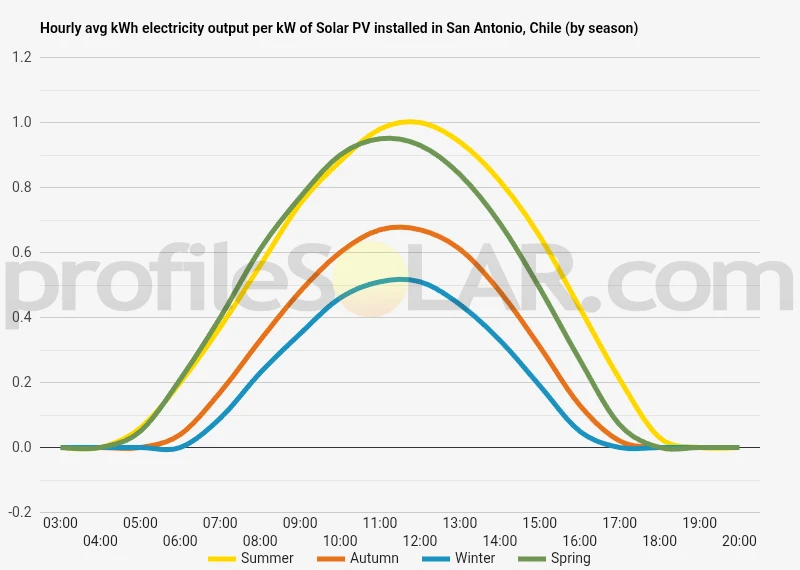

Solar output per kW of installed solar PV by season in San Antonio

Seasonal solar PV output for Latitude: -33.5947, Longitude: -71.6075 (San Antonio, Chile), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° North in San Antonio, Chile

To maximize your solar PV system's energy output in San Antonio, Chile (Lat/Long -33.5947, -71.6075) throughout the year, you should tilt your panels at an angle of 29° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for San Antonio, Chile

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in San Antonio, Chile. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° North in Summer	39° North in Autumn	49° North in Winter	27° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in San Antonio, Chile

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in San Antonio, Chile.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around San Antonio, Chile

Topographical Features of San Antonio, Chile

San Antonio sits along Chile's central coast, positioned where the rolling coastal hills meet the Pacific Ocean. The immediate area around the city features a relatively flat coastal plain that extends inland for several kilometers before giving way to more pronounced topographical variations. This coastal terrace provides stable, level ground that has made it an ideal location for port facilities and urban development.

Moving eastward from the coastline, the terrain gradually rises through a series of gentle hills and undulating valleys. These coastal foothills are part of the broader Cordillera de la Costa mountain range, though in this region they present as modest elevations rather than dramatic peaks. The landscape is characterized by rounded hilltops and shallow valleys that create a wave-like pattern across the terrain.

The region experiences a Mediterranean climate with dry summers and mild, wet winters. The topography influences local weather patterns, with the coastal hills creating some shelter from marine influences as one moves inland. Vegetation in the area consists primarily of scrubland and grassland, with limited forest cover due to the semi-arid conditions that prevail during much of the year.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie on the elevated plateaus and gentle slopes found 10 to 20 kilometers inland from San Antonio. These areas offer several key advantages for solar development, including relatively flat or gently sloping terrain that minimizes grading and construction costs while maximizing panel efficiency through optimal positioning.

The coastal hills southeast and northeast of San Antonio present particularly attractive opportunities. These elevated areas benefit from reduced coastal fog influence compared to locations closer to the ocean, while still maintaining reasonable accessibility for construction and maintenance activities. The terrain in these zones typically features broad, open expanses with minimal vegetation that would require clearing.

Areas along the inland valleys also show strong potential, particularly where the valley floors are wide and relatively level. These locations often provide natural wind protection while maintaining good solar exposure throughout the day. The slightly higher elevation compared to the immediate coastal zone helps ensure clearer atmospheric conditions during peak daylight periods.

Transportation infrastructure considerations favor sites within reasonable proximity to existing road networks that connect to San Antonio and the broader regional grid. The areas northeast of the city, where several secondary roads provide access to rural zones, offer a good balance between suitable topography and practical accessibility for large-scale solar installations.

Chile solar PV Stats as a country

Chile ranks 22nd in the world for cumulative solar PV capacity, with 4,468 total MW's of solar PV installed. This means that 9.10% of Chile's total energy as a country comes from solar PV (that's 5th in the world). Each year Chile is generating 234 Watts from solar PV per capita (Chile ranks 21st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Chile?

Yes, there are several incentives for businesses wanting to install solar energy in Chile. The Chilean government offers a range of financial incentives and tax credits for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the installation of solar panels. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional incentives such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Chile? Please reach out to us and help us keep this information current. Thanks!
