San Ignacio, Ñuble, Chile presents a mixed picture for year-round solar energy generation, with significant seasonal variation that reflects its location in the Southern Temperate Zone.

Seasonal Solar Performance

The solar energy output at San Ignacio varies dramatically throughout the year. Summer delivers the strongest performance at 8.74 kWh per day per kW of installed solar capacity, making it an excellent time for solar generation. Spring also shows strong results with 7.03 kWh per day per kW, indicating favorable conditions during this season as well. However, the location faces considerable challenges during cooler months. Autumn production drops to 4.35 kWh per day per kW, while winter shows the poorest performance at just 2.68 kWh per day per kW. This represents a more than three-fold difference between peak summer and minimum winter output.

Optimal Installation Setup

For maximum year-round energy production at San Ignacio, Ñuble, solar panels should be installed at a fixed tilt angle of 31 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting the angles based on actual solar irradiance data.

Environmental and Weather Factors

Several local factors could potentially impact solar production at this Chilean location:

• Coastal fog and marine layer: San Ignacio's proximity to the Pacific Ocean may result in morning fog or marine layer conditions that can reduce solar irradiance, particularly during autumn and winter months when output is already lower
• Volcanic ash: Chile's active volcanic region means occasional ash fall could coat solar panels, significantly reducing their efficiency
• Seasonal precipitation: Winter months may bring increased rainfall and cloud cover, contributing to the already reduced solar output during this period
• Dust accumulation: The semi-arid climate common in central Chile can lead to dust buildup on panels over time

Preventative Measures

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Regular cleaning schedule: Implement monthly panel cleaning to remove dust, ash, and other debris, with more frequent cleaning during volcanic activity periods
• Anti-soiling coatings: Apply hydrophobic coatings to panel surfaces to help rain naturally wash away dust and reduce manual cleaning requirements
• Proper mounting and drainage: Install panels with adequate spacing and drainage to prevent water pooling and ensure good air circulation
• Monitoring systems: Use performance monitoring to quickly identify when panels need cleaning or maintenance
• Strategic positioning: Avoid installation in areas prone to heavy fog accumulation or where volcanic ash tends to settle more heavily

Overall, while San Ignacio offers good solar potential during summer and spring months, the significant winter reduction and potential environmental challenges require careful planning and maintenance to ensure optimal year-round performance.

Note: The Southern Temperate Zone extends from -35° latitude South down to -66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 115 locations across Chile. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Chile by location

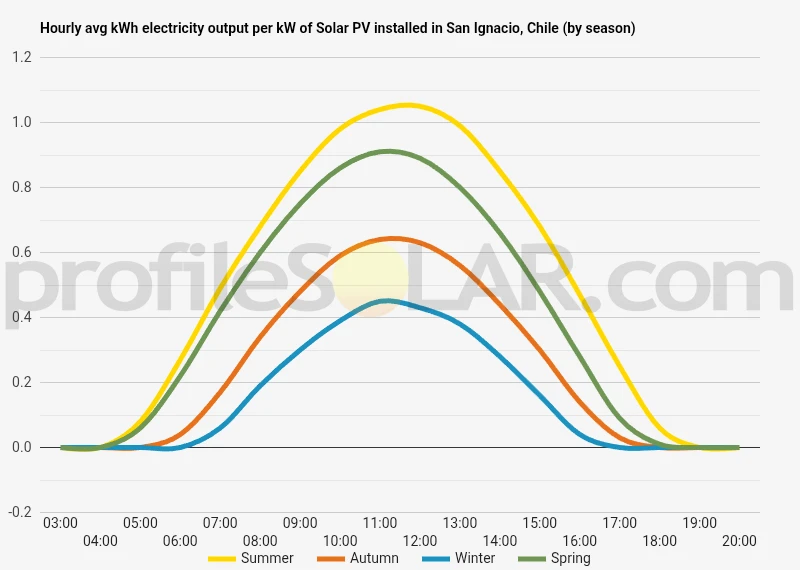

Solar output per kW of installed solar PV by season in San Ignacio

Seasonal solar PV output for Latitude: -36.7939, Longitude: -72.0329 (San Ignacio, Chile), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 31° North in San Ignacio, Chile

To maximize your solar PV system's energy output in San Ignacio, Chile (Lat/Long -36.7939, -72.0329) throughout the year, you should tilt your panels at an angle of 31° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for San Ignacio, Chile

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in San Ignacio, Chile. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 31° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
20° North in Summer	41° North in Autumn	52° North in Winter	29° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in San Ignacio, Chile

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in San Ignacio, Chile.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around San Ignacio, Chile

Topography Around San Ignacio, Chile

San Ignacio sits within the fertile Central Valley of Chile, positioned between the dramatic Andes Mountains to the east and the lower coastal ranges to the west. This region forms part of the broader Bio Bio Province, characterized by gently rolling agricultural plains that stretch across much of the valley floor. The immediate terrain around San Ignacio features relatively flat to moderately undulating farmland, with elevations ranging from approximately 200 to 400 meters above sea level. The landscape is dominated by extensive agricultural fields, primarily devoted to cereal crops, vineyards, and pastureland. Small streams and seasonal watercourses meander through the valley, creating subtle variations in the otherwise gentle topography. These waterways have carved shallow depressions and created natural drainage patterns that influence the local microtopography. Moving eastward from San Ignacio, the terrain gradually rises toward the foothills of the Andes, where the landscape becomes increasingly steep and mountainous. To the west, the land maintains its relatively flat character before eventually encountering the coastal mountain ranges. The valley's orientation runs roughly north-south, following the general geological structure of central Chile.

Areas Most Suitable for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations lie on the flatter agricultural plains immediately surrounding San Ignacio. These areas offer several advantages, including gentle slopes that minimize grading requirements and reduce installation costs. The expansive open fields provide ample space for solar arrays without significant topographical obstacles. Particularly suitable areas can be found on the elevated plateaus and mesa-like formations that occur throughout the Central Valley. These slightly raised areas benefit from excellent drainage and are less prone to seasonal flooding or waterlogging that can affect lower-lying agricultural lands. The consistent elevation and minimal slope variations make these locations ideal for large solar installations. The eastern portions of the valley, where the land begins its gradual rise toward the Andean foothills, present mixed opportunities. While some elevated areas offer good exposure and stable ground conditions, the increasing slope and potential for seasonal water runoff may require more careful site selection and engineering considerations. Areas to the immediate west of San Ignacio, where the valley floor remains relatively flat before encountering the coastal ranges, also present excellent potential for solar development. These locations typically feature good soil stability and minimal topographical constraints, making them well-suited for large-scale installations. The key considerations for optimal solar placement in this region include avoiding areas prone to seasonal flooding from the various streams and watercourses, selecting sites with stable soil conditions, and choosing locations that minimize conflicts with prime agricultural land while maintaining good access to existing electrical infrastructure.

Chile solar PV Stats as a country

Chile ranks 22nd in the world for cumulative solar PV capacity, with 4,468 total MW's of solar PV installed. This means that 9.10% of Chile's total energy as a country comes from solar PV (that's 5th in the world). Each year Chile is generating 234 Watts from solar PV per capita (Chile ranks 21st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Chile?

Yes, there are several incentives for businesses wanting to install solar energy in Chile. The Chilean government offers a range of financial incentives and tax credits for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the installation of solar panels. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional incentives such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.
