San Javier, Maule Region, Chile presents a moderately favorable location for year-round solar PV energy generation, though with significant seasonal variations typical of its Southern Temperate Zone position.

Seasonal Solar Performance

The location shows strong seasonal contrasts in solar energy production. Summer delivers the highest output at 8.82 kWh per day per kW of installed capacity, making it the peak generation period. Spring follows as the second-best season with 7.25 kWh per day per kW, offering excellent production levels. Autumn sees a notable decline to 4.51 kWh per day per kW, while winter represents the challenging period with only 2.72 kWh per day per kW. This winter figure is quite low and indicates that solar systems will produce roughly one-third of their summer capacity during the coldest months.

Optimal Installation Configuration

For fixed panel installations at San Javier, Maule Region, the ideal tilt angle is 30 degrees facing North to maximize total year-round solar production. This angle optimization takes into account the weighted solar potential throughout all seasons and the location's specific latitude.

Environmental and Weather Challenges

Several local factors could significantly impact solar production at this Chilean location:

• Dust and Agricultural Particles: San Javier sits in an agricultural region where dust from farming activities, pollen, and organic debris can accumulate on solar panels, reducing efficiency
• Seasonal Rainfall Patterns: While winter brings lower solar production, it may also coincide with increased cloud cover and precipitation that further reduces output
• Temperature Fluctuations: Significant seasonal temperature variations can affect panel efficiency, with very hot summers potentially reducing performance
• Potential Hail Events: The region may experience occasional hailstorms that could damage solar installations

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several installation strategies prove beneficial: Regular cleaning schedules become essential, particularly during harvest seasons when agricultural dust peaks. Installing panels with appropriate spacing allows for easier maintenance access and better air circulation for cooling. Choosing panels with robust tempered glass and sturdy mounting systems helps withstand weather extremes and potential hail damage. Anti-reflective coatings can improve performance while also making panels easier to clean. Implementing monitoring systems allows for quick identification of performance drops due to soiling or damage. Strategic placement away from major dust sources while maintaining optimal sun exposure helps reduce maintenance needs. The significant winter production drop suggests that San Javier works best for solar installations designed primarily for summer and spring peak demand, or when paired with substantial battery storage systems to balance seasonal variations.

Note: The Southern Temperate Zone extends from -35° latitude South down to -66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 115 locations across Chile. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Chile by location

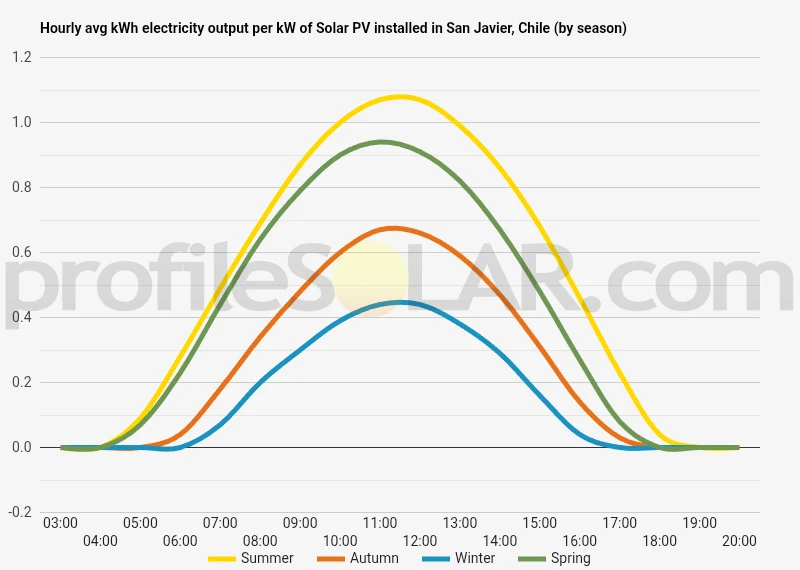

Solar output per kW of installed solar PV by season in San Javier

Seasonal solar PV output for Latitude: -35.5952, Longitude: -71.7292 (San Javier, Chile), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° North in San Javier, Chile

To maximize your solar PV system's energy output in San Javier, Chile (Lat/Long -35.5952, -71.7292) throughout the year, you should tilt your panels at an angle of 30° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for San Javier, Chile

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in San Javier, Chile. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
19° North in Summer	40° North in Autumn	51° North in Winter	28° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in San Javier, Chile

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in San Javier, Chile.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around San Javier, Chile

Topographical Features Around San Javier

San Javier sits in the heart of Chile's Central Valley, approximately 250 kilometers south of Santiago. The town is positioned on relatively flat terrain at an elevation of around 140 meters above sea level, nestled between two major mountain ranges that define this region's dramatic landscape. To the east, the imposing Andes Mountains rise sharply from the valley floor, creating a spectacular backdrop of peaks that can exceed 4,000 meters in elevation. These mountains form a natural barrier and significantly influence the local climate patterns. To the west of San Javier, the coastal mountain range known as the Cordillera de la Costa presents a more modest but still significant topographical feature. These mountains are considerably lower than the Andes, typically reaching elevations of 500 to 800 meters, and they separate the Central Valley from the Pacific Ocean approximately 120 kilometers away. The valley floor itself is characterized by gentle undulations and fertile alluvial soils deposited over millennia by rivers flowing down from the Andes. The Loncomilla River flows through this area, meandering across the valley floor and creating small floodplains and terraces. The river system has carved shallow channels through the landscape, creating subtle variations in elevation that rarely exceed 20-30 meters difference across several kilometers. Agricultural land dominates much of the surrounding area, with vineyards, orchards, and crop fields taking advantage of the fertile soils and favorable growing conditions.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around San Javier would be the extensive flat to gently sloping areas that characterize much of the Central Valley floor. These areas offer several advantages for solar development, including minimal grading requirements, easy access for construction equipment, and straightforward installation of mounting systems. The relatively uniform terrain reduces construction costs and allows for optimal panel spacing and orientation. Areas slightly elevated above the immediate river floodplains would be particularly attractive for solar development, as they provide good drainage while maintaining the flat topography ideal for large solar arrays. These elevated terraces are common throughout the region and often represent some of the best available land for utility-scale projects. The gentle slopes that transition from the valley floor toward the foothills of both mountain ranges could also accommodate solar installations, provided the gradients remain moderate. The foothills themselves, while offering potential advantages in terms of land availability and possibly reduced competition with agriculture, present more challenging conditions for large-scale solar development. Steeper terrain in these areas would require more extensive site preparation and could limit the size and efficiency of solar installations. However, some of the gentler foothill areas, particularly those with southern exposures, might still be viable for solar development with appropriate engineering considerations. Areas closer to existing electrical infrastructure would be particularly advantageous for solar development, as they would minimize the costs and complexity of grid connection. The presence of agricultural processing facilities, towns, and transportation corridors in the valley provides multiple potential connection points for large-scale solar installations.

Chile solar PV Stats as a country

Chile ranks 22nd in the world for cumulative solar PV capacity, with 4,468 total MW's of solar PV installed. This means that 9.10% of Chile's total energy as a country comes from solar PV (that's 5th in the world). Each year Chile is generating 234 Watts from solar PV per capita (Chile ranks 21st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Chile?

Yes, there are several incentives for businesses wanting to install solar energy in Chile. The Chilean government offers a range of financial incentives and tax credits for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the installation of solar panels. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional incentives such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Chile? Please reach out to us and help us keep this information current. Thanks!
