Chillán, Chile, located in the Southern Temperate Zone, offers varying potential for solar energy generation throughout the year. This location experiences significant seasonal fluctuations in solar PV output that are worth understanding for anyone considering solar installation.

Seasonal Solar Production

The solar energy production in Chillán follows a predictable seasonal pattern. During summer, solar panels produce their maximum output at 8.74kWh per day for each kilowatt installed. Spring follows as the second most productive season with 7.03kWh/day. Production drops considerably in autumn to 4.35kWh/day, while winter represents the lowest generation period with only 2.68kWh/day per kilowatt installed.

This pattern creates a more than threefold difference between summer and winter production, which is typical for locations in temperate zones where seasonal variations are pronounced.

Optimal Panel Installation

For fixed solar panel installations in Chillán, the ideal tilt angle to maximize year-round energy production is 31 degrees facing North. This angle has been calculated by analyzing the daily solar elevation patterns at this specific latitude, weighted by the solar potential throughout the year.

The north-facing orientation (which in the Southern Hemisphere means facing toward the equator) helps capture maximum sunlight throughout the year, while the 31-degree tilt balances seasonal variations in the sun's position.

Environmental Considerations

Several environmental factors could potentially impact solar production in Chillán:

• Winter fog and cloud cover in the central valley of Chile can significantly reduce solar radiation during the already low-production winter months
• Occasional volcanic ash from nearby Andean volcanoes can temporarily reduce panel efficiency if allowed to accumulate
• Seasonal dust from agricultural activities in the region may gradually decrease panel performance

To mitigate these issues, solar installations in Chillán should incorporate regular cleaning schedules, particularly before and after winter. Installing panels with self-cleaning technologies or hydrophobic coatings can help maintain efficiency. Additionally, a monitoring system to detect unexpected drops in performance can alert owners to potential ash or dust accumulation issues.

Best Times for Solar Generation

The period from November through March (late spring through summer) represents the prime solar generation window in Chillán. During these months, longer days and more direct sunlight create ideal conditions for solar production. If designing a hybrid energy system, it would be wise to incorporate complementary energy sources that perform well during the May to August period when solar output is at its lowest.

Overall, while Chillán experiences significant seasonal variation in solar potential, proper system design and maintenance can still make solar PV a viable energy source, particularly as part of a diversified energy strategy.

Note: The Southern Temperate Zone extends from -35° latitude South down to -66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 115 locations across Chile. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Chile by location

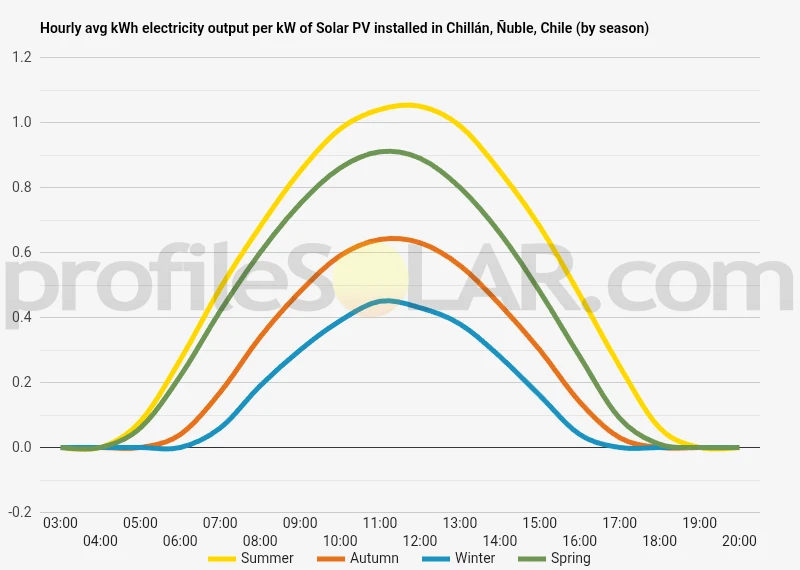

Solar output per kW of installed solar PV by season in Chillán, Ñuble

Seasonal solar PV output for Latitude: -36.6029, Longitude: -72.1139 (Chillán, Ñuble, Chile), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 8.74kWh/day in Summer.

Average 4.35kWh/day in Autumn.

Average 2.68kWh/day in Winter.

Average 7.03kWh/day in Spring.

Ideally tilt fixed solar panels 31° North in Chillán, Ñuble, Chile

To maximize your solar PV system's energy output in Chillán, Ñuble, Chile (Lat/Long -36.6029, -72.1139) throughout the year, you should tilt your panels at an angle of 31° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: -36.6029, Longitude: -72.1139, the ideal angle to tilt panels is 31° North

Seasonally adjusted solar panel tilt angles for Chillán, Ñuble, Chile

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chillán, Ñuble, Chile. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 31° North tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chillán, Ñuble, Chile

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chillán, Ñuble, Chile.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chillán, Ñuble, Chile

Topographical Features Around Chillán

Chillán sits in the heart of Chile's Central Valley, positioned between two major mountain ranges that define the country's dramatic landscape. To the east, the imposing Andes Mountains rise sharply from the valley floor, creating a spectacular backdrop dominated by snow-capped peaks and volcanic formations. The most prominent feature in this eastern range is Nevados de Chillán, a volcanic complex that includes several peaks reaching over 3,000 meters in elevation.

Westward from Chillán, the terrain gradually rises toward the Chilean Coast Range, a lower but still significant mountain system that separates the Central Valley from the Pacific Ocean. These coastal mountains are considerably less dramatic than the Andes, with gentler slopes and more rounded peaks that rarely exceed 1,000 meters in height.

The Central Valley itself, where Chillán is located, represents some of Chile's most fertile and accessible terrain. This broad depression between the mountain ranges features relatively flat to gently rolling agricultural land, with elevations typically ranging from 100 to 300 meters above sea level. The valley floor is intersected by numerous rivers and streams flowing westward from the Andes toward the Pacific, creating a network of fertile plains and gentle undulations across the landscape.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie in the flatter portions of the Central Valley, particularly on the broad agricultural plains that extend north and south of Chillán. These areas offer the essential combination of level terrain, good accessibility, and minimal topographical obstacles that large solar farms require for efficient construction and maintenance.

The gently rolling hills on the valley's eastern edge, closer to the Andean foothills, present additional opportunities for solar development. These slightly elevated areas often provide excellent exposure while remaining accessible enough for major infrastructure projects. The gradual slopes can be advantageous for solar panel positioning, allowing for optimal orientation without the complications of steep terrain.

Areas to the west of Chillán, extending toward the coastal range, also show promise for solar installations. The terrain here remains relatively flat for several kilometers before beginning its ascent toward the coastal mountains. This western portion of the valley benefits from being somewhat removed from the more intensive agricultural zones immediately around the city, potentially reducing land-use conflicts.

The key advantage of the Central Valley location is its accessibility via existing road networks and proximity to electrical grid infrastructure. The flat to gently undulating terrain minimizes earthwork requirements and allows for efficient layout of solar arrays across large areas. The absence of significant vegetation or forest cover in many agricultural zones also reduces environmental complications and site preparation costs for potential solar developments.

Chile solar PV Stats as a country

Chile ranks 22nd in the world for cumulative solar PV capacity, with 4,468 total MW's of solar PV installed. This means that 9.10% of Chile's total energy as a country comes from solar PV (that's 5th in the world). Each year Chile is generating 234 Watts from solar PV per capita (Chile ranks 21st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Chile?

Yes, there are several incentives for businesses wanting to install solar energy in Chile. The Chilean government offers a range of financial incentives and tax credits for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the installation of solar panels. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional incentives such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Chile? Please reach out to us and help us keep this information current. Thanks!
