Galapa, Atlántico, Colombia presents excellent conditions for year-round solar energy generation. Located in the tropics at coordinates 10.8958°N, -74.8848°W, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than significant temperature variations.

Solar Energy Output Performance

The solar energy production data for Galapa shows remarkably consistent performance across all seasons. Winter delivers the highest output at 6.34 kWh per day per kW of installed solar capacity, closely followed by Spring at 6.32 kWh per day per kW. Summer produces 5.98 kWh per day per kW, while Autumn generates 5.78 kWh per day per kW of installed capacity. The relatively small variation between seasons - only about 10% difference between the highest and lowest producing periods - demonstrates the location's reliability for solar energy generation. Winter and Spring emerge as the ideal times for maximum solar production, though the consistently high output throughout the year makes this location excellent for solar installations regardless of season.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal angle to tilt panels to maximize total year-round production is 11 degrees South. This calculation accounts for the daily solar elevation angles at this latitude, weights the angles by daily photovoltaic potential using solar irradiance data, and considers Earth's elliptical orbit to determine the optimal annual average tilt angle.

Environmental and Weather Challenges

Several significant environmental factors could potentially impede solar production in Galapa and require careful consideration during installation:

• High humidity and moisture: The tropical climate creates conditions that can lead to corrosion of metal components and degradation of electrical connections
• Intense rainfall during wet seasons: Heavy tropical downpours can reduce solar output and potentially damage equipment if not properly protected
• Salt air exposure: Being relatively close to the Caribbean coast, salt-laden air can accelerate corrosion of solar panel frames and mounting systems
• High temperatures: Consistent tropical heat can reduce solar panel efficiency and stress electrical components

Preventative Measures for Optimal Performance

To ensure maximum energy production despite these environmental challenges, several preventative measures should be implemented:

• Use marine-grade materials: Install aluminum frames with anodized coatings and stainless steel mounting hardware to resist salt corrosion
• Ensure proper drainage: Design mounting systems with adequate water runoff to prevent pooling and moisture accumulation
• Implement robust sealing: Use high-quality weatherproof seals on all electrical connections and junction boxes
• Plan for ventilation: Allow sufficient air circulation behind panels to reduce operating temperatures and maintain efficiency
• Regular maintenance scheduling: Establish frequent cleaning and inspection routines to remove salt deposits and check for corrosion

Despite these environmental considerations, Galapa's consistent solar output throughout the year makes it an excellent location for solar energy generation. With proper installation techniques and materials designed for tropical coastal conditions, solar installations can perform reliably and efficiently in this location.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 173 locations across Colombia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Colombia by location

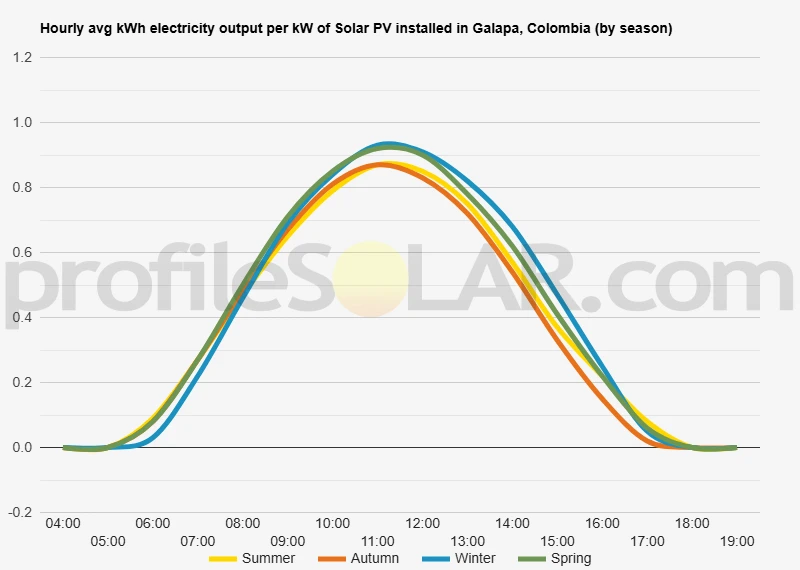

Solar output per kW of installed solar PV by season in Galapa

Seasonal solar PV output for Latitude: 10.8958, Longitude: -74.8848 (Galapa, Colombia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 11° South in Galapa, Colombia

To maximize your solar PV system's energy output in Galapa, Colombia (Lat/Long 10.8958, -74.8848) throughout the year, you should tilt your panels at an angle of 11° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Galapa, Colombia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Galapa, Colombia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 11° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	17° South in Autumn	26° South in Winter	5° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Galapa, Colombia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Galapa, Colombia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Galapa, Colombia

Topographical Features Around Galapa

Galapa sits in the northern Caribbean coastal region of Colombia, positioned within the relatively flat terrain that characterizes much of the Atlántico Department. The landscape around this municipality consists primarily of gently rolling plains and low-lying areas that form part of the broader Caribbean lowlands. These plains extend inland from the Caribbean Sea, creating a predominantly level topography with minimal elevation changes across the immediate vicinity.

The terrain gradually rises as one moves southward from the coast, but around Galapa itself, the elevation remains modest with gentle undulations rather than steep hills or mountainous features. This area forms part of the Magdalena River valley system's northern reaches, where sedimentary deposits have created relatively uniform, flat expanses punctuated by occasional low ridges and shallow depressions.

Water features in the region include several seasonal streams and drainage channels that flow northward toward the Caribbean Sea. These waterways have carved subtle valleys and created slight variations in the otherwise consistent topography. The soil composition consists largely of alluvial deposits, creating fertile agricultural land that has been extensively cultivated over generations.

Optimal Areas for Large-Scale Solar Development

The flat to gently rolling terrain surrounding Galapa presents excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas lie on the elevated plains to the south and southwest of the municipality, where the land rises just enough to provide good drainage while maintaining the level surfaces ideal for solar panel arrays.

These southern plains offer several advantages for solar development. The consistent elevation and minimal slope variations allow for efficient panel placement and reduce the complexity of installation. The stable ground conditions, formed by consolidated sedimentary layers, provide solid foundations for mounting systems without requiring extensive site preparation or specialized engineering solutions.

Areas immediately east and west of Galapa also show strong potential, particularly on the slightly elevated plateaus that extend across the region. These locations benefit from excellent exposure to solar radiation throughout the day, with minimal shading from topographical features. The absence of significant hills or ridges means that solar installations would not face obstruction from nearby terrain features.

The agricultural plains that surround the municipality could accommodate large solar farms, especially in areas where the land is relatively flat and well-drained. These locations typically feature good access to existing road networks, which facilitates construction and maintenance activities. The proximity to established electrical infrastructure also makes grid connection more feasible and cost-effective for utility-scale projects.

Colombia solar PV Stats as a country

Colombia ranks 74th in the world for cumulative solar PV capacity, with 184 total MW's of solar PV installed. Each year Colombia is generating 4 Watts from solar PV per capita (Colombia ranks 81st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Colombia?

Yes, there are several incentives for businesses wanting to install solar energy in Colombia. The Colombian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity generated by their solar systems back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Colombia? Please reach out to us and help us keep this information current. Thanks!
