Los Patios, Norte de Santander Department, Colombia presents a very favorable location for year-round solar energy generation. Located in the tropical region at coordinates 7.8413°N, -72.5032°W, this area benefits from consistent sunlight throughout the year, with seasonal variations being more defined by wet and dry periods rather than traditional temperature-based seasons.

Solar Energy Production Potential

The solar energy output data for Los Patios shows remarkably consistent performance across all seasons. Autumn emerges as the peak production period, generating 5.22 kWh per day per kW of installed solar capacity. Winter follows closely with 4.75 kWh/day per kW, while summer produces 4.74 kWh/day per kW. Spring shows the lowest output at 4.43 kWh/day per kW, though this difference is relatively minor. This consistent production throughout the year makes Los Patios an excellent location for solar installations, as there are no dramatic seasonal drops in energy generation that might affect system reliability or economic returns.

Optimal Panel Configuration

For maximum year-round solar production at this location, solar panels should be installed at a fixed tilt angle of 8 degrees facing south. This relatively shallow angle is calculated based on the location's proximity to the equator and accounts for the sun's path throughout the year, weighted by solar irradiance data and Earth's elliptical orbit patterns.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Los Patios:

• Tropical rainfall and humidity: The wet season brings heavy rains and high humidity levels that can reduce panel efficiency and create maintenance challenges
• Dust and particulate accumulation: During dry periods, dust buildup on panels can significantly reduce energy output
• Cloud cover: Frequent cloud formation, particularly during wet seasons, can cause intermittent shading
• High temperatures: Consistent tropical heat can reduce panel efficiency, as solar panels typically perform better in cooler conditions

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation and maintenance strategies should be implemented: Regular cleaning schedules are essential, particularly during dry seasons when dust accumulation is heaviest. Installing panels with adequate spacing allows for proper air circulation, helping to reduce heat buildup and improve cooling efficiency. Choosing high-quality panels with good temperature coefficients will help maintain performance in hot tropical conditions. Additionally, installing panels with anti-reflective coatings and hydrophobic surfaces can help reduce the impact of both dust and water spotting. Proper drainage design around solar installations prevents water pooling during heavy rains, while elevated mounting systems improve air circulation and reduce ground-reflected heat. Regular vegetation management around installations prevents shading and reduces debris accumulation. Despite these potential challenges, Los Patios remains an excellent location for solar energy generation, with the consistent tropical sunlight far outweighing the manageable environmental factors that proper installation and maintenance practices can address.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 173 locations across Colombia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Colombia by location

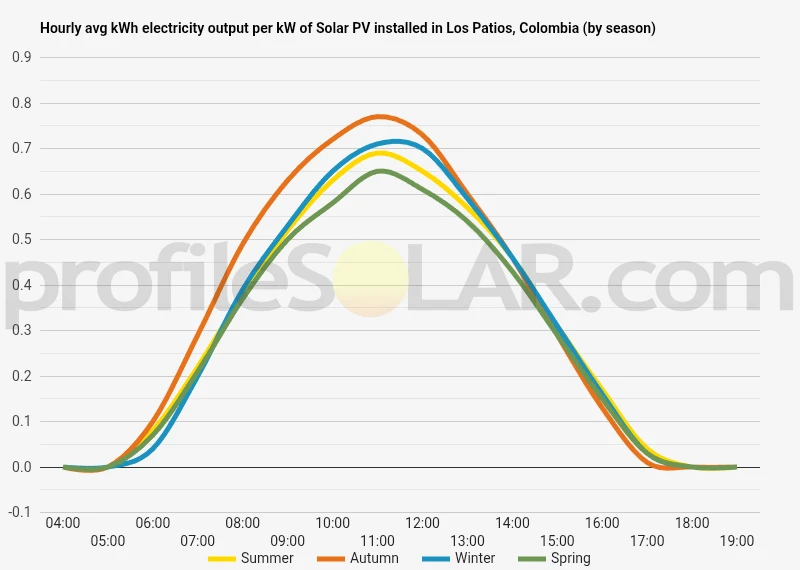

Solar output per kW of installed solar PV by season in Los Patios

Seasonal solar PV output for Latitude: 7.8413, Longitude: -72.5032 (Los Patios, Colombia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 8° South in Los Patios, Colombia

To maximize your solar PV system's energy output in Los Patios, Colombia (Lat/Long 7.8413, -72.5032) throughout the year, you should tilt your panels at an angle of 8° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Los Patios, Colombia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Los Patios, Colombia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 8° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	13° South in Autumn	24° South in Winter	1° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Los Patios, Colombia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Los Patios, Colombia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Los Patios, Colombia

Topographical Features of Los Patios Region

Los Patios is situated in the Norte de Santander department of Colombia, positioned within the eastern foothills of the Cordillera Oriental mountain range. The municipality sits at an elevation of approximately 320 meters above sea level, creating a transitional zone between the higher Andean slopes to the west and the lower plains extending toward Venezuela to the east. This location places Los Patios within what geographers classify as the Magdalena River valley system, though it lies closer to the Catatumbo River watershed that flows toward Lake Maracaibo. The terrain around Los Patios exhibits a characteristic piedmont landscape, where the steep mountain slopes gradually give way to rolling hills and eventually flatten into broader valleys. The topography features a series of parallel ridges and valleys running roughly north to south, following the general orientation of the Andean mountain system. These ridges typically rise 100 to 200 meters above the valley floors, creating an undulating landscape with moderate relief. The area experiences significant drainage from numerous small streams and seasonal watercourses that flow eastward from the mountains toward the Zulia River, which eventually joins the Catatumbo system. These waterways have carved distinctive valleys through the landscape, creating natural corridors of flatter terrain interspersed with the rolling hills.

Soil Composition and Land Use Patterns

The geological foundation consists primarily of sedimentary rocks from the Tertiary period, including sandstones, shales, and conglomerates that have weathered into fertile alluvial soils in the valley bottoms. The hillsides typically feature more clay-rich soils with varying degrees of erosion, particularly on steeper slopes where vegetation cover has been reduced by agricultural activities or urban development. Current land use in the region reflects this topographical diversity, with urban development concentrated in the flatter areas near Los Patios itself, while the surrounding hills support a mixture of small-scale agriculture, pastureland for cattle grazing, and patches of secondary forest. The agricultural activities include cultivation of coffee on some of the higher elevations, along with various food crops and fruit trees in the more protected valleys.

Optimal Areas for Large-Scale Solar Development

For large-scale solar photovoltaic installations, the most suitable areas around Los Patios would be the broader valley floors and gentle hillsides with slopes of less than 15 degrees. These locations offer several advantages including easier access for construction and maintenance equipment, reduced earthwork requirements for site preparation, and more efficient panel layout configurations. The areas immediately east and southeast of Los Patios present particularly favorable conditions, where the terrain begins to flatten as it transitions toward the Venezuelan border region. These zones feature extensive areas of relatively level ground that are currently used for pasture or low-intensity agriculture, making land acquisition potentially more straightforward than in areas with established urban development or high-value agricultural operations. The gentle south-facing slopes throughout the region would be especially well-suited for solar installations, as they provide optimal panel orientation while maintaining manageable gradients for construction. These slopes also tend to have good natural drainage, reducing concerns about water accumulation during the rainy seasons that characterize this tropical climate zone. Areas to avoid for large-scale solar development would include the steeper hillsides west of Los Patios where slopes exceed 20 degrees, making construction challenging and potentially requiring extensive terracing. Additionally, the narrow valley bottoms near active watercourses should be avoided due to flooding risks and environmental sensitivity, despite their flat topography. The existing transportation infrastructure, including roads connecting Los Patios to the regional highway network, provides reasonable access to many of the potentially suitable sites, though some areas might require construction of access roads to support large-scale solar development projects.

Colombia solar PV Stats as a country

Colombia ranks 74th in the world for cumulative solar PV capacity, with 184 total MW's of solar PV installed. Each year Colombia is generating 4 Watts from solar PV per capita (Colombia ranks 81st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Colombia?

Yes, there are several incentives for businesses wanting to install solar energy in Colombia. The Colombian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity generated by their solar systems back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Colombia? Please reach out to us and help us keep this information current. Thanks!
