Solar Energy Potential in Manizales, Caldas Department, Colombia

Manizales, Caldas Department, Colombia, situated at 5.072° North latitude and -75.515° longitude, offers relatively consistent solar energy generation potential throughout the year. This tropical location benefits from stable sunlight patterns, with seasonal variations primarily defined by wet and dry periods rather than significant daylight duration changes. The solar electricity generation potential in Manizales demonstrates remarkable consistency across meteorological seasons. During summer months, solar PV systems can produce approximately 5.37 kWh per day for each kilowatt of installed capacity. Autumn performs slightly better at 5.38 kWh/day, while winter and spring show a modest decrease to 5.07 kWh/day and 5.05 kWh/day respectively.

Optimal Panel Installation

For fixed solar panel installations in Manizales, Caldas Department, the ideal tilt angle to maximize year-round energy production is 4 degrees facing South. This relatively flat orientation reflects the city's proximity to the equator, where the sun passes nearly overhead throughout the year.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production in Manizales:

• Cloud cover and rainfall: Manizales experiences significant rainfall (approximately 1,800mm annually) with frequent cloud cover, particularly during the rainy seasons from March to May and September to November.
• Volcanic ash: The city's proximity to active volcanoes in the Cordillera Central mountain range can occasionally result in ash fall, which may accumulate on solar panels.
• Altitude effects: At approximately 2,160 meters above sea level, Manizales benefits from thinner atmosphere (allowing more direct radiation) but also experiences more variable mountain weather patterns.

Preventative Measures

To optimize solar production despite these challenges, several preventative measures can be implemented:

• Self-cleaning panel technologies or regular maintenance schedules to address ash and dust accumulation
• Slightly increased panel tilt (beyond the optimal 4 degrees) to facilitate natural cleaning during rainfall
• Weather-resistant mounting systems designed to withstand occasional strong winds
• Microinverter or power optimizer technologies to minimize production losses from partial shading during cloudy periods
• Oversizing the array relative to inverter capacity to capture more energy during limited sunlight periods

Despite these considerations, Manizales remains a viable location for solar power generation with its consistent year-round production potential, particularly during the drier months of June-August and December-February when solar resource availability is typically at its highest.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 173 locations across Colombia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Colombia by location

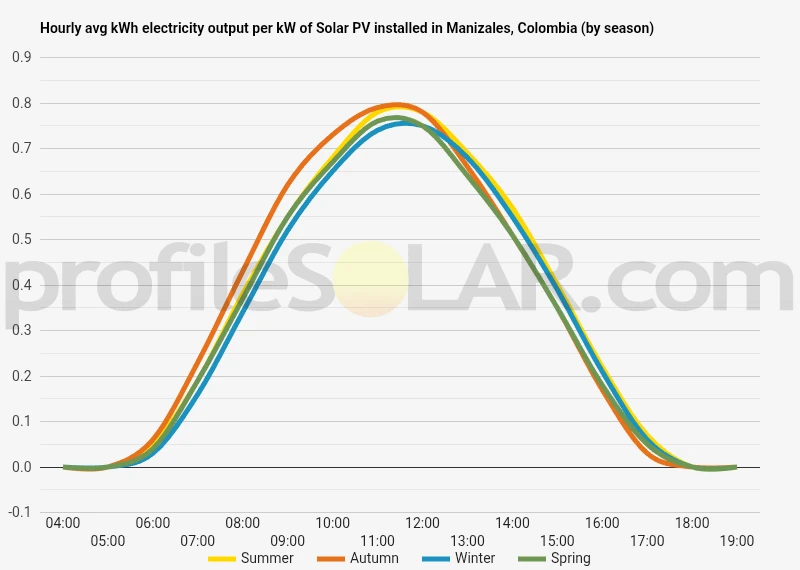

Solar output per kW of installed solar PV by season in Manizales

Seasonal solar PV output for Latitude: 5.072, Longitude: -75.515 (Manizales, Colombia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° South in Manizales, Colombia

To maximize your solar PV system's energy output in Manizales, Colombia (Lat/Long 5.072, -75.515) throughout the year, you should tilt your panels at an angle of 4° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Manizales, Colombia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Manizales, Colombia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	11° South in Autumn	21° South in Winter	2° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Manizales, Colombia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Manizales, Colombia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Manizales, Colombia

Manizales is nestled in the western part of Colombia's central Andean region, specifically on the western slopes of the Cordillera Central mountain range. This mountainous city sits at an elevation of approximately 2,150 meters (7,050 feet) above sea level, creating a dramatic topographical setting that influences both its climate and potential for renewable energy development. The topography surrounding Manizales is characterized by steep, rugged mountains with significant variations in elevation. The landscape features deep valleys, sharp ridges, and numerous slopes of varying gradients. This mountainous terrain is part of the coffee-growing axis of Colombia, known as the "Coffee Triangle" or "Eje Cafetero," where the combination of elevation, soil composition, and climate creates ideal conditions for coffee cultivation.

Surrounding Landscape Features

To the east of Manizales rises the imposing Nevado del Ruiz volcano, which stands at over 5,300 meters (17,400 feet) above sea level. This active volcano is part of the Los Nevados National Natural Park, a protected area featuring several snow-capped peaks, páramo ecosystems (high-altitude Andean moorlands), and diverse flora and fauna adapted to high-altitude environments. The western side of Manizales descends toward the Cauca River valley, creating a gradient of decreasing elevation. This transition zone features a mix of steep slopes and more moderate terrain as one moves away from the central Andean spine. Throughout the region, numerous rivers and streams have carved valleys and gorges into the mountainous landscape, including the Chinchiná River which flows near the city. These waterways have shaped the local topography, creating natural boundaries and contributing to the overall complexity of the terrain.

Areas Suited for Solar PV Development

Despite the predominantly mountainous character of the region, several areas near Manizales show potential for large-scale solar photovoltaic (PV) development: The lower-elevation areas to the west and southwest of Manizales, as one approaches the Cauca River valley, offer more expansive, less steep terrain that could accommodate larger solar installations. These areas, particularly in parts of the municipalities of Palestina, Chinchiná, and Villamaría, feature gentler slopes and more consistent sun exposure. Some of the plateau areas and less steep hillsides within a 30-kilometer radius of Manizales present opportunities for medium to large solar developments. These locations benefit from reduced cloud cover compared to higher elevations and offer more stable ground for mounting solar arrays. The relatively flat agricultural lands in the vicinity of Chinchiná, approximately 15-20 kilometers south of Manizales, combine favorable topography with good solar resource potential. These areas already have some infrastructure development and access roads that could support solar facility construction and maintenance.

Topographical Challenges

It's important to note that the mountainous nature of the region does present certain challenges for large-scale solar development. The varied terrain creates localized microclimates with different patterns of cloud formation and precipitation. Higher elevation areas, particularly those above 2,500 meters, experience more frequent cloud cover and mist, which would reduce solar generation efficiency. Additionally, the steep slopes that characterize much of the landscape around Manizales would require significant earthwork and specialized mounting systems for solar arrays, increasing installation costs and environmental impact. Areas with slopes exceeding 15-20 degrees generally become technically challenging and economically less viable for large-scale solar PV deployment. The complex topography also affects accessibility, with some potentially suitable areas being difficult to reach with the heavy equipment needed for solar farm construction. This logistical challenge would need to be factored into site selection and development planning. In summary, while the mountainous topography around Manizales creates certain limitations for solar PV development, the transition zones toward lower elevations, particularly to the west and south, offer promising opportunities for renewable energy projects that could contribute significantly to Colombia's growing clean energy portfolio.

Colombia solar PV Stats as a country

Colombia ranks 74th in the world for cumulative solar PV capacity, with 184 total MW's of solar PV installed. Each year Colombia is generating 4 Watts from solar PV per capita (Colombia ranks 81st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Colombia?

Yes, there are several incentives for businesses wanting to install solar energy in Colombia. The Colombian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity generated by their solar systems back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Colombia? Please reach out to us and help us keep this information current. Thanks!
