Solar Energy Potential in Muzo, Departamento de Boyacá, Colombia

Muzo, Departamento de Boyacá, Colombia, located at coordinates 5.5366, -74.1102 in the tropics, presents a remarkably consistent environment for solar energy generation throughout the year. This location benefits from the relatively stable sunlight patterns typical of tropical regions, where seasonal variations are primarily defined by wet and dry periods rather than significant changes in daylight duration. The solar electricity production data reveals impressive consistency across all meteorological seasons. In summer, solar panels generate approximately 5.78 kWh per day for each kilowatt of installed capacity. Autumn shows a slight increase to 5.91 kWh/day, making it the most productive season. Winter production dips slightly to 5.42 kWh/day, while spring rebounds to 5.50 kWh/day. This minimal seasonal variation—with only about 0.5 kWh/day difference between the highest and lowest producing seasons—indicates that Muzo is an excellent location for year-round solar energy harvesting. The autumn months appear particularly favorable for solar generation, though the differences are modest enough that substantial energy can be captured throughout the entire year.

Optimal Panel Installation

For fixed solar panel installations in Muzo, Departamento de Boyacá, the ideal tilt angle to maximize year-round energy production is 5 degrees facing South. This shallow angle reflects Muzo's proximity to the equator, where the sun passes nearly overhead throughout much of the year. This optimal tilt helps capture maximum sunlight while still allowing for natural cleaning from rainfall.

Environmental and Weather Considerations

Several environmental factors could potentially affect solar production in Muzo:

• Heavy rainfall during wet seasons may temporarily reduce solar output and could cause accumulation of dirt or debris on panels if not properly angled for self-cleaning.
• The region's mountainous topography might create localized shading issues depending on the specific installation site.
• High humidity levels typical of tropical regions can slightly reduce panel efficiency.
• Occasional cloud cover during rainy seasons will temporarily impact production.

Preventative Measures

To maximize solar energy production in Muzo, Departamento de Boyacá, several preventative measures can be implemented: Installing panels at the recommended 5-degree tilt not only optimizes sun exposure but also promotes natural cleaning during rainfall. Regular maintenance schedules should be implemented, particularly before and after wet seasons, to remove any accumulated dirt or organic matter that might reduce panel efficiency. Using microinverters or power optimizers can help mitigate production losses from partial shading due to the mountainous terrain. Additionally, selecting solar panels with good performance in high-temperature environments will help maintain efficiency in Muzo's tropical climate. Overall, Muzo presents an excellent opportunity for solar power generation with its consistent year-round production potential and relatively minor seasonal variations. With proper installation and maintenance practices, solar PV systems in this location can provide reliable renewable energy throughout the entire year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 173 locations across Colombia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Colombia by location

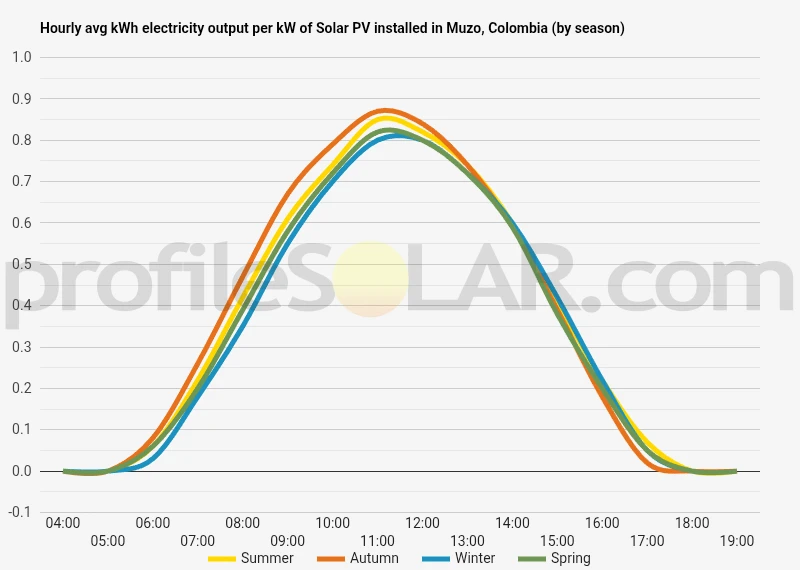

Solar output per kW of installed solar PV by season in Muzo

Seasonal solar PV output for Latitude: 5.5366, Longitude: -74.1102 (Muzo, Colombia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 5° South in Muzo, Colombia

To maximize your solar PV system's energy output in Muzo, Colombia (Lat/Long 5.5366, -74.1102) throughout the year, you should tilt your panels at an angle of 5° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Muzo, Colombia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Muzo, Colombia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 5° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	11° South in Autumn	21° South in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Muzo, Colombia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Muzo, Colombia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Muzo, Colombia

The topography around Muzo, Colombia presents a complex and varied landscape characteristic of the eastern Andean region. Situated in the department of Boyacá, Muzo lies within the rugged western slopes of Colombia's Eastern Cordillera. The terrain is predominantly mountainous with dramatic elevation changes, featuring steep slopes, narrow valleys, and numerous ridgelines. Elevations in the immediate vicinity range approximately from 700 to 2,000 meters above sea level, creating a vertically diverse environment. The area is characterized by the deeply incised valley of the Río Minero (Minero River), which has carved through the mountainous terrain over millennia. This river and its tributaries create a dendritic drainage pattern throughout the region, fragmenting the landscape into a series of interconnected ridges and valleys. The topographical complexity is further enhanced by the tropical climate, which has contributed to extensive erosional features across the landscape.

Vegetation and Land Cover

The natural vegetation covering the mountains around Muzo consists primarily of tropical and subtropical moist broadleaf forests, though significant portions have been converted to agricultural use and pastureland. The steepest slopes typically retain more of their natural forest cover, while gentler terrain has seen more extensive human modification. This vegetation pattern follows the topographical contours, with denser forest often corresponding to more inaccessible, steeper terrain.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic development, the most suitable areas near Muzo would be found on relatively flat plateaus, gentler slopes, and ridge tops that receive consistent solar exposure throughout the day. These areas would ideally face northward (in the Southern Hemisphere) to maximize solar radiation capture. Specifically, the more elevated plateaus to the east and northeast of Muzo present potentially viable locations, where the terrain flattens somewhat before rising again toward the higher portions of the Eastern Cordillera. These areas, at elevations between 1,200 and 1,800 meters, offer a combination of clearer atmospheric conditions and reduced vegetation obstruction compared to the densely forested lower slopes. The broader valleys and less steep hillsides approximately 10-15 kilometers to the northwest, where the mountains begin to give way to the middle Magdalena Valley, also present topographically suitable conditions. These areas have gentler gradients and more extensive flat or gently sloping terrain that could accommodate larger installation footprints.

Topographical Constraints

It's important to note that the overall mountainous nature of the region presents significant challenges for large-scale solar development. The prevalence of steep slopes increases construction complexity and costs, while the deeply dissected terrain creates issues with access for both construction and maintenance. Additionally, morning and evening shading from surrounding mountains can reduce the effective generation period at many locations within this topographically complex region. The areas with the most favorable topography for solar development tend to be those that have already been cleared for agriculture or grazing, particularly on the more moderate slopes and small plateaus. These locations offer the dual advantage of reduced site preparation requirements and minimized environmental impact compared to clearing forested areas.

Colombia solar PV Stats as a country

Colombia ranks 74th in the world for cumulative solar PV capacity, with 184 total MW's of solar PV installed. Each year Colombia is generating 4 Watts from solar PV per capita (Colombia ranks 81st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Colombia?

Yes, there are several incentives for businesses wanting to install solar energy in Colombia. The Colombian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity generated by their solar systems back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Colombia? Please reach out to us and help us keep this information current. Thanks!
