Solar Energy Potential in Pitalito, Huila Department, Colombia

Pitalito, Huila Department, Colombia, situated at latitude 1.8529° North and longitude 76.0546° West, offers promising conditions for solar energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, with seasonal variations primarily defined by wet and dry periods rather than significant changes in daylight duration. The solar electricity output at this location shows moderate seasonal variations. During autumn, the location achieves its peak performance with approximately 4.64 kWh per day for each kilowatt of installed solar capacity. Winter follows with 4.24 kWh/day, while spring yields about 4.00 kWh/day. Summer represents the period with the lowest output at 3.90 kWh/day per kilowatt installed.

Optimal Panel Installation

For fixed solar panel installations in Pitalito, Huila Department, the ideal tilt angle to maximize year-round energy production is 2 degrees South. This slight tilt optimizes the panels' exposure to the sun's path throughout the year, accounting for Pitalito's location just north of the equator. This positioning helps capture maximum sunlight across changing seasons while considering the earth's elliptical orbit and the location's specific solar patterns.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar energy production in Pitalito:

• Cloud cover during the rainy season (typically April-June and October-December) can significantly reduce solar irradiance reaching the panels.
• The region's mountainous terrain may create localized shading effects depending on the specific installation site.
• Dust accumulation is a concern, particularly during dry periods, as agricultural activities in this coffee-growing region can generate airborne particles.

Recommended Mitigation Measures

To maximize solar energy production despite these challenges, several preventative measures are advisable: Installing panels with slightly increased capacity can help compensate for reduced output during cloudier periods. Implementing regular cleaning schedules, especially before and after the dry season, will minimize dust-related efficiency losses. Conducting a thorough shade analysis before installation ensures optimal placement away from potential obstructions. Additionally, considering microinverters or power optimizers rather than string inverters can help minimize production losses when partial shading occurs. For larger installations, incorporating a simple tracking system might be cost-effective given the relatively consistent year-round solar availability, though the benefit would be modest compared to locations at higher latitudes.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 173 locations across Colombia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Colombia by location

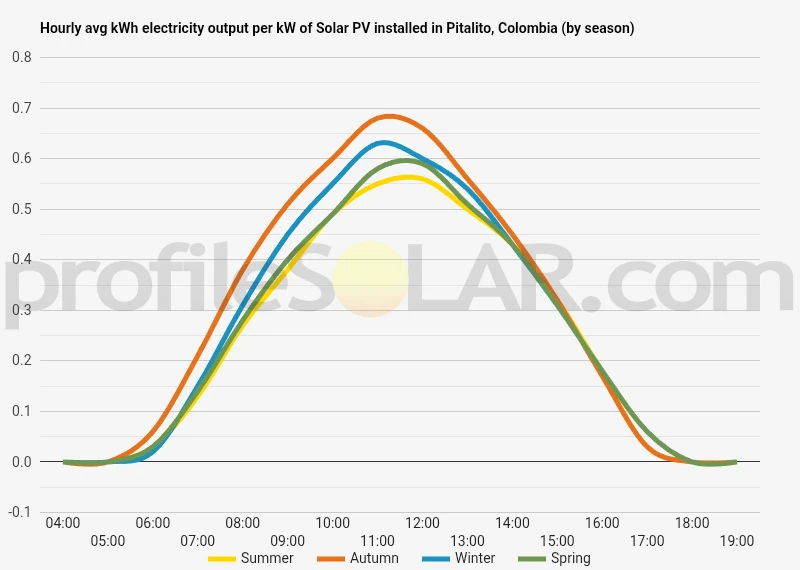

Solar output per kW of installed solar PV by season in Pitalito

Seasonal solar PV output for Latitude: 1.8529, Longitude: -76.0546 (Pitalito, Colombia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 2° South in Pitalito, Colombia

To maximize your solar PV system's energy output in Pitalito, Colombia (Lat/Long 1.8529, -76.0546) throughout the year, you should tilt your panels at an angle of 2° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pitalito, Colombia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pitalito, Colombia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 2° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° North in Summer	8° South in Autumn	18° South in Winter	5° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pitalito, Colombia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pitalito, Colombia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pitalito, Colombia

The area surrounding Pitalito, Colombia presents a diverse topographical landscape characterized by mountainous terrain, valleys, and plateaus. Located in the southern part of the Huila Department, Pitalito sits in a valley at approximately 1,300 meters above sea level. The region forms part of the Colombian Massif, where the Andes mountain range splits into three distinct cordilleras (mountain ranges) that extend northward through Colombia.

Mountain Features

The terrain around Pitalito is dominated by the eastern slopes of the Central Cordillera and the western slopes of the Eastern Cordillera. These mountain ranges create a varied landscape with significant elevation changes, ranging from approximately 1,200 meters in the valley floors to over 2,500 meters in the surrounding highlands. This mountainous topography creates numerous microclimates throughout the region. The Magdalena River Valley influences the broader regional topography, with Pitalito situated in the upper basin of this important Colombian watershed. The area features numerous smaller rivers and streams that have carved valleys through the mountainous terrain over millennia.

Suitable Areas for Solar PV Development

When considering large-scale solar photovoltaic development near Pitalito, several topographical factors become important considerations. The most suitable areas would typically include: The valley floors around Pitalito offer relatively flat terrain that would minimize earthwork requirements for solar installations. These areas, particularly to the north and east of the city, provide substantial contiguous land that could accommodate large arrays of solar panels. Several plateau regions at higher elevations surrounding the valley present favorable conditions for solar development. These areas, particularly those with southern exposure on the northern sides of valleys, receive consistent solar radiation throughout the year. The gently sloping hillsides facing north, northeast, and northwest around the Pitalito valley represent a compromise between land that is too steep for practical development and optimal solar exposure. These moderate slopes, typically between 5-15 degrees, can be found particularly in the transitional zones between the valley floor and the steeper mountain slopes.

Topographical Challenges

Despite these suitable areas, the topography around Pitalito presents several challenges for large-scale solar development. The steep mountainsides that dominate much of the landscape are generally impractical for solar farms due to installation difficulties, soil stability concerns, and shadowing effects. The region experiences seasonal rainfall patterns that have shaped the landscape through erosion, creating deeply incised valleys in some areas. These erosion-prone zones would require careful assessment before development. Additionally, the complex topography creates localized cloud patterns and fog conditions, particularly in certain valley systems and at specific elevation bands. These microclimatic effects would need detailed study to identify the truly optimal sites for solar energy production. The Laboyos Valley, where Pitalito is situated, offers perhaps the best balance of suitable terrain and practical development considerations, with its relatively flat topography and good solar exposure conditions. Areas immediately surrounding the urban center, extending several kilometers outward where the valley maintains its width, present the most promising opportunities for large-scale solar PV development in this topographically complex region.

Colombia solar PV Stats as a country

Colombia ranks 74th in the world for cumulative solar PV capacity, with 184 total MW's of solar PV installed. Each year Colombia is generating 4 Watts from solar PV per capita (Colombia ranks 81st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Colombia?

Yes, there are several incentives for businesses wanting to install solar energy in Colombia. The Colombian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity generated by their solar systems back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Colombia? Please reach out to us and help us keep this information current. Thanks!
