Santa Rosa de Cabal, Colombia presents a moderately favorable location for year-round solar PV energy generation. Located in the tropics at coordinates 4.8639°N, -75.6238°W, this area benefits from consistent sunlight throughout the year, with seasons characterized more by wet and dry periods rather than dramatic temperature variations.

Solar Energy Production Potential

The solar energy output at Santa Rosa de Cabal shows relatively stable performance across all seasons. The location can generate the following electricity per kilowatt of installed solar capacity:

• Summer: 4.99 kWh per day
• Autumn: 5.11 kWh per day
• Winter: 4.84 kWh per day
• Spring: 4.77 kWh per day

Autumn emerges as the most productive season for solar generation, while spring shows the lowest output. However, the variation between seasons is relatively modest, with only a 0.34 kWh difference between the best and worst performing seasons. For optimal year-round solar production at this location, fixed solar panels should be tilted at 4 degrees facing south. This shallow angle reflects the location's proximity to the equator, where the sun maintains a high position in the sky throughout the year.

Environmental and Weather Challenges

Several significant factors in Santa Rosa de Cabal can impede solar energy production. The region's tropical climate brings substantial rainfall during wet seasons, which can reduce solar irradiance and create cloudy conditions that limit panel efficiency. The area's mountainous terrain in the Colombian Andes can create localized weather patterns, including frequent cloud formation and potential shading from surrounding peaks during certain times of day. High humidity levels common to tropical regions can also affect panel performance over time. Volcanic ash from nearby volcanic activity in the region poses another concern, as ash deposits can accumulate on solar panels and significantly reduce their efficiency. The tropical environment also promotes rapid vegetation growth, which can create shading issues if not properly managed.

Preventative Installation Measures

To maximize solar energy production despite these challenges, several installation strategies should be implemented. Regular cleaning schedules are essential to remove dust, ash, and debris that accumulate on panels, particularly during and after volcanic activity or dust storms. Proper panel mounting systems should account for potential ash loading and ensure adequate drainage to prevent water accumulation during heavy rains. Installing panels with sufficient ground clearance helps prevent vegetation from creating shadows and allows for easier maintenance access. Site selection becomes crucial in mountainous terrain. Conducting thorough shade analysis throughout different times of day and seasons helps identify locations with minimal obstruction from surrounding topography. Additionally, using micro-inverters or power optimizers can help minimize the impact when individual panels experience shading or reduced performance. Implementing robust monitoring systems allows for quick identification of performance issues related to weather events or environmental factors, enabling prompt corrective action to maintain optimal energy generation.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 173 locations across Colombia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Colombia by location

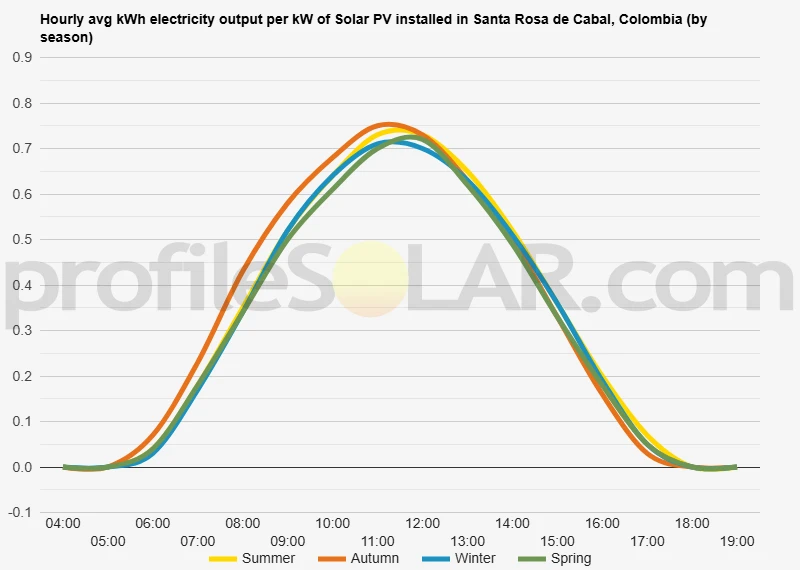

Solar output per kW of installed solar PV by season in Santa Rosa De Cabal

Seasonal solar PV output for Latitude: 4.8639, Longitude: -75.6238 (Santa Rosa De Cabal, Colombia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° South in Santa Rosa De Cabal, Colombia

To maximize your solar PV system's energy output in Santa Rosa De Cabal, Colombia (Lat/Long 4.8639, -75.6238) throughout the year, you should tilt your panels at an angle of 4° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Santa Rosa De Cabal, Colombia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Santa Rosa De Cabal, Colombia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	10° South in Autumn	21° South in Winter	2° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Santa Rosa De Cabal, Colombia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Santa Rosa De Cabal, Colombia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Santa Rosa De Cabal, Colombia

Topographical Features of Santa Rosa de Cabal

Santa Rosa de Cabal sits in the heart of Colombia's coffee-growing region within the department of Risaralda, positioned on the western slopes of the Central Cordillera of the Andes Mountains. The town itself is located at an elevation of approximately 1,850 meters above sea level, nestled in a landscape characterized by rolling hills, steep mountain slopes, and deep river valleys that have been carved by centuries of volcanic and tectonic activity. The terrain around Santa Rosa de Cabal is predominantly mountainous, with dramatic elevation changes occurring over relatively short distances. The area forms part of the broader Eje Cafetero or Coffee Axis region, where the topography consists of a complex network of ridges, valleys, and plateaus created by ancient volcanic processes. The landscape is punctuated by numerous streams and rivers that flow down from the high peaks toward the Magdalena and Cauca river systems.

Geological and Climatic Influences on Terrain

The region's topography has been significantly shaped by its proximity to several major volcanic peaks, including the nearby Los Nevados National Natural Park, which contains some of Colombia's highest mountains. This volcanic heritage has created a landscape of fertile soils but also one marked by steep gradients and unstable slopes in many areas. The combination of high altitude, abundant rainfall, and volcanic soils has resulted in extensive cloud forest coverage on many slopes, particularly those facing the prevailing winds from the Pacific Ocean. The undulating terrain is characterized by numerous microclimates created by the varying elevations and orientations of slopes. South-facing slopes tend to receive more direct sunlight throughout the day, while north-facing slopes often remain shaded and cooler. The complex topography creates natural wind corridors and areas where fog and clouds frequently accumulate, particularly during certain seasons.

Optimal Areas for Large-Scale Solar Development

Despite the generally mountainous character of the region, several topographical features make certain areas more suitable for large-scale solar photovoltaic installations. The most promising locations would be the relatively flatter plateau areas and gentle slopes found in the valleys between major ridges. These areas typically occur at elevations between 1,200 and 1,600 meters, where the terrain is less steep and more accessible for construction and maintenance activities. The areas immediately to the west and southwest of Santa Rosa de Cabal, toward the municipalities of Pereira and Dosquebradas, offer some of the most favorable topographical conditions. Here, the landscape transitions from the steeper Andean slopes to more moderate terrain as it approaches the Cauca River valley. These transitional zones often feature broader, gentler slopes and occasional flat or nearly flat areas that could accommodate large solar arrays. South-facing slopes with gradients of less than 15 degrees would be particularly well-suited for solar installations, as they can take advantage of optimal sun angles while remaining accessible for construction equipment. Areas that have been previously cleared for agriculture, particularly former pastureland or coffee plantations on moderate slopes, would require minimal additional site preparation.

Infrastructure and Access Considerations

The mountainous topography presents both challenges and opportunities for solar development. While steep terrain can complicate construction and increase costs, the region benefits from relatively good road infrastructure developed to support the coffee industry. The main highway connecting Santa Rosa de Cabal to Pereira and Manizales provides access to several areas with suitable topographical characteristics for solar development. Areas near existing electrical transmission infrastructure would be most practical for large-scale solar projects. The flatter terrain found in some of the wider valley floors, particularly those that follow major streams and rivers, often coincides with existing power lines and road networks. These locations would minimize the additional infrastructure required to connect solar installations to the electrical grid while taking advantage of the most suitable topographical conditions available in this mountainous region.

Colombia solar PV Stats as a country

Colombia ranks 74th in the world for cumulative solar PV capacity, with 184 total MW's of solar PV installed. Each year Colombia is generating 4 Watts from solar PV per capita (Colombia ranks 81st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Colombia?

Yes, there are several incentives for businesses wanting to install solar energy in Colombia. The Colombian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity generated by their solar systems back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Colombia? Please reach out to us and help us keep this information current. Thanks!
