Saravena, Arauca Department, Colombia represents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropical zone at coordinates 6.9641°N, -71.8863°W, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic changes in solar availability.

Solar Energy Production Potential

The solar energy output data for Saravena demonstrates excellent year-round performance. Autumn delivers the highest production at 5.64 kWh per day per installed kW, closely followed by winter at 5.48 kWh/day per kW. Spring generates 4.98 kWh/day per kW, while summer produces 4.72 kWh/day per kW. This means the optimal solar generation period occurs during autumn and winter months, when energy production is approximately 19% higher than during the summer low point. The relatively small variation between seasons - only about 0.92 kWh difference between peak and minimum production - indicates exceptional stability for solar energy planning. For maximum year-round energy capture, solar panels should be installed at a fixed tilt angle of 8 degrees facing south. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance potential, accounting for Earth's elliptical orbit patterns.

Environmental Challenges and Solutions

Several environmental factors in Saravena could potentially impact solar panel performance, though most can be effectively managed with proper installation practices. The tropical climate brings significant rainfall during wet seasons, which can create challenges for solar installations. Heavy precipitation may temporarily reduce energy output and can lead to water accumulation if drainage systems are inadequate. However, rain also provides natural cleaning of panel surfaces, removing dust and debris that would otherwise reduce efficiency. High humidity levels common in tropical regions can accelerate corrosion of metal components and electrical connections. This environmental factor requires careful attention to material selection and protective measures during installation. Dust accumulation during dry seasons can significantly reduce panel efficiency. In agricultural areas surrounding Saravena, Arauca Department, airborne particles from farming activities may compound this issue.

Preventative Installation Measures

To maximize solar energy production despite these environmental challenges, several preventative measures should be implemented:

• Install panels with adequate spacing and ventilation to prevent moisture buildup and allow proper airflow for cooling
• Use marine-grade or tropical-rated electrical components and wiring designed to withstand high humidity conditions
• Apply protective coatings to metal mounting systems and ensure all connections are properly sealed against moisture infiltration
• Design mounting systems with proper drainage channels to prevent water accumulation around panel frames
• Establish regular cleaning schedules, particularly during dry seasons when dust accumulation is highest

The consistent solar resource availability in Saravena makes it an excellent candidate for solar PV installations. With proper planning and installation techniques that address the tropical environmental conditions, solar energy systems can achieve reliable, high-performance operation throughout the year, taking full advantage of the location's favorable solar energy potential.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 173 locations across Colombia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Colombia by location

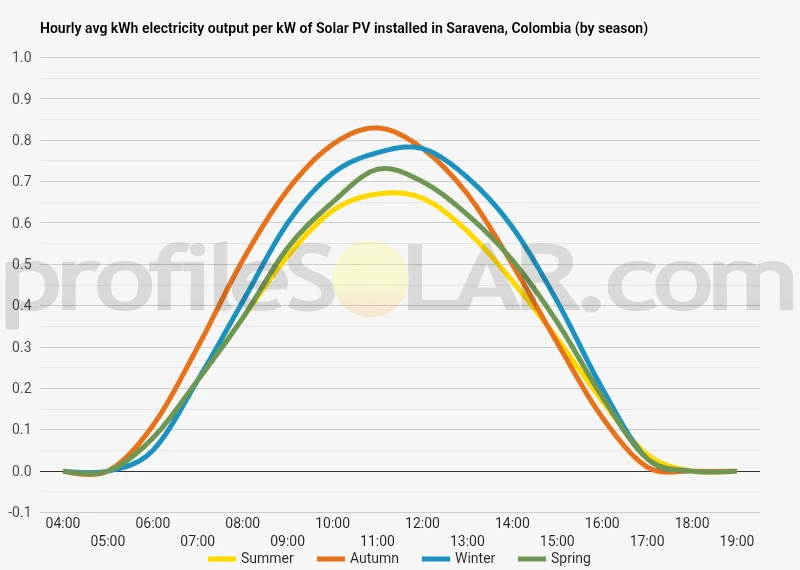

Solar output per kW of installed solar PV by season in Saravena

Seasonal solar PV output for Latitude: 6.9641, Longitude: -71.8863 (Saravena, Colombia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 8° South in Saravena, Colombia

To maximize your solar PV system's energy output in Saravena, Colombia (Lat/Long 6.9641, -71.8863) throughout the year, you should tilt your panels at an angle of 8° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Saravena, Colombia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Saravena, Colombia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 8° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	13° South in Autumn	23° South in Winter	1° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Saravena, Colombia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Saravena, Colombia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Saravena, Colombia

Topographical Features Around Saravena

Saravena sits in the eastern foothills of Colombia's Cordillera Oriental, part of the northern Andes mountain range. The city itself is positioned at approximately 200 meters above sea level, nestled in a transitional zone where the Andean mountains gradually give way to the vast Orinoco plains that extend eastward into Venezuela. This location creates a distinctive landscape characterized by rolling hills, gentle slopes, and broad valleys that drain toward the Orinoco basin. The terrain immediately surrounding Saravena features undulating topography with moderate elevation changes. To the west, the land rises more dramatically as it approaches the main Andean cordillera, while to the east, the landscape becomes increasingly flat as it transitions into the expansive llanos or plains region. The area is drained by several rivers and streams that flow generally eastward, creating fertile valleys interspersed with low ridges and hills. The region experiences a tropical climate with distinct wet and dry seasons, supporting a landscape that transitions from Andean cloud forest vegetation at higher elevations to tropical grasslands and gallery forests along waterways in the lower areas. The soils are generally well-drained on the hillsides and slopes, though some valley bottoms may experience seasonal flooding during the wet season.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Saravena would be the gently sloping hillsides and elevated plateaus that lie between the city and the eastern plains. These areas offer several advantages including good drainage, minimal risk of flooding, and relatively stable ground conditions. The moderate slopes provide natural advantages for solar panel orientation while remaining gentle enough to allow for cost-effective construction and maintenance access. The eastern approaches to Saravena, where the topography begins to flatten toward the llanos, present particularly attractive opportunities. These areas combine the benefits of relatively level terrain with good elevation above potential flood zones. The land here typically features broad, open spaces with minimal tree cover, reducing the need for extensive clearing operations that would increase project costs and environmental impact. Areas situated on the interfluves between major drainage systems would be especially well-suited for solar development. These ridge-like areas between river valleys offer stable, well-drained ground conditions while maintaining accessibility via existing road networks. The natural clearing of vegetation on many of these elevated areas, combined with their distance from major waterways, minimizes both environmental concerns and flood risks. The southern and southeastern sectors around Saravena also show promise, where the landscape consists of gently rolling terrain with good sun exposure and minimal shading from surrounding topographical features. These areas benefit from being sufficiently elevated to avoid seasonal water accumulation while remaining accessible for construction and ongoing maintenance operations.

Colombia solar PV Stats as a country

Colombia ranks 74th in the world for cumulative solar PV capacity, with 184 total MW's of solar PV installed. Each year Colombia is generating 4 Watts from solar PV per capita (Colombia ranks 81st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Colombia?

Yes, there are several incentives for businesses wanting to install solar energy in Colombia. The Colombian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity generated by their solar systems back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Colombia? Please reach out to us and help us keep this information current. Thanks!
