Location estimate

Valledupar

Cesar Department · Colombia

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

5.78

kWh/day

Autumn

5.58

kWh/day

Winter

6.15

kWh/day

Spring

5.92

kWh/day

Shared scale: 0–7.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Valledupar, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 5.78 5.78 × 1 kWp = 5.78 kWh/day
Autumn 5.58 5.58 × 1 kWp = 5.58 kWh/day
Winter 6.15 6.15 × 1 kWp = 6.15 kWh/day
Spring 5.92 5.92 × 1 kWp = 5.92 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
5.78
Autumn · kWh/day
5.58
Winter · kWh/day
6.15
Spring · kWh/day
5.92

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 10 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
10°
Facing direction
South

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Jun, Jul, Aug
6°North
Autumn
Sep, Oct, Nov
16°South
Winter
Dec, Jan, Feb
26°South
Spring
Mar, Apr, May
4°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Valledupar, Cesar Department, Colombia.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 6 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

6° tilt · North

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 16 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

16° tilt · South

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 26 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

26° tilt · South

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 4 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

4° tilt · South

Illustrative direction; exact azimuth not recorded.

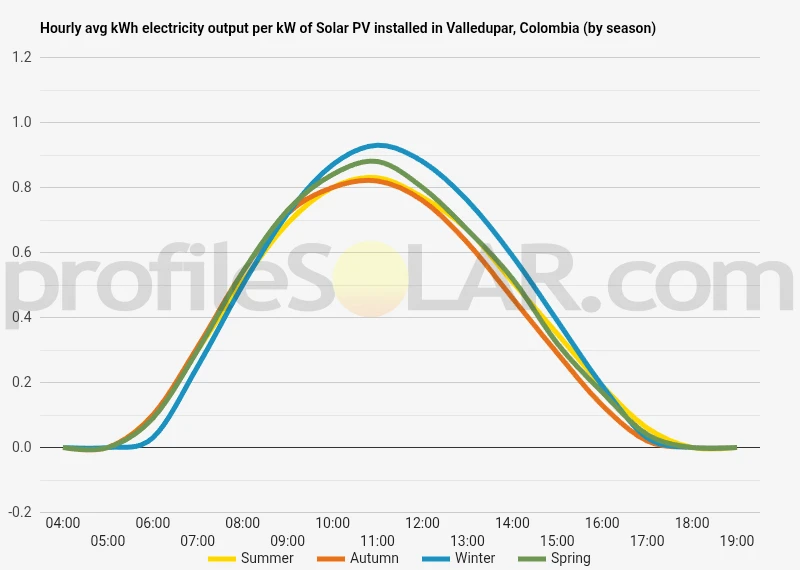

Historical hourly-by-season solar output chart for Valledupar, Colombia. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Valledupar, Colombia

Hourly profiles by season — Valledupar, Colombia · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Valledupar, Colombia · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Valledupar

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 2.2 m

Proportional side viewDesign sun: ≈ 56.08° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 0.23 m
Added margin
≈ 0 m
Gap including margin
≈ 0.23 m
Panel horizontal footprint
≈ 1.97 m
Panel vertical rise
≈ 0.35 m
Pitch before margin
≈ 2.2 m

Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
10°
Added margin
0 m
Latitude from the catalogue
10.465300000000000000° (Northern Hemisphere)
Panel horizontal footprint
1.969615506024416 m
Panel vertical rise
0.34729635533386066 m
Calculated clear gap
0.2335061955927442 m
Pitch before margin
2.2031217016171603 m
Gap including margin
0.2335061955927442 m
Row pitch including margin
2.2031217016171603 m
Design solar elevation
56.08491715318636°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Valledupar

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

Valledupar, Colombia, at 10.4653° N, 73.2498° W, has a relatively close set of seasonal solar electricity estimates. Average daily production per kW of rated installed capacity is 5.78 kWh/day in summer, 5.58 kWh/day in autumn, 6.15 kWh/day in winter and 5.92 kWh/day in spring. Winter is the highest of these averages and autumn the lowest.

Read the full article

This close seasonal grouping is useful when comparing generation with electricity demand through the year. It does not mean the daily supply is constant. Cloud, shade and equipment operation can cause individual days to differ from the seasonal average, and the figures alone do not establish exceptional reliability or a guaranteed return. The recorded fixed-angle reference is 10 degrees facing South. It is a broad output-weighted setting based on simplified solar geometry, rather than a property-specific optimum. An actual array also responds to roof pitch and direction, the local horizon and the position of neighbouring obstructions. Valledupar stands beside the Guatapurí in the Cesar valley. The Sierra Nevada de Santa Marta lies to the west and the Serranía del Perijá to the east. The mountain-to-valley relationship gives the city a more particular setting than a general tropical label: water descends from the Sierra Nevada toward the urban area and the wider valley. Higher cell temperature reduces module power according to the selected module's temperature coefficient. Adequate ventilation within the mounting design can help the equipment operate as intended, but no universal local loss or gain is assigned here. Likewise, cleaning should be based on observed soiling and equipment instructions. System capacity is best compared with the electricity use it is meant to serve. A seasonal output difference alone does not establish how much to oversize an array. The close four-season estimates support a useful initial comparison while retaining the need to understand the building or land actually proposed.

Topography around Valledupar

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

Valledupar occupies the northern Cesar valley beside the Guatapurí River. The municipality's territorial account places the Sierra Nevada de Santa Marta to the west and the Serranía del Perijá to the east. These are distinct mountain systems framing the wider valley landscape.

Read the full topography description

The city's connection to the Sierra Nevada is also expressed through the Guatapurí. The municipal statistical account traces the river from the high mountain landscape northwest of Valledupar through its tributary network. Its course links upland catchment, foothill and urban surroundings rather than forming an isolated feature within the city. At the city scale, the setting is comparatively subdued, while nearby foothills and hills provide a contrasting skyline. The national environmental characterisation describes a gentle fall across the urban area and identifies local hills as well as the much larger surrounding mountain structures. It is useful to distinguish those scales when describing the horizon from a particular site. A roof among buildings can experience shade that is largely unrelated to distant mountains. A property nearer a slope or river corridor has a different immediate setting, with vegetation and changes in ground level becoming more important. The regional valley label therefore cannot supply a single shading or drainage condition for all locations. Existing settlement, cultivation, river margins and ecological areas form part of the landscape. A ground-mounted layout needs to respond to those uses and to water movement over the actual site. Reduced relief does not automatically imply inexpensive grading, minimal vegetation clearance or spare transmission capacity. The valley and its mountain boundaries give the useful local physical framework. They do not identify a northward solar-development corridor toward La Paz or San Diego, nor designate any other municipality's land for arrays. A concrete property assessment should start with its present condition and use within this landscape.

Technical location reference

Approximate map point used for Valledupar, Colombia

This coordinate is the calculation reference for Valledupar, Colombia. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
10.465300000000000000, -73.249800000000000000
Originally displayed coordinate
lat10.4653 / long-73.2498

How the estimate works

How this Valledupar estimate was calculated

Here is how I calculated the location estimate for Valledupar, Colombia.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Valledupar Location estimate includes and leaves out

Use the Valledupar figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
