Varnsdorf, Ústecký kraj, Czechia presents moderate solar energy generation potential, though it faces typical challenges common to Central European locations in the Northern Temperate Zone. The seasonal variation in solar output is quite pronounced at this latitude of 50.9164°N, 14.615°E.

Seasonal Solar Performance

The solar energy production varies dramatically throughout the year in Varnsdorf. Summer months deliver the strongest performance at 5.38 kWh per day per kW of installed capacity, making this the prime season for solar generation. Spring offers reasonable output at 3.96 kWh per day per kW, representing the second-best period for solar energy production. Autumn sees a significant drop to 2.35 kWh per day per kW, while winter presents the most challenging conditions with only 1.02 kWh per day per kW. This winter figure represents less than one-fifth of the summer output, highlighting the substantial seasonal variation typical of higher latitude locations.

Optimal Panel Configuration

For fixed panel installations in Varnsdorf, Ústecký kraj, the ideal tilt angle is 43 degrees facing south to maximize total year-round solar production. This angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to determine the optimal compromise for annual energy generation.

Environmental and Weather Challenges

Several local factors in Varnsdorf can significantly impact solar energy production:

• Snow accumulation during winter months can completely block solar panels
• Frequent cloud cover and overcast conditions, particularly common in Central European climates
• Morning fog and mist, especially during autumn and winter seasons
• Dust and debris accumulation on panel surfaces
• Potential shading from surrounding buildings or vegetation

Preventative Measures for Better Performance

Several installation strategies can help maximize solar energy production despite these challenges:

• Install panels at steeper angles (around 50-60 degrees) to promote snow shedding, though this may slightly reduce summer efficiency
• Ensure adequate spacing between panel rows to minimize self-shading and allow snow to slide off
• Regular cleaning schedules, particularly important given the lower winter output when every bit of generation matters
• Strategic site selection to avoid areas prone to morning fog accumulation
• Careful consideration of nearby structures and trees that could cast shadows

The relatively low winter output means that any reduction in efficiency during these months has less absolute impact on annual generation. However, maximizing the strong summer and decent spring performance becomes crucial for overall system economics in Varnsdorf's climate conditions.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 74 locations across Czechia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Czechia by location

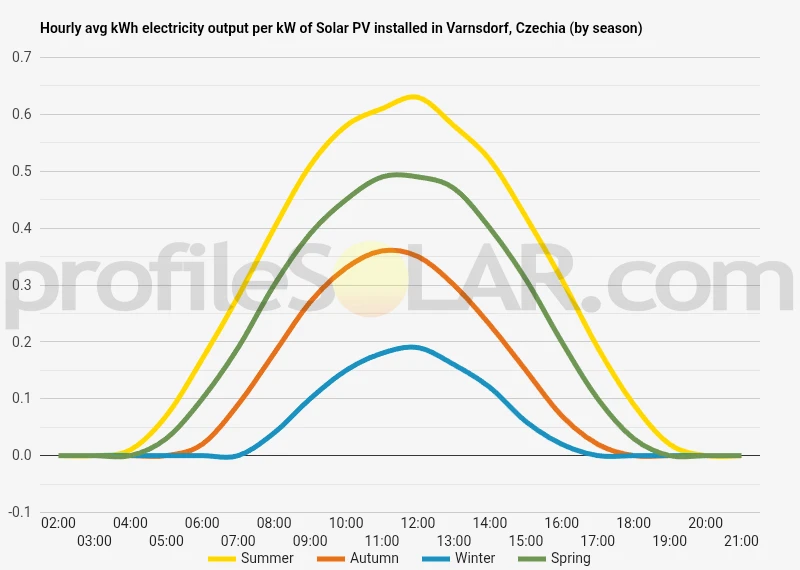

Solar output per kW of installed solar PV by season in Varnsdorf

Seasonal solar PV output for Latitude: 50.9164, Longitude: 14.615 (Varnsdorf, Czechia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Varnsdorf, Czechia

To maximize your solar PV system's energy output in Varnsdorf, Czechia (Lat/Long 50.9164, 14.615) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Varnsdorf, Czechia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Varnsdorf, Czechia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
34° South in Summer	53° South in Autumn	64° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Varnsdorf, Czechia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Varnsdorf, Czechia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Varnsdorf, Czechia

Topographical Features of the Varnsdorf Region

Varnsdorf sits in the northern reaches of the Czech Republic, nestled within the distinctive landscape of the Lusatian Highlands. This region forms part of the broader Bohemian Massif, characterized by rolling hills, gentle valleys, and scattered elevated plateaus. The terrain around Varnsdorf exhibits a moderate elevation profile, with the town itself positioned at approximately 300 meters above sea level.

The surrounding landscape features a mix of forested hills and open agricultural areas, with elevation changes that are generally gradual rather than steep. The Lusatian Mountains rise to the north and northeast, creating a backdrop of higher terrain that reaches elevations of 400 to 600 meters in the immediate vicinity. These mountains are ancient formations, worn smooth by millennia of erosion, resulting in rounded peaks and broad ridges rather than sharp, jagged summits.

The region's topography is heavily influenced by its position within the Elbe River basin system. Several smaller streams and tributaries flow through the area, carving shallow valleys and creating a gently undulating landscape. The Mandava River, which flows through Varnsdorf itself, has created a relatively flat corridor that extends both east and west from the town center.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie primarily to the south and southwest of Varnsdorf, where the terrain opens into broader, flatter agricultural plains. These areas benefit from reduced topographical shading and offer substantial contiguous parcels of land suitable for large-scale development. The gentle southern slopes that characterize much of this region provide excellent orientation for solar panel arrays while maintaining relatively easy access for construction and maintenance activities.

The elevated plateaus found scattered throughout the Lusatian Highlands present another excellent opportunity for solar development. These flat or gently sloping elevated areas typically experience fewer issues with morning fog and atmospheric moisture that can sometimes affect lower-lying regions. The plateaus also tend to have fewer trees and less intensive agricultural use, making land acquisition potentially more straightforward.

Areas along the broader river valleys, particularly those running east-west, offer additional potential for solar installations. The Mandava River valley and similar corridors provide naturally cleared areas with minimal slope variations. While these locations may require careful consideration of flood risk and environmental sensitivity, they often present fewer obstacles in terms of terrain modification and site preparation.

The open agricultural lands extending toward the southwest offer perhaps the greatest potential for utility-scale solar development. This direction takes advantage of the region's transition from the more mountainous terrain near the German border toward the flatter interior regions of northern Bohemia. The combination of suitable topography, existing infrastructure access, and reduced environmental constraints makes these areas particularly attractive for large solar installations.
