Solar PV Analysis of Al Fayyum, Egypt
The location at Al Fayyum, Faiyum, Egypt is quite suitable for solar energy production throughout the year due to its position in the Northern Sub Tropics. The amount of electricity generated from a kilowatt (kW) of installed solar panels varies by season. During summer, you can expect about 8.65 kilowatt hours (kWh) per day, which is quite high and makes it an ideal time for solar power generation. In autumn and winter, energy production drops to around 5.89 kWh/day and 4.40 kWh/day respectively but picks up again in spring with an average output of about 7.83 kWh/day.
In order to maximize total year-round production from your solar photovoltaic (PV) system at this location, it's best to tilt your panels at an angle of 25 degrees towards the south.
As far as local factors that could potentially hinder solar production are concerned, it would largely depend on specific environmental or weather conditions prevalent in Al Fayyum area - such as dust storms or heavy cloud cover which might block sunlight intermittently; however these aren't typically significant enough to drastically impact overall performance.
To mitigate any potential issues arising from these conditions when installing your system:
1) You could consider installing dust shields or regularly cleaning the panels to prevent accumulation of dust that could obstruct sunlight.
2) For periods with heavy cloud cover - while there isn't much that can be done physically with installation itself since clouds are beyond our control; having a battery storage system integrated within your setup can help store excess power produced during sunny periods which then can be used when direct sun exposure is less optimal.
3) Also ensuring proper maintenance and monitoring will aid in identifying any potential problems early so they can be addressed promptly thus maintaining maximum efficiency.
Overall though given the high levels of sunshine experienced here particularly during summer and spring seasons alongwith appropriate panel positioning & care; Al Fayyum offers a highly favorable environment for solar power generation.
Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 80 locations across Egypt. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Egypt by location

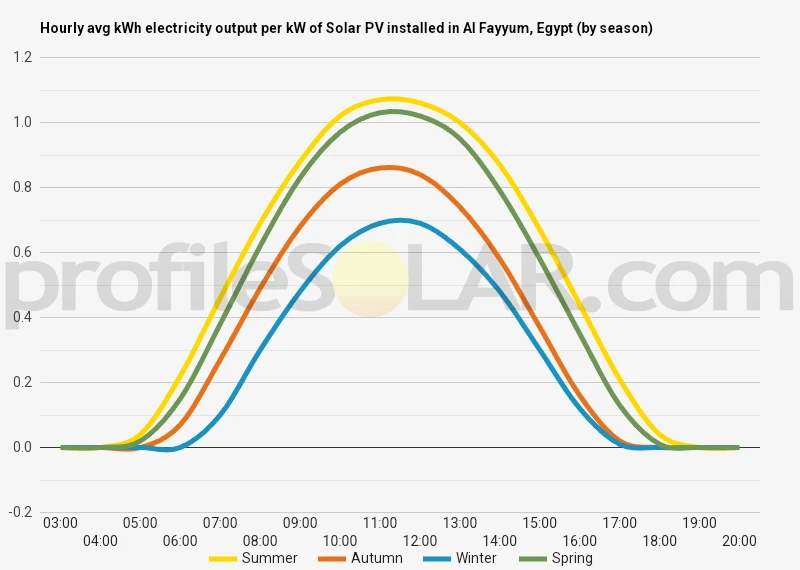

Solar output per kW of installed solar PV by season in Al Fayyum
Seasonal solar PV output for Latitude: 29.3082, Longitude: 30.8446 (Al Fayyum, Egypt), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 25° South in Al Fayyum, Egypt
To maximize your solar PV system's energy output in Al Fayyum, Egypt (Lat/Long 29.3082, 30.8446) throughout the year, you should tilt your panels at an angle of 25° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Al Fayyum, Egypt
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Al Fayyum, Egypt. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 13° South in Summer | 34° South in Autumn | 44° South in Winter | 22° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Al Fayyum, Egypt
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Al Fayyum, Egypt.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Al Fayyum, Egypt
Al Fayyum, Egypt is located in a depression or basin in the desert of western Egypt. The land around Al Fayyum is generally flat with some gentle undulations and slopes. It's surrounded by arid desert lands and sparse vegetation. There are also several bodies of water nearby, including Lake Qarun to the north and the Nile River to the east.
Given its geographical location, climate conditions (high solar irradiation levels), and topography (flat expanses), Al Fayyum would be suitable for large-scale solar PV installations. The most suitable areas for such installations would likely be:
1) Desert Areas: The vast expanses of flat desert land surrounding Al Fayyum offer ample space for large-scale solar farms without significant obstructions to sunlight.
2) Unused Agricultural Land: Some agricultural lands that are no longer in use could potentially be repurposed as sites for solar farms.
3) Near Existing Infrastructure: Areas close to existing power infrastructure would also be ideal because they can facilitate easier connection to the grid.
It's important to note that any potential site should undergo a thorough assessment considering various factors like soil stability, access roads, proximity to transmission lines etc., before deciding on installation. Also environmental impact assessment should be carried out especially near sensitive ecological areas like Lake Qarun which is a protected area.
Egypt solar PV Stats as a country
Egypt ranks 34th in the world for cumulative solar PV capacity, with 1,675 total MW's of solar PV installed. Each year Egypt is generating 17 Watts from solar PV per capita (Egypt ranks 67th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Egypt?
Yes, there are incentives for businesses wanting to install solar energy in Egypt. The Egyptian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include feed-in tariffs, net metering, tax exemptions, and subsidies. Additionally, the government has established a Renewable Energy Authority (REA) to oversee the development of renewable energy projects in Egypt.
Do you have more up to date information than this on incentives towards solar PV projects in Egypt? Please reach out to us and help us keep this information current. Thanks!
