Badr, Cairo Governorate, Egypt represents a highly favorable location for year-round solar photovoltaic energy generation. Located in the Northern Sub Tropics at coordinates 30.1409°N, 31.7008°E, this area benefits from abundant sunshine throughout most of the year, making it an excellent candidate for solar power installations.

Seasonal Solar Performance

The solar energy output at Badr varies significantly across the seasons, with summer providing the peak generation period. During summer months, solar panels can produce an impressive 8.48 kWh per day for each kilowatt of installed capacity. Spring follows as the second-best season with 7.52 kWh per day per kW, while autumn drops to 5.56 kWh per day per kW. Winter represents the lowest production period at 3.96 kWh per day per kW. The ideal times for solar generation at this location are clearly summer and spring, when the combination of longer days and more direct sunlight creates optimal conditions. Even during the winter months, the output remains reasonably strong compared to many other global locations, making Badr suitable for year-round solar energy production.

Optimal Panel Configuration

For fixed panel installations at Badr, Cairo Governorate, the ideal tilt angle to maximize total year-round solar production is 26 degrees facing South. This angle is calculated by analyzing daily solar elevation angles at this latitude, determining optimal panel tilts, and weighting these angles by daily photovoltaic potential using comprehensive solar irradiance data that accounts for Earth's elliptical orbit.

Environmental and Weather Challenges

Several significant environmental factors could impact solar production efficiency at Badr, Cairo Governorate, Egypt:

• Desert dust and sandstorms: The location's proximity to desert regions means frequent dust accumulation on solar panels, which can reduce efficiency by 10-30% if not properly managed
• Extreme heat: High summer temperatures can reduce panel efficiency, as photovoltaic cells typically lose about 0.4% efficiency for every degree Celsius above 25°C
• Humidity and salt air: Being relatively close to the Mediterranean coast, salt-laden air can cause corrosion of metal components over time
• Occasional severe weather: While rare, intense storms or hail could potentially damage panels

Preventative Measures for Optimal Performance

To ensure maximum energy production despite these challenges, several preventative measures should be implemented: Regular cleaning schedules are essential, ideally automated cleaning systems or frequent manual cleaning to remove dust buildup. Installing panels with anti-soiling coatings can also help reduce dust adhesion. Proper ventilation design beneath panels helps combat heat buildup, while selecting panels with better high-temperature performance coefficients will maintain efficiency during extreme heat. Adequate spacing between panel rows ensures good airflow. Using marine-grade aluminum frames and stainless steel components helps resist corrosion from salt air. Regular inspection and maintenance of electrical connections prevents degradation from humidity exposure. Robust mounting systems designed to withstand high winds and potential hail damage should be specified, along with comprehensive insurance coverage for weather-related incidents. Despite these environmental challenges, Badr's exceptional solar resource makes it an outstanding location for solar energy generation when proper installation and maintenance practices are followed.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 80 locations across Egypt. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Egypt by location

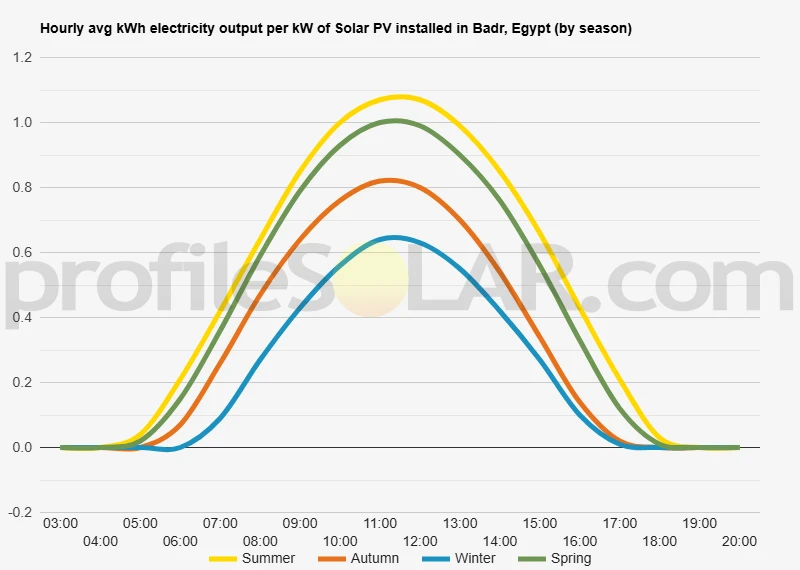

Solar output per kW of installed solar PV by season in Badr

Seasonal solar PV output for Latitude: 30.1409, Longitude: 31.7008 (Badr, Egypt), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° South in Badr, Egypt

To maximize your solar PV system's energy output in Badr, Egypt (Lat/Long 30.1409, 31.7008) throughout the year, you should tilt your panels at an angle of 26° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Badr, Egypt

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Badr, Egypt. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	35° South in Autumn	45° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Badr, Egypt

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Badr, Egypt.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Badr, Egypt

Topographical Features of the Badr Region

The area around Badr, Egypt sits within the expansive desert landscape that characterizes much of the country's interior regions. This location lies approximately 165 kilometers southeast of Cairo, positioned in a transitional zone between the Nile Delta's fertile agricultural lands to the northwest and the vast Eastern Desert that stretches toward the Red Sea. The terrain here consists primarily of relatively flat to gently undulating desert plains, with elevations ranging from about 200 to 400 meters above sea level. The landscape is dominated by sandy and rocky desert surfaces, interspersed with occasional low hills and scattered wadis - dry riverbeds that may carry water only during rare rainfall events. These geological features create a generally arid environment with minimal vegetation cover, consisting mainly of sparse desert shrubs and grasses that have adapted to the harsh conditions. The substrate varies between areas of loose sand, compacted desert pavement, and exposed bedrock formations.

Climate and Environmental Conditions

The region experiences a hot desert climate typical of Egypt's interior areas, with extremely dry conditions prevailing throughout most of the year. Rainfall is minimal and irregular, occurring primarily during brief winter periods. The combination of low humidity, clear skies, and minimal cloud cover creates ideal conditions for solar energy generation. Dust storms can occur periodically, particularly during spring months, though these are generally less frequent than in more exposed desert areas. Temperature variations between day and night can be significant, especially during winter months, while summer temperatures regularly exceed 40 degrees Celsius during daylight periods. The persistent dry conditions and low atmospheric moisture content contribute to excellent solar irradiance levels throughout the year.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Badr vicinity would be the extensive flat desert plains that stretch to the south and east of the settlement. These areas offer several key advantages for solar development, including minimal topographical obstacles, stable geological foundations, and virtually no competing land uses such as agriculture or residential development. The relatively level terrain in these directions would minimize the need for extensive site preparation and grading work, reducing construction costs and environmental impact. The sandy desert substrate, while requiring appropriate foundation design, provides adequate support for solar mounting systems when properly engineered. Additionally, these areas are sufficiently distant from populated zones to avoid conflicts with existing infrastructure while remaining accessible for construction and maintenance activities. Areas to the immediate north and west of Badr are less suitable due to their proximity to agricultural zones and the gradually increasing population density as one approaches the Nile Delta region. The presence of irrigation channels, roads, and scattered settlements in these directions would complicate large-scale solar development and potentially create shading issues.

Infrastructure and Accessibility Considerations

The desert plains surrounding Badr benefit from reasonable accessibility via existing road networks that connect the area to major population centers. The relatively stable terrain would facilitate the construction of access roads and the transportation of heavy equipment and materials needed for solar installation projects. The flat topography also simplifies the logistics of cable routing and electrical infrastructure development. The absence of significant elevation changes across potential solar sites would allow for efficient panel layout designs and minimize issues related to self-shading between panel arrays. This topographical uniformity extends across large continuous areas, making it possible to develop substantial solar farms without the need to work around major geographical obstacles or fragmented land parcels.

Egypt solar PV Stats as a country

Egypt ranks 34th in the world for cumulative solar PV capacity, with 1,675 total MW's of solar PV installed. Each year Egypt is generating 17 Watts from solar PV per capita (Egypt ranks 67th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Egypt?

Yes, there are incentives for businesses wanting to install solar energy in Egypt. The Egyptian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include feed-in tariffs, net metering, tax exemptions, and subsidies. Additionally, the government has established a Renewable Energy Authority (REA) to oversee the development of renewable energy projects in Egypt.

Do you have more up to date information than this on incentives towards solar PV projects in Egypt? Please reach out to us and help us keep this information current. Thanks!
