Heliopolis, Cairo Governorate, Egypt, located in the northern suburbs of Cairo, offers a promising environment for solar energy generation through photovoltaic (PV) systems. This location, situated in the Northern Sub-Tropics, experiences substantial solar radiation throughout the year, making it a favorable spot for solar power production.

Seasonal Solar Energy Output

The solar energy potential in Heliopolis varies significantly across seasons. Summer stands out as the most productive period, with an impressive daily output of 8.49 kWh per kW of installed solar capacity. Spring follows closely, yielding 7.52 kWh/day. Autumn sees a moderate decrease in production at 5.57 kWh/day, while winter experiences the lowest output at 3.95 kWh/day. This seasonal variation indicates that Heliopolis is particularly well-suited for solar energy generation during the warmer months. The long, sunny days of summer and spring provide optimal conditions for maximizing solar PV output. However, even during the less productive winter months, the region still receives a considerable amount of solar radiation, allowing for consistent energy generation year-round.

Optimal Panel Tilt Angle

For fixed solar panel installations in Heliopolis, Cairo Governorate, the ideal tilt angle to maximize year-round energy production is 26 degrees facing South. This angle is calculated based on the location's latitude and seasonal sun positions, ensuring that panels capture the maximum amount of sunlight throughout the year.

Environmental Considerations

While Heliopolis presents favorable conditions for solar energy production, there are some environmental factors to consider: 1. Dust and sand: The region's arid climate can lead to dust accumulation on solar panels, potentially reducing their efficiency. 2. High temperatures: Extreme heat during summer months may slightly decrease panel efficiency. To mitigate these issues, regular cleaning and maintenance of solar panels is crucial. Additionally, installing panels with proper ventilation and using heat-resistant materials can help maintain efficiency during hot periods. In conclusion, Heliopolis, Cairo Governorate, Egypt, offers an excellent location for solar PV energy generation, with particularly high potential during summer and spring. While some environmental challenges exist, they can be effectively managed with proper installation and maintenance practices, making solar energy a viable and sustainable option for this region.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 80 locations across Egypt. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Egypt by location

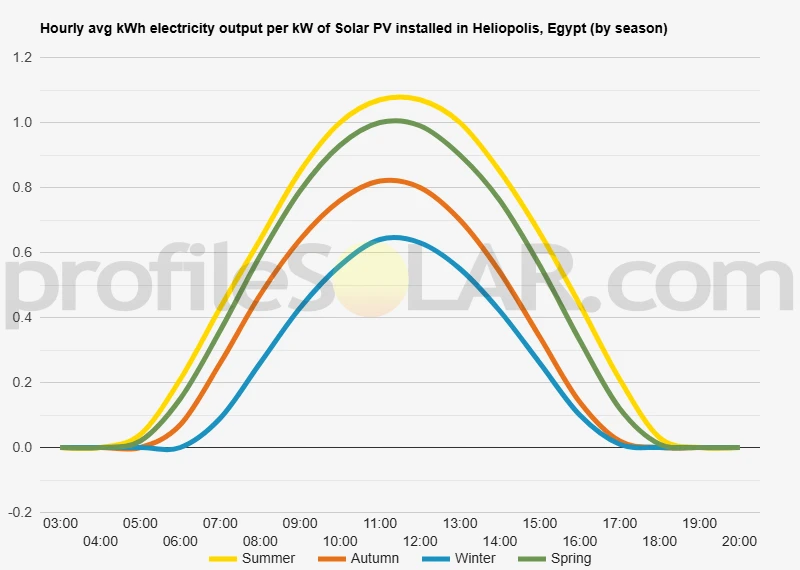

Solar output per kW of installed solar PV by season in Heliopolis

Seasonal solar PV output for Latitude: 30.1091, Longitude: 31.3744 (Heliopolis, Egypt), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° South in Heliopolis, Egypt

To maximize your solar PV system's energy output in Heliopolis, Egypt (Lat/Long 30.1091, 31.3744) throughout the year, you should tilt your panels at an angle of 26° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Heliopolis, Egypt

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Heliopolis, Egypt. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	35° South in Autumn	45° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Heliopolis, Egypt

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Heliopolis, Egypt.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Heliopolis, Egypt

Heliopolis, located in northeastern Cairo, Egypt, sits on relatively flat terrain characteristic of the Nile Delta region. The area around Heliopolis is predominantly urban, with a mix of residential and commercial developments sprawling across the landscape. The topography is generally low-lying and uniform, with minimal natural elevation changes. The city itself is built on what was once desert land, transformed over time into a bustling urban center. As you move away from the heart of Heliopolis, the terrain gradually transitions to more open areas with fewer buildings, eventually giving way to the surrounding desert landscape that is typical of much of Egypt.

Surrounding Areas

To the east and northeast of Heliopolis, the land becomes increasingly arid and desert-like. This transition zone between the urban area and the open desert presents potential opportunities for large-scale solar PV installations. The flat, open terrain in these areas would be well-suited for solar panel arrays, as there are fewer obstacles to block sunlight and ample space for extensive installations. The areas to the north and northwest of Heliopolis, stretching towards the Nile Delta, are more densely populated and agriculturally developed. While these regions receive abundant sunlight, the competition for land use with farming and urban expansion makes them less ideal for large-scale solar projects.

Optimal Locations for Solar PV

The most suitable areas for large-scale solar PV installations near Heliopolis would be the desert regions to the east and northeast. These areas offer several advantages: 1. Abundant open space with minimal competing land uses 2. Flat terrain that simplifies construction and maintenance 3. High levels of solar irradiation due to the clear desert skies 4. Proximity to existing power infrastructure in the greater Cairo area Specific locations that could be considered include the desert areas east of Cairo International Airport and the expanses stretching towards the Suez governorate. These regions provide the necessary space and environmental conditions for efficient solar energy production while remaining reasonably close to the power demand centers of Cairo and its suburbs. It's worth noting that while the immediate vicinity of Heliopolis may not offer vast tracts of suitable land for solar PV, the nearby desert areas present significant potential for renewable energy development, which could help meet the growing power needs of the region in a sustainable manner.

Egypt solar PV Stats as a country

Egypt ranks 34th in the world for cumulative solar PV capacity, with 1,675 total MW's of solar PV installed. Each year Egypt is generating 17 Watts from solar PV per capita (Egypt ranks 67th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Egypt?

Yes, there are incentives for businesses wanting to install solar energy in Egypt. The Egyptian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include feed-in tariffs, net metering, tax exemptions, and subsidies. Additionally, the government has established a Renewable Energy Authority (REA) to oversee the development of renewable energy projects in Egypt.

Do you have more up to date information than this on incentives towards solar PV projects in Egypt? Please reach out to us and help us keep this information current. Thanks!
