Kafr ash Shaykh, Egypt, located in the Northern Sub Tropics, presents a favorable environment for solar energy generation throughout the year. This location, with coordinates 30.8038°N, 31.591°E, experiences significant variations in solar energy production across different seasons.

Seasonal Solar Energy Production

Solar panel efficiency at Kafr ash Shaykh fluctuates with the changing seasons. Summer yields the highest output at 8.45 kWh per day for each kilowatt of installed solar capacity. Spring follows closely with 7.53 kWh/day, while autumn sees a moderate decrease to 5.62 kWh/day. Winter experiences the lowest production at 4.01 kWh/day per kW installed.

Optimal Times for Solar Generation

The most ideal period for solar energy production in Kafr ash Shaykh spans from late spring through early autumn. During these months, longer daylight hours and higher sun angles contribute to increased solar panel efficiency. However, the location's year-round potential for solar energy generation is noteworthy, even with reduced winter output.

Panel Tilt Angle for Maximum Efficiency

To maximize year-round solar energy production from a fixed panel installation in Kafr ash Shaykh, the ideal tilt angle is 27 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for seasonal variations in the sun's position.

Environmental and Weather Considerations

While Kafr ash Shaykh offers generally favorable conditions for solar energy production, there are some environmental factors to consider:

• Dust and sand: The region's arid climate can lead to dust accumulation on solar panels, potentially reducing their efficiency.
• High temperatures: Extreme heat during summer months may slightly decrease panel efficiency.

Preventative Measures

To mitigate these challenges and ensure optimal energy production, consider implementing the following measures:

• Regular cleaning: Establish a routine cleaning schedule to remove dust and sand from panel surfaces.
• Cooling systems: Install adequate ventilation or cooling systems to maintain panel efficiency during high-temperature periods.
• Quality components: Use high-quality, heat-resistant solar panels and inverters designed for hot climates.

In conclusion, Kafr ash Shaykh's location offers excellent potential for solar energy generation throughout the year, with proper installation and maintenance practices in place to address local environmental factors.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 80 locations across Egypt. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Egypt by location

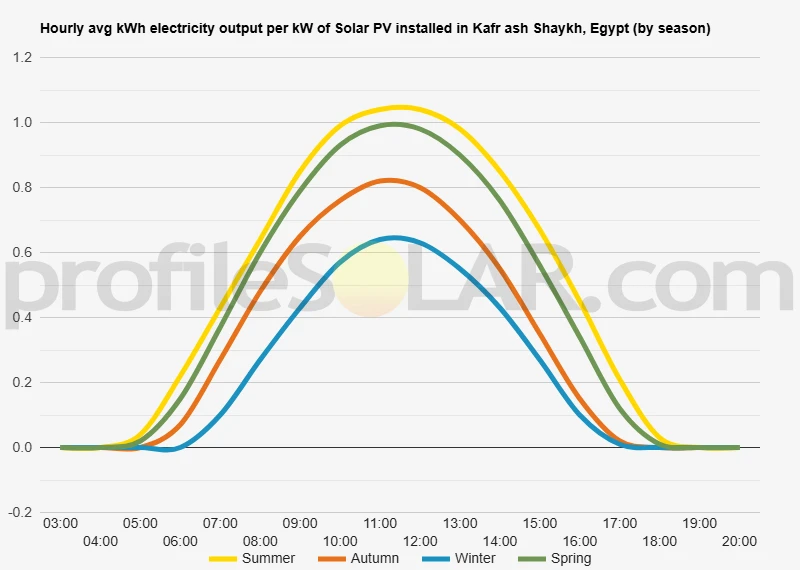

Solar output per kW of installed solar PV by season in Kafr Ash Shaykh

Seasonal solar PV output for Latitude: 30.8038, Longitude: 31.591 (Kafr Ash Shaykh, Egypt), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° South in Kafr Ash Shaykh, Egypt

To maximize your solar PV system's energy output in Kafr Ash Shaykh, Egypt (Lat/Long 30.8038, 31.591) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kafr Ash Shaykh, Egypt

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kafr Ash Shaykh, Egypt. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
15° South in Summer	35° South in Autumn	46° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kafr Ash Shaykh, Egypt

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kafr Ash Shaykh, Egypt.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kafr Ash Shaykh, Egypt

The topography around Kafr ash Shaykh, Egypt, located at 30.8038°N, 31.591°E, is characterized by a predominantly flat and low-lying landscape. This area is situated in the northern part of the Nile Delta, a vast alluvial plain formed by the Nile River as it approaches the Mediterranean Sea. The terrain is exceptionally level, with minimal elevation changes across the region. The surrounding landscape consists mainly of fertile agricultural land, crisscrossed by a network of irrigation canals and drainage channels. These waterways are essential for supporting the area's intensive agriculture, which has been practiced for thousands of years. The soil is rich and alluvial, deposited over millennia by the annual flooding of the Nile River before the construction of the Aswan High Dam. As you move away from Kafr ash Shaykh, the terrain remains consistently flat for many kilometers in all directions. To the north, the land gradually transitions into coastal marshes and lagoons before reaching the Mediterranean Sea. To the south, east, and west, the expansive delta plain continues, dotted with numerous small villages and towns.

Suitability for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The flat terrain of the region is generally favorable for solar farms, as it minimizes the need for extensive land preparation and allows for efficient panel layout. The areas most suitable for large-scale solar PV would likely be found on the outskirts of agricultural zones, where land is less intensively cultivated. Regions to the north and northeast of Kafr ash Shaykh, approaching the coast but not encroaching on wetlands, could be potential candidates. These areas typically receive ample sunlight throughout the year and have fewer competing land uses. However, it's important to note that the high agricultural productivity of the Nile Delta region may pose challenges in terms of land availability for solar projects. Planners would need to carefully balance the need for renewable energy with the preservation of valuable farmland. Additionally, areas closer to existing power infrastructure and away from flood-prone zones would be preferable for solar PV development. In conclusion, while the topography around Kafr ash Shaykh is highly suitable for solar PV from a terrain perspective, the optimal locations for large-scale installations would need to be determined through careful consideration of land use, environmental factors, and infrastructure availability.

Egypt solar PV Stats as a country

Egypt ranks 34th in the world for cumulative solar PV capacity, with 1,675 total MW's of solar PV installed. Each year Egypt is generating 17 Watts from solar PV per capita (Egypt ranks 67th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Egypt?

Yes, there are incentives for businesses wanting to install solar energy in Egypt. The Egyptian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include feed-in tariffs, net metering, tax exemptions, and subsidies. Additionally, the government has established a Renewable Energy Authority (REA) to oversee the development of renewable energy projects in Egypt.
