Solar PV Analysis of Madinat An Nasr, Egypt
Madinat an Nasr, Egypt, is generally a good location for generating solar energy throughout the year. It's located in the Northern Sub Tropics where there's plenty of sunlight. The amount of energy you can expect to generate from each kilowatt (kW) of solar panels installed changes with the seasons. In summer, you can get about 8.45 kilowatt-hours (kWh) per day, in autumn it's around 5.62 kWh/day, in winter it drops to about 4.01 kWh/day and then increases again in spring to approximately 7.53 kWh/day.
This suggests that the best times of year for solar energy production at this location are during summer and spring when sunlight hours are longer and more intense.
For fixed panel installations at this location, tilting panels at an angle of 26 degrees facing south will help maximize total yearly energy production from your solar panels.
However, there could be some local factors that might affect how much power you can produce from your solar installation here.
One possible obstacle is dust or sand storms which are common in desert regions like Egypt; these could cover your solar panels and reduce their efficiency significantly if not cleaned regularly. To mitigate this issue regular cleaning maintenance would be needed especially after such weather events to ensure optimal performance.
There could also be potential issues related to local regulations or building codes that may limit where or how big a system you can install so before installing any system it would be wise to check with local authorities on any potential restrictions or requirements.
Overall though given its sunny climate Madinat an Nasr would generally make an ideal spot for capturing ample amounts of solar power throughout most parts of the year.
Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 80 locations across Egypt. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Egypt by location

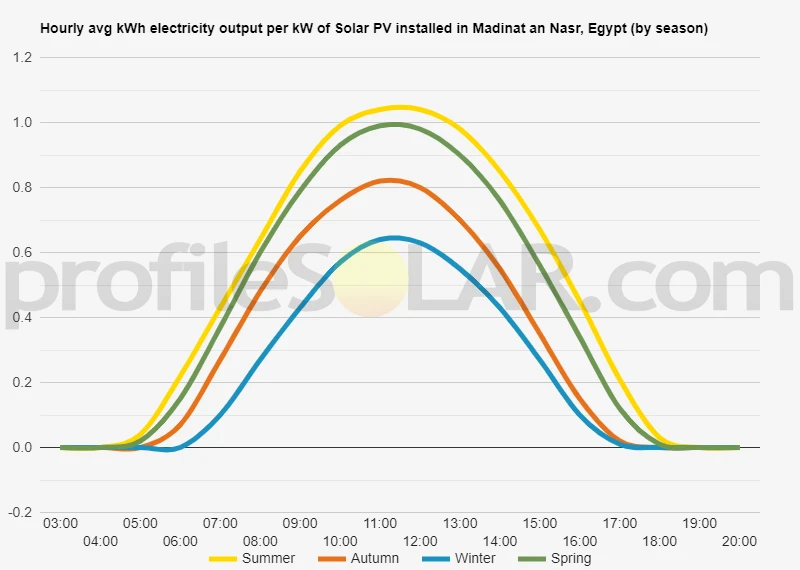

Solar output per kW of installed solar PV by season in Madinat An Nasr
Seasonal solar PV output for Latitude: 30.0733, Longitude: 31.304 (Madinat An Nasr, Egypt), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 26° South in Madinat An Nasr, Egypt
To maximize your solar PV system's energy output in Madinat An Nasr, Egypt (Lat/Long 30.0733, 31.304) throughout the year, you should tilt your panels at an angle of 26° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Madinat An Nasr, Egypt
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Madinat An Nasr, Egypt. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 14° South in Summer | 35° South in Autumn | 45° South in Winter | 23° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Madinat An Nasr, Egypt
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Madinat An Nasr, Egypt.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Madinat An Nasr, Egypt
Madinat an Nasr, Egypt is located in the Greater Cairo area which is primarily flat and urban. The region is part of the Nile Delta, a broad alluvial plain where the Nile River spreads out and drains into the Mediterranean Sea. The topography has very little variation in elevation.
For large-scale solar PV installations, areas that are relatively flat, have high solar irradiance (sunlight exposure), and minimal shading or obstructions would be most suitable. In this context, desert regions to the east or west of Greater Cairo could potentially be good locations for large-scale solar PV projects due to their high levels of sunlight exposure and vast open spaces.
However, it's important to note that other factors such as infrastructure availability (roads for access and power lines for electricity transmission), water availability (for cleaning solar panels), land ownership rights and environmental considerations should also be taken into account when selecting sites for large-scale solar projects.
Egypt solar PV Stats as a country
Egypt ranks 34th in the world for cumulative solar PV capacity, with 1,675 total MW's of solar PV installed. Each year Egypt is generating 17 Watts from solar PV per capita (Egypt ranks 67th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Egypt?
Yes, there are incentives for businesses wanting to install solar energy in Egypt. The Egyptian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include feed-in tariffs, net metering, tax exemptions, and subsidies. Additionally, the government has established a Renewable Energy Authority (REA) to oversee the development of renewable energy projects in Egypt.
Do you have more up to date information than this on incentives towards solar PV projects in Egypt? Please reach out to us and help us keep this information current. Thanks!
