Menouf, Monufia, Egypt, situated at latitude 30.4655 and longitude 30.9413 in the Northern Sub Tropics, offers varying conditions for solar PV energy generation throughout the year. This location experiences significant seasonal fluctuations in solar electricity production that potential solar installers should understand.

Seasonal Solar Production

Solar panels in Menouf generate their highest electricity output during summer months, producing approximately 8.68kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 7.61kWh/day. Production decreases considerably in autumn to 5.70kWh/day, and reaches its lowest point in winter with just 3.99kWh/day per kW installed.

This pattern creates more than double the electricity generation in summer compared to winter months, which is typical for subtropical locations where the sun's path varies significantly across seasons.

Optimal Installation Setup

For fixed solar panel installations in Menouf, Monufia, the ideal tilt angle to maximize year-round energy production is 26 degrees facing South. This angle represents the mathematically optimal position that balances seasonal variations in the sun's position to capture the most solar energy across the entire year.

Environmental Considerations

Several environmental factors in Menouf can potentially impact solar production:

• Dust and sand accumulation: Egypt's desert climate means panels can quickly become covered with dust, reducing efficiency by up to 25% if not regularly cleaned.
• High temperatures: Summer temperatures in Menouf can exceed 40°C (104°F), which can reduce panel efficiency as solar panels typically lose efficiency above 25°C.
• Occasional sandstorms: Though less frequent than in deeper desert regions, sandstorms can temporarily halt production and cause abrasion to panel surfaces.

Preventative Measures

To mitigate these environmental challenges, solar installations in Menouf should incorporate:

• Regular cleaning schedules (at least monthly during dry seasons)
• Elevated mounting systems with sufficient airflow beneath panels to reduce operating temperatures
• High-quality tempered glass panels with anti-reflective coatings that resist sand abrasion
• Consideration of tracking systems to further increase production, especially valuable during the highly productive summer months
• Dust-repellent coatings or automated cleaning systems for larger installations

With proper installation and maintenance protocols, Menouf's abundant sunshine—particularly from March through October—makes it a generally favorable location for solar PV despite the seasonal variations and environmental challenges.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 80 locations across Egypt. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Egypt by location

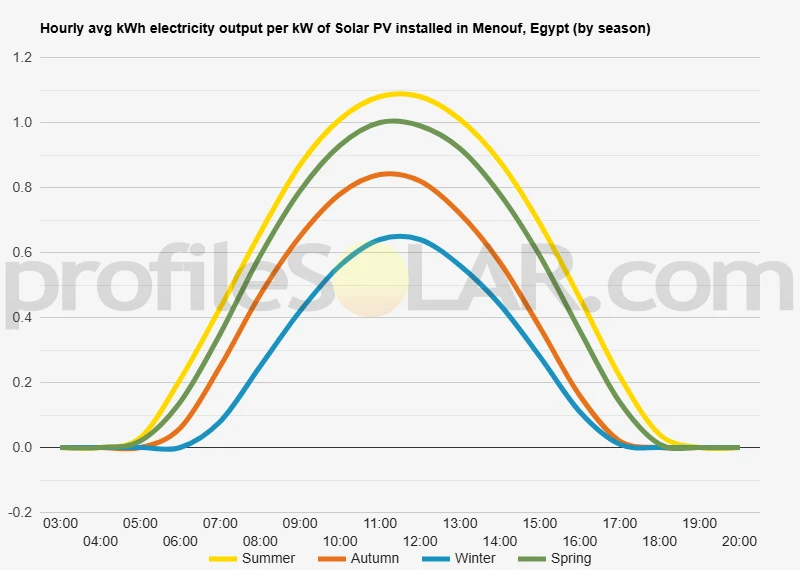

Solar output per kW of installed solar PV by season in Menouf

Seasonal solar PV output for Latitude: 30.4655, Longitude: 30.9413 (Menouf, Egypt), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° South in Menouf, Egypt

To maximize your solar PV system's energy output in Menouf, Egypt (Lat/Long 30.4655, 30.9413) throughout the year, you should tilt your panels at an angle of 26° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Menouf, Egypt

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Menouf, Egypt. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	35° South in Autumn	45° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Menouf, Egypt

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Menouf, Egypt.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Menouf, Egypt

Menouf is situated in the heart of the Nile Delta in northern Egypt. The topography around this location is characterized by flat, low-lying plains that are part of the fertile delta region formed by the Nile River. The elevation is generally very low, averaging just a few meters above sea level, with minimal variation across the landscape. The terrain surrounding Menouf consists primarily of agricultural land, with a dense network of irrigation canals crisscrossing the area. These agricultural plains extend in all directions from the city, creating an expansive, open landscape with excellent exposure to the sky. The flatness of the region means there are virtually no natural features that would cast shadows or obstruct sunlight.

Soil and Land Characteristics

The soil in this region is predominantly alluvial, deposited over millennia by the flooding of the Nile. This has created exceptionally fertile land that has been intensively cultivated for thousands of years. The ground is generally stable and compact, providing good foundation conditions for large structures. Water features are abundant in the vicinity, with numerous canals, streams, and drainage channels supporting the agricultural activities. The water table is relatively high throughout the delta region, which can be a consideration for certain types of construction projects.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas would be found at the edges of the delta where agricultural productivity decreases and transitions to more desert-like conditions. Specifically, the areas to the west and southwest of Menouf, approaching the Western Desert, offer several advantages: These transitional zones feature less valuable agricultural land, reducing the economic and food security impact of repurposing land for energy production. The soil becomes sandier and less fertile as one moves away from the core delta region, making these areas less optimal for farming but well-suited for solar installations. The land in these western transitional areas remains predominantly flat, which is ideal for the uniform arrangement of solar panels and minimizes site preparation costs. These locations also tend to have less humidity than the core delta areas, potentially reducing maintenance issues related to moisture. Areas to the north and east of Menouf are less suitable for large-scale solar development due to their high agricultural value and denser population. The southern edges of the delta also present good opportunities where desert conditions begin to prevail. Any large-scale solar installation would need to consider the proximity to existing electrical infrastructure for efficient grid connection. The delta region has a well-developed electrical distribution network, with major transmission lines connecting the population centers, which could facilitate the integration of new solar capacity into the national grid.

Egypt solar PV Stats as a country

Egypt ranks 34th in the world for cumulative solar PV capacity, with 1,675 total MW's of solar PV installed. Each year Egypt is generating 17 Watts from solar PV per capita (Egypt ranks 67th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Egypt?

Yes, there are incentives for businesses wanting to install solar energy in Egypt. The Egyptian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include feed-in tariffs, net metering, tax exemptions, and subsidies. Additionally, the government has established a Renewable Energy Authority (REA) to oversee the development of renewable energy projects in Egypt.

Do you have more up to date information than this on incentives towards solar PV projects in Egypt? Please reach out to us and help us keep this information current. Thanks!
