Gravelines, France is a location that experiences significant seasonal variations in solar energy production throughout the year. Located in the Northern Temperate Zone, this coastal town demonstrates the typical solar generation pattern of northern European sites.

Seasonal Solar Production

The solar energy output at Gravelines varies dramatically across seasons. During summer, solar panels generate their highest output at 5.35kWh per day for each kilowatt installed. Spring follows closely behind with 4.91kWh/day. However, production drops considerably in autumn to 2.48kWh/day, and plummets to just 1.14kWh/day during winter months.

This pattern creates a roughly 5:1 ratio between the best and worst producing seasons, making Gravelines a location with pronounced seasonal solar generation differences.

Optimal Panel Configuration

For fixed solar panel installations in Gravelines, the ideal tilt angle is 43 degrees facing South. This specific angle maximizes year-round energy production by optimizing the capture of available sunlight throughout the seasons.

Environmental and Weather Factors

Several significant factors can impact solar production at this location:

• Coastal fog and marine layer effects, common in this North Sea coastal area, can reduce solar irradiance
• Higher than average rainfall and cloud cover in the region, particularly during winter months
• Potential salt spray and corrosion due to proximity to the sea
• Occasional strong winds from North Sea weather systems

Recommended Preventative Measures

To maximize production despite these challenges, several installation considerations are important:

• Use marine-grade materials and saltwater-resistant panel frames to prevent corrosion
• Implement robust mounting systems that can withstand strong coastal winds
• Consider self-cleaning panel technologies or regular maintenance schedules to address salt accumulation
• Install micro-inverters or power optimizers to minimize the impact of partial shading from cloud cover
• Ensure proper drainage systems to prevent water accumulation after rainfall

While Gravelines provides excellent solar production during summer and spring, the dramatic seasonal variation means that supplementary energy sources would be advisable during the low-production winter months when output falls to approximately 20% of summer values.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 627 locations across France. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in France by location

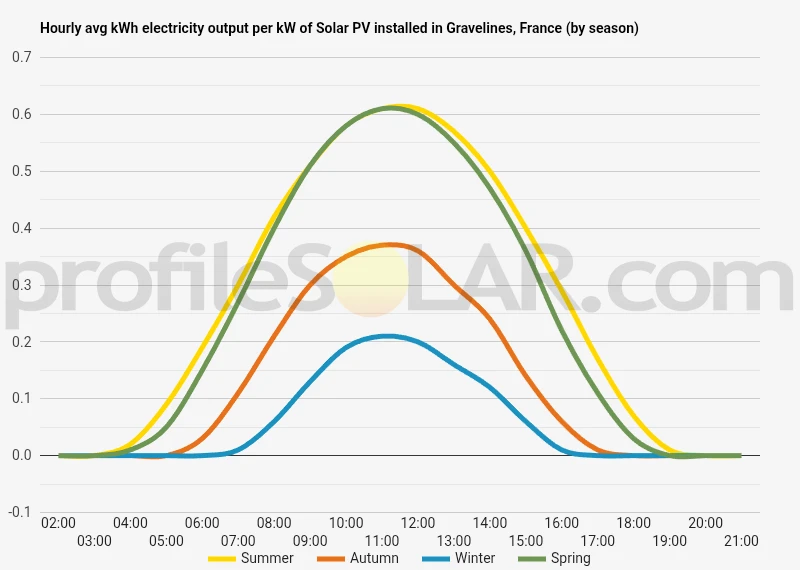

Solar output per kW of installed solar PV by season in Gravelines

Seasonal solar PV output for Latitude: 50.9855, Longitude: 2.1322 (Gravelines, France), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Gravelines, France

To maximize your solar PV system's energy output in Gravelines, France (Lat/Long 50.9855, 2.1322) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Gravelines, France

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Gravelines, France. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	54° South in Autumn	64° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Gravelines, France

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Gravelines, France.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Gravelines, France

The topography surrounding Gravelines, France presents a remarkably flat coastal landscape. Located in the Nord department of northern France, Gravelines sits on the shore of the North Sea, specifically along the eastern edge of the English Channel. The terrain in this region is characterized by a low-lying coastal plain with minimal elevation changes, typically ranging from sea level to just a few meters above it. This flatness extends inland for several kilometers, creating an open landscape with few natural barriers. The immediate vicinity of Gravelines features a network of canals and waterways, including the River Aa which flows through the town before emptying into the North Sea. These waterways have historically shaped both the natural and human geography of the area. The coastline itself consists primarily of sandy beaches and dunes, transitioning to reclaimed marshland further inland. Much of this land has been carefully managed through drainage systems for centuries, converting what was once wetland into productive agricultural space.

Surrounding Landscape Features

To the east and south of Gravelines, the landscape maintains its predominantly flat character as it extends toward the neighboring communities of Loon-Plage and Bourbourg. This area features extensive agricultural fields with minimal topographical variation, creating wide-open vistas across the countryside. The soil is generally rich and fertile, resulting from centuries of careful land management and reclamation from the sea. To the west, the coastal plain continues toward Calais, maintaining similar topographical characteristics with occasional small rises in elevation. Throughout this region, the landscape is intersected by a grid of drainage canals, roads, and occasional windbreaks, but lacks significant natural elevation changes or prominent geographical features that would create shadows or obstruct views of the sky.

Potential Areas for Solar PV Development

Given the topographical characteristics of the region around Gravelines, several areas present favorable conditions for large-scale solar photovoltaic installations. The most suitable locations would be: The agricultural plains extending south and southeast of Gravelines offer extensive flat terrain with minimal shading obstacles. These areas benefit from good exposure to available sunlight and typically feature well-drained soil conditions. While these lands are currently used for agriculture, portions with lower agricultural productivity might be considered for solar development. Certain industrial zones and brownfield sites near Gravelines and neighboring communities could be repurposed for solar energy production. These areas often have existing grid connections and are already designated for industrial use, minimizing conflicts with other land uses. The port areas and adjacent industrial zones represent particularly promising locations for solar development. The coastal areas themselves, while valuable for other purposes, generally face challenges for solar development due to environmental protections, tourism considerations, and potential exposure to harsh maritime conditions. The salt spray from the North Sea can accelerate degradation of solar equipment, making slightly inland locations more practical for large installations.

Topographical Considerations for Solar Development

The flatness of the landscape around Gravelines presents both advantages and challenges for solar PV deployment. The primary advantage is the absence of natural shading from hills or mountains, ensuring consistent exposure to available sunlight throughout the day. The flat terrain also simplifies construction and installation processes, potentially reducing development costs. However, this coastal region is known for its maritime climate, characterized by frequent cloud cover and precipitation distributed throughout the year. While the topography itself is favorable, the meteorological conditions must be carefully considered in any solar development planning. Additionally, the area experiences strong winds coming off the North Sea, which necessitates robust mounting systems for solar arrays. The low elevation of the land relative to sea level also raises considerations regarding potential flooding risks, particularly in the context of climate change and rising sea levels. Solar installations would benefit from being placed in areas with slightly higher elevation or with adequate flood protection measures in place.

France solar PV Stats as a country

France ranks 11th in the world for cumulative solar PV capacity, with 14,718 total MW's of solar PV installed. This means that 2.80% of France's total energy as a country comes from solar PV (that's 30th in the world). Each year France is generating 218 Watts from solar PV per capita (France ranks 23rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in France?

Yes, there are several incentives for businesses wanting to install solar energy in France. The French government offers a range of financial incentives and tax credits to encourage businesses to invest in renewable energy sources such as solar power. These include the Feed-in Tariff (FiT), which pays businesses for the electricity they generate from their solar panels, and the Investment Tax Credit (ITC), which provides a 30% tax credit on investments made in renewable energy systems. Additionally, businesses may be eligible for grants or loans from local authorities or regional development agencies.

Do you have more up to date information than this on incentives towards solar PV projects in France? Please reach out to us and help us keep this information current. Thanks!
