Location estimate

Trappes

Île-de-France · France

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

5.56

kWh/day

Autumn

2.89

kWh/day

Winter

1.34

kWh/day

Spring

4.97

kWh/day

Shared scale: 0–6.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Trappes, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 5.56 5.56 × 1 kWp = 5.56 kWh/day
Autumn 2.89 2.89 × 1 kWp = 2.89 kWh/day
Winter 1.34 1.34 × 1 kWp = 1.34 kWh/day
Spring 4.97 4.97 × 1 kWp = 4.97 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
5.56
Autumn · kWh/day
2.89
Winter · kWh/day
1.34
Spring · kWh/day
4.97

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 42 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
42°
Facing direction
South

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Jun, Jul, Aug
32°South
Autumn
Sep, Oct, Nov
52°South
Winter
Dec, Jan, Feb
62°South
Spring
Mar, Apr, May
41°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Trappes, Île-de-France, France.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 32 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

32° tilt · South

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 52 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

52° tilt · South

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 62 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

62° tilt · South

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 41 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

41° tilt · South

Illustrative direction; exact azimuth not recorded.

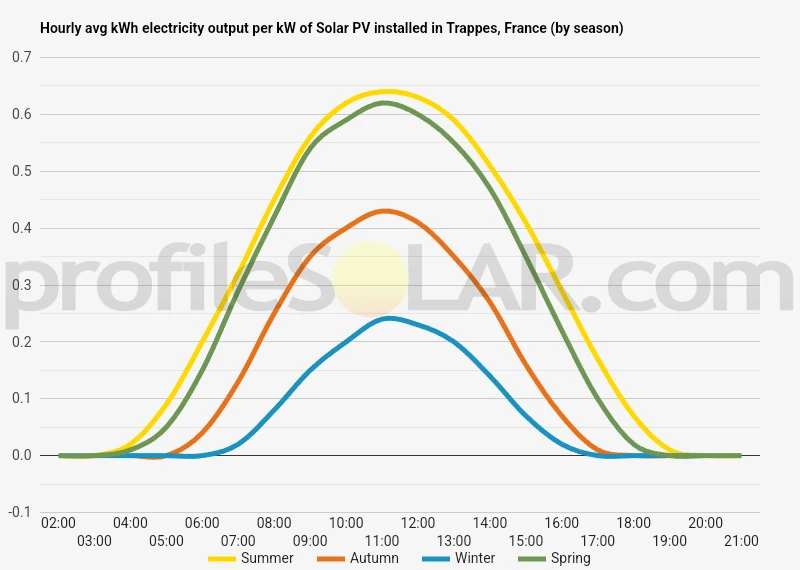

Historical hourly-by-season solar output chart for Trappes, France. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Trappes, France

Hourly profiles by season — Trappes, France · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Trappes, France · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Trappes

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 5.66 m

Proportional side viewDesign sun: ≈ 17.78° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 4.17 m
Added margin
≈ 0 m
Gap including margin
≈ 4.17 m
Panel horizontal footprint
≈ 1.49 m
Panel vertical rise
≈ 1.34 m
Pitch before margin
≈ 5.66 m

Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
42°
Added margin
0 m
Latitude from the catalogue
48.772200000000000000° (Northern Hemisphere)
Panel horizontal footprint
1.4862896509547885 m
Panel vertical rise
1.3382612127177165 m
Calculated clear gap
4.173696664464048 m
Pitch before margin
5.659986315418836 m
Gap including margin
4.173696664464048 m
Row pitch including margin
5.659986315418836 m
Design solar elevation
17.778017153186344°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Trappes

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

Trappes occupies plateau ground in Saint-Quentin-en-Yvelines, with built-up neighbourhoods, the nearby Étang de Saint-Quentin and wooded surroundings contributing different local horizons. The water landscape also preserves a connection with the historic system supplying Versailles.

Read the full article

Summer has the highest estimated average daily generation at 5.56 kWh/day per kW of rated capacity. Spring follows at 4.97 kWh/day, autumn at 2.89 kWh/day and winter at 1.34 kWh/day. Summer is more than four times winter on this basis, while spring remains relatively close to the summer daily average. For fixed panels, our reference is 42 degrees facing South. This is a broad output-weighted setting calculated with simplified solar geometry. The actual roof's pitch, orientation and surrounding buildings determine the practical layout. Trees and forest edges add a different kind of obstruction to the urban roofscape. In the Port-Royal surroundings, the plateau meets wooded stream valleys, while the town also has open views beside water and other established spaces. Checking nearby vegetation and structures against the solar path helps explain differences between individual positions. The seasonal estimates can be compared with the timing of electricity use. Clouds reduce the available light, while surface deposits affect the light reaching individual modules. Maintenance can respond to those observed deposits and equipment guidance, without using rainfall alone to set a cleaning interval.

Topography around Trappes

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

Trappes lies on a plateau in the Yvelines, within a landscape combining urban development, woodland and an established network of ponds and drainage channels. The Étang de Saint-Quentin is a distinctive nearby water feature associated with the historic hydraulic system serving Versailles.

Read the full topography description

That system includes ponds, aqueducts and rigoles carrying water across gently graded ground. In the local plateau landscape, these engineered water routes are as significant to its history and form as the broader natural slopes. The Port-Royal forest provides a wooded contrast. Its western part occupies the plateau of Trappes, where former millstone extraction has left marks in the relief and the Rhodon crosses the forest. Farther east within the wider forest, the Mérantaise has cut slopes into sandy and clay-rich ground. Housing and activity areas meet the woodland edges. For solar layouts, the plateau's overall openness needs to be read together with these close buildings and trees. Their height and position shape the horizon above a roof. On the ground, the actual contours and existing water routes guide how rows and access can fit beside established urban, woodland and water-linked uses.

Technical location reference

Approximate map point used for Trappes, France

This coordinate is the calculation reference for Trappes, France. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
48.772200000000000000, 2.010200000000000000
Originally displayed coordinate
lat48.7722 / long2.0102

How the estimate works

How this Trappes estimate was calculated

Here is how I calculated the location estimate for Trappes, France.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Trappes Location estimate includes and leaves out

Use the Trappes figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
