Solar PV Analysis of Abstatt, Germany
Abstatt, a town in Baden-Württemberg, Germany, presents a mixed picture for solar energy generation throughout the year. Located in the Northern Temperate Zone, this area experiences significant seasonal variations in solar output.
Seasonal Solar Performance
Summer stands out as the most productive season, with an impressive 5.55 kWh per day for each kilowatt of installed solar capacity. Spring follows closely, generating 4.57 kWh/day. However, the output drops considerably during autumn, with 2.59 kWh/day, and plummets to a mere 1.24 kWh/day in winter.
These figures indicate that Abstatt's solar potential is highly seasonal. The long, sunny days of summer and spring provide excellent conditions for solar energy production. However, the short, often overcast days of autumn and winter significantly reduce the effectiveness of solar panels.
Optimal Panel Installation
To maximize year-round solar production in Abstatt, fixed solar panels should be tilted at an angle of 41 degrees facing south. This optimal angle takes into account the location's latitude and the sun's position throughout the year, ensuring the best possible exposure to sunlight across all seasons.
Environmental Factors and Mitigation
While Abstatt doesn't face extreme environmental challenges, there are some factors that could impact solar production:
- Cloud cover: The region experiences frequent cloudy days, especially in autumn and winter, which can significantly reduce solar output.
- Snow: Winter snowfall can temporarily cover panels, reducing efficiency.
To mitigate these issues, consider installing panels with anti-soiling coatings to reduce snow accumulation. Additionally, using microinverters or power optimizers can help maintain efficiency during partial shading conditions caused by cloud cover.
In conclusion, while Abstatt's location is not ideal for year-round solar production, it still offers substantial potential, particularly during the spring and summer months. With proper installation and maintenance, solar PV systems can be a valuable source of renewable energy in this German town.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Germany by location

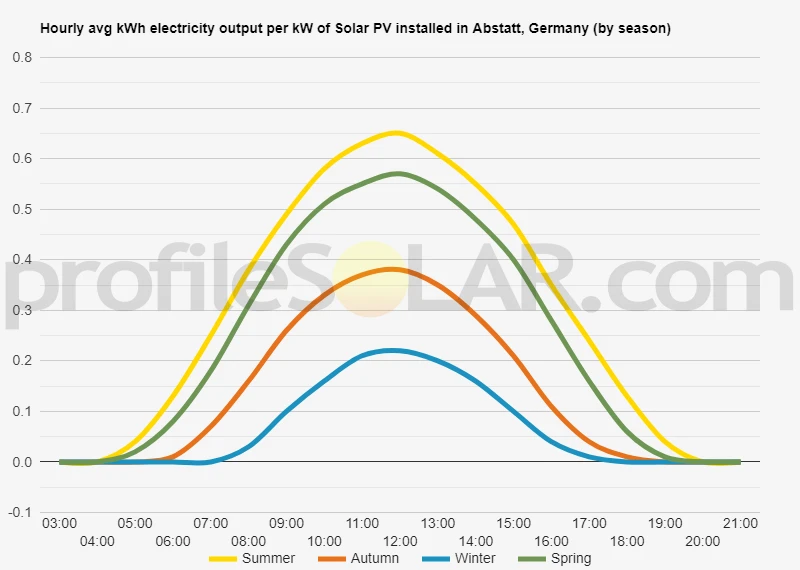

Solar output per kW of installed solar PV by season in Abstatt
Seasonal solar PV output for Latitude: 49.0674, Longitude: 9.2923 (Abstatt, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 41° South in Abstatt, Germany
To maximize your solar PV system's energy output in Abstatt, Germany (Lat/Long 49.0674, 9.2923) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Abstatt, Germany
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Abstatt, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 32° South in Summer | 51° South in Autumn | 62° South in Winter | 41° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Abstatt, Germany
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Abstatt, Germany.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Abstatt, Germany
The area around Abstatt, Germany, is characterized by a diverse and picturesque landscape typical of the southwestern German state of Baden-Württemberg. Abstatt itself is nestled in a valley within the larger Neckar Valley region, surrounded by gently rolling hills and forested areas.
To the north and east of Abstatt, the terrain gradually rises into the foothills of the Löwenstein Mountains, part of the larger Swabian-Franconian Forest. These hills are predominantly covered with mixed deciduous and coniferous forests, interspersed with small clearings and meadows. The elevation in this area ranges from about 200 to 400 meters above sea level.
To the south and west, the landscape opens up into a broader, flatter valley floor along the Schozach River, a tributary of the Neckar. This area is characterized by a mix of agricultural fields, orchards, and small patches of woodland. The terrain here is generally more level, with elevations ranging from 180 to 250 meters above sea level.
Regarding areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, the relatively flat agricultural lands to the south and west of Abstatt offer the most promising locations. These areas benefit from several factors that make them suitable for solar energy production:
- Open, unobstructed terrain with fewer shadows from hills or forests
- Existing infrastructure, including roads and proximity to power grids
- Lower ecological impact compared to forested areas
- Generally south-facing slopes, which are ideal for maximizing solar exposure
Specific locations that might be particularly well-suited for solar PV installations include the agricultural areas between Abstatt and Ilsfeld to the southwest, and the open fields near Beilstein to the southeast. These areas offer expansive, relatively flat terrain with good solar exposure and minimal shading from natural features.
However, it's important to note that any large-scale solar PV project would need to carefully balance energy production goals with local agricultural needs, as this region is known for its productive farmland. Additionally, proper environmental impact assessments and community consultations would be necessary before undertaking such a project.
Germany solar PV Stats as a country
Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Germany?
Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.
Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
