Achstetten, located in Baden-Wurttemberg, Germany, presents a mixed picture for solar PV energy generation throughout the year. Situated in the Northern Temperate Zone, this location experiences significant seasonal variations in solar energy production.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive 5.55 kWh per day for each kW of installed solar capacity. Spring follows closely, generating 4.50 kWh daily. These seasons offer ideal conditions for solar energy harvesting, with longer daylight hours and typically clearer skies.

Autumn sees a notable decrease in production, dropping to 2.75 kWh per day. Winter presents the greatest challenge, with output plummeting to just 1.31 kWh daily. This substantial seasonal variation highlights the need for careful planning and potentially supplementary energy sources during the colder months.

Optimal Panel Positioning

To maximize year-round solar energy production in Achstetten, fixed solar panels should be tilted at a 41-degree angle facing south. This optimal angle takes into account the location's latitude and seasonal sun positions, ensuring the best possible energy capture across all seasons.

Environmental Considerations

While Achstetten's location is generally favorable for solar energy, there are some environmental factors to consider:

• Winter snow accumulation can significantly reduce panel efficiency
• Fog, especially in autumn and winter, may impact solar radiation reaching the panels

To mitigate these issues, consider installing panels at a steeper angle to encourage snow sliding off and using anti-reflective coatings to improve performance in low-light conditions. Regular maintenance, including snow removal and panel cleaning, is crucial to maintain optimal efficiency.

In conclusion, while Achstetten faces challenges during the colder months, its location still offers considerable potential for solar energy generation, particularly from spring through autumn. With proper installation techniques and maintenance, solar PV can be a viable and sustainable energy option for this German town.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

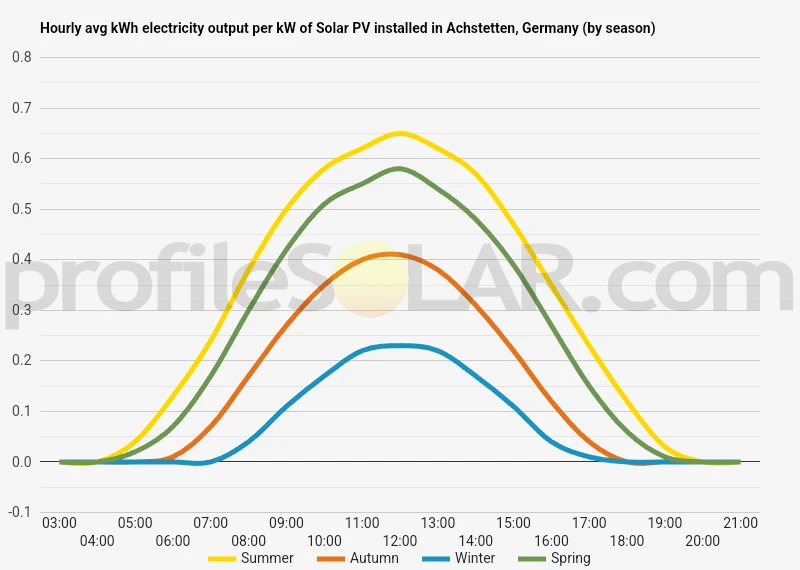

Solar output per kW of installed solar PV by season in Achstetten

Seasonal solar PV output for Latitude: 48.2599, Longitude: 9.8947 (Achstetten, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Achstetten, Germany

To maximize your solar PV system's energy output in Achstetten, Germany (Lat/Long 48.2599, 9.8947) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Achstetten, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Achstetten, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
32° South in Summer	51° South in Autumn	61° South in Winter	40° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Achstetten, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Achstetten, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Achstetten, Germany

The area surrounding Achstetten, Germany, is characterized by a diverse and picturesque landscape typical of the Upper Swabia region. Located in the southwestern part of the country, this area features gently rolling hills, lush meadows, and scattered forests. The terrain is generally mild, with subtle elevation changes that create a pleasing visual tapestry. To the east and southeast of Achstetten, the land gradually rises towards the Swabian Alb, a low mountain range that forms a natural boundary. This transition zone between the flatter regions and the higher elevations creates a varied topography with shallow valleys and low ridges. Small streams and creeks meander through the countryside, adding to the area's natural beauty. The western and northern parts of the region around Achstetten are relatively flatter, with open agricultural fields dominating the landscape. These areas are interspersed with small patches of woodland and occasional gentle slopes. The overall impression is one of a pastoral, rural setting with a harmonious blend of natural and cultivated elements.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The relatively flat terrain to the west and north of Achstetten presents promising opportunities for solar energy development. These areas offer several advantages: Firstly, the open agricultural lands provide ample space for large solar arrays without significant topographical obstacles. The absence of steep slopes or dense forests in these areas makes construction and maintenance of solar facilities more straightforward and cost-effective. Secondly, the gentle southward-facing slopes found in some parts of this region could be particularly advantageous for solar PV installations. These slight inclines can help optimize the angle at which solar panels receive sunlight, potentially increasing their efficiency. However, it's important to note that the suitability of any specific site for solar PV development would require detailed assessment, taking into account factors such as local zoning regulations, grid connectivity, and environmental considerations. Additionally, the integration of solar installations with existing agricultural practices, known as agrivoltaics, could be an option to consider in this predominantly rural area, allowing for dual land use. While the immediate vicinity of Achstetten offers good potential for solar energy, areas slightly further afield, particularly towards the more open landscapes in the direction of Ulm to the northeast, might present even more favorable conditions for large-scale solar PV projects due to their expansive, unobstructed terrain.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
