Annweiler am Trifels, located in Rheinland-Pfalz, Germany, presents a mixed picture for solar PV energy generation. This Northern Temperate Zone location experiences significant seasonal variations in solar output, which affects its overall suitability for year-round solar energy production.

Seasonal Solar Performance

The solar energy potential in Annweiler am Trifels varies dramatically across the seasons. Summer stands out as the most productive period, with an average daily output of 5.28 kWh per kW of installed solar capacity. Spring follows closely behind, generating 4.57 kWh/day. However, the output drops considerably in autumn to 2.53 kWh/day, and plummets to a mere 1.17 kWh/day during winter months. This stark contrast between summer and winter production highlights the challenges of relying solely on solar energy in this location year-round. The long, sunny days of summer provide excellent conditions for solar generation, while the short, often overcast days of winter significantly hamper production.

Optimal Panel Installation

To maximize year-round solar energy production in Annweiler am Trifels, fixed solar panels should be installed at a tilt angle of 42 degrees facing south. This angle has been calculated to optimize the overall annual energy yield, taking into account the changing position of the sun throughout the year and the location's specific latitude.

Environmental and Weather Factors

Several environmental and weather factors can impact solar production in this area: 1. Cloud cover: The region experiences significant cloud cover, especially during autumn and winter, which can reduce solar output. 2. Snowfall: Winter snowfall can temporarily cover panels, reducing efficiency until the snow melts or is removed. 3. Fog: The nearby Palatinate Forest can contribute to morning fog, potentially delaying the start of efficient solar production on some days. To mitigate these factors, consider the following preventative measures: - Install panels with anti-reflective coatings to maximize light absorption even in low-light conditions. - Use a tracking system to adjust panel angles throughout the day, increasing energy capture. - Implement a regular cleaning schedule, especially after snowfall, to ensure panels remain unobstructed. - Consider supplementing with other renewable energy sources to compensate for the low winter production. In conclusion, while Annweiler am Trifels is not ideal for year-round solar energy production due to its significant seasonal variations, it still offers good potential during spring and summer months. With proper installation techniques and maintenance, solar PV can be a valuable component of the local energy mix, particularly when combined with other energy sources to balance the winter shortfall.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

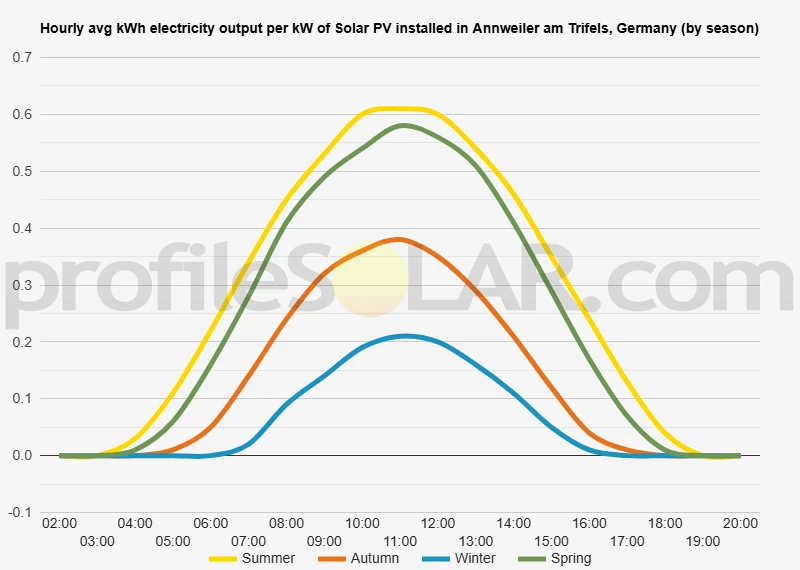

Solar output per kW of installed solar PV by season in Annweiler Am Trifels

Seasonal solar PV output for Latitude: 49.2096, Longitude: 7.9726 (Annweiler Am Trifels, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 42° South in Annweiler Am Trifels, Germany

To maximize your solar PV system's energy output in Annweiler Am Trifels, Germany (Lat/Long 49.2096, 7.9726) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Annweiler Am Trifels, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Annweiler Am Trifels, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
33° South in Summer	52° South in Autumn	62° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Annweiler Am Trifels, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Annweiler Am Trifels, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Annweiler Am Trifels, Germany

The landscape surrounding Annweiler am Trifels, located in the southwestern part of Germany, is characterized by its diverse and picturesque topography. This region, known as the Palatinate Forest (Pfälzerwald), features a mix of rolling hills, dense woodlands, and scenic valleys. The town itself is nestled in a valley, with the iconic Trifels Castle perched atop a prominent sandstone hill overlooking the area. The terrain around Annweiler am Trifels is primarily hilly, with elevations ranging from approximately 200 to 600 meters above sea level. The hills are generally rounded and covered with lush forests, predominantly consisting of beech and pine trees. Interspersed among these wooded areas are clearings, meadows, and small agricultural plots, creating a patchwork of green hues across the landscape. Several streams and small rivers wind their way through the valleys, carving gentle paths between the hills. These waterways, such as the Queich River, have played a crucial role in shaping the local topography over millennia. The valleys tend to be relatively narrow, with steeper slopes rising on either side.

Potential Areas for Large-Scale Solar PV

When considering suitable locations for large-scale solar photovoltaic (PV) installations near Annweiler am Trifels, several factors must be taken into account. The hilly and forested nature of the region presents some challenges, but there are still potential areas that could be suitable for solar energy development. The most promising locations for large-scale solar PV would likely be found in the broader, more open valleys and on the gentler slopes of hills facing south or southwest. These areas would receive more direct sunlight throughout the day, maximizing the efficiency of solar panels. Additionally, any existing clearings or agricultural land that is less productive could be repurposed for solar installations, minimizing the need for deforestation. Areas to the east and southeast of Annweiler am Trifels, where the terrain begins to flatten out towards the Rhine Valley, might offer more expansive spaces for solar farms. These locations would likely have fewer obstructions from hills and forests, allowing for larger, uninterrupted arrays of solar panels. However, it's important to note that any large-scale solar PV project in this region would need to carefully balance energy production goals with environmental conservation efforts. The Palatinate Forest is a protected biosphere reserve, so any development would need to adhere to strict regulations and minimize impact on the local ecosystem and scenic beauty that makes this area so unique.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
