Armsheim, Rheinland-Pfalz, Germany offers moderate solar energy potential with significant seasonal variation typical of its Northern Temperate Zone location. The solar output data shows this location can generate meaningful electricity from solar panels throughout the year, though with notable differences between seasons.

Seasonal Solar Performance

Summer provides the strongest solar generation at 5.50 kWh per day per kW of installed capacity, making it the peak season for solar energy production. Spring follows as the second-best season with 4.50 kWh per day per kW, offering excellent solar conditions as daylight hours increase and weather improves. Autumn sees a significant drop to 2.54 kWh per day per kW as the region transitions toward winter conditions. Winter presents the most challenging period with only 1.21 kWh per day per kW, representing less than a quarter of summer production levels.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal tilt angle is 42 degrees facing south to maximize total year-round solar production. This angle has been calculated to optimize energy capture across all seasons by accounting for the sun's changing position throughout the year and weighting for actual solar irradiance conditions.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Rheinland-Pfalz region can impact solar panel performance:

• Frequent cloud cover and overcast conditions, particularly during autumn and winter months
• Morning fog and mist common in river valley areas near the Rhine
• Snow accumulation during winter months that can block panels
• High humidity levels that can reduce panel efficiency
• Dust and pollen buildup, especially during spring months

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies can help:

• Install panels with adequate spacing for air circulation to reduce humidity effects
• Use mounting systems that allow for steeper tilt angles to help snow slide off naturally
• Implement regular cleaning schedules, particularly after pollen season and before peak summer months
• Consider micro-inverters or power optimizers to minimize impact when individual panels are partially shaded
• Ensure proper drainage around installations to prevent moisture-related issues

Despite the seasonal variations and local weather challenges, Armsheim represents a reasonably viable location for solar energy generation. The strong summer and spring performance can offset the lower winter production, making solar installations economically feasible with proper planning and maintenance.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

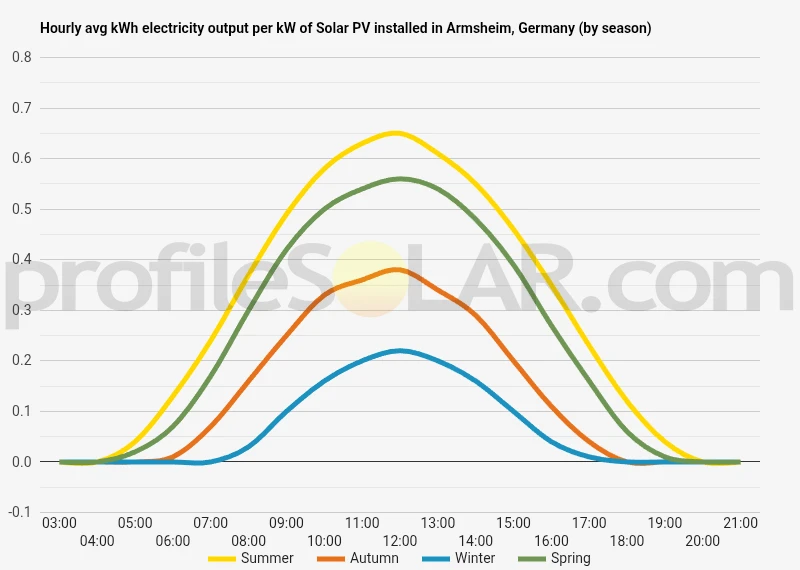

Solar output per kW of installed solar PV by season in Armsheim

Seasonal solar PV output for Latitude: 49.8112, Longitude: 8.0596 (Armsheim, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 42° South in Armsheim, Germany

To maximize your solar PV system's energy output in Armsheim, Germany (Lat/Long 49.8112, 8.0596) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Armsheim, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Armsheim, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
33° South in Summer	52° South in Autumn	63° South in Winter	42° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Armsheim, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Armsheim, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Armsheim, Germany

Topographical Characteristics of Armsheim and Surroundings

Armsheim sits within the gently rolling landscape of the Rhineland-Palatinate region in western Germany, positioned between the Rhine River valley to the east and the North Palatine Uplands to the west. The terrain around this small municipality is characterized by relatively modest elevation changes, with the area lying at approximately 200 meters above sea level. The landscape consists primarily of agricultural plains interspersed with gentle hills that rarely exceed 300 meters in height.

The region benefits from the broader Rhine Valley's influence, which creates a relatively flat to gently undulating terrain that extends eastward toward the river. To the west and southwest, the land gradually rises toward the Palatinate Forest, but the immediate vicinity of Armsheim remains predominantly characterized by open farmland and scattered woodlands. The soil composition is largely fertile loess deposits, which explains the area's agricultural productivity and the prevalence of vineyards and crop fields.

Local topography includes several small valleys carved by seasonal streams and drainage channels that flow generally eastward toward the Rhine. These waterways have created subtle but noticeable variations in elevation, typically ranging from 10 to 30 meters in depth. The overall gradient of the land slopes gently from west to east, following the natural drainage pattern toward the Rhine Valley.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Armsheim would be the broad, relatively flat agricultural plateaus that extend to the north and east of the municipality. These areas offer several advantages including minimal shading from topographical features, consistent south-facing slopes, and large contiguous parcels of land that could accommodate utility-scale solar farms.

The gentle eastward-sloping terrain provides natural advantages for solar panel orientation, as many of these slopes face southeast to southwest, which optimizes solar exposure throughout the day. The open agricultural landscape means fewer obstructions from buildings or significant vegetation, while the stable geological conditions of the loess-covered plains provide excellent foundations for solar mounting systems.

Areas immediately to the northeast of Armsheim, toward the Rhine Valley, present particularly favorable conditions due to their combination of flat to gently sloping terrain, minimal tree cover, and existing agricultural use that could potentially be converted or combined with agrivoltaic systems. The slightly elevated plateaus to the west and northwest also offer good potential, as they provide unobstructed views of the southern sky while maintaining relatively gentle gradients suitable for large-scale installations.

The small valleys and more heavily wooded areas scattered throughout the region would be less suitable for major solar developments due to potential shading issues, irregular terrain that would complicate installation, and environmental considerations related to forest preservation and watershed protection.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.
