Solar PV Analysis of Bad Buchau, Germany
Bad Buchau, located in Baden-Wurttemberg, Germany, presents a mixed scenario for solar PV energy generation. Situated in the Northern Temperate Zone, this location experiences significant seasonal variations in solar energy production.
Seasonal Solar Performance
Summer stands out as the most productive season, with an impressive 5.59 kWh per day for each kW of installed solar capacity. Spring follows closely, generating 4.56 kWh/day. These warmer months offer ideal conditions for solar energy harvesting, with longer daylight hours and generally clearer skies.
Autumn sees a notable decrease in production, dropping to 2.81 kWh/day. Winter presents the biggest challenge, with output plummeting to a mere 1.37 kWh/day per kW installed. This significant seasonal variation highlights the importance of proper system sizing to meet year-round energy needs.
Optimal Panel Positioning
For fixed panel installations in Bad Buchau, the ideal tilt angle is 41 degrees facing South. This angle is calculated to maximize total year-round production, taking into account the location's latitude and seasonal sun angles.
Environmental Considerations
While Bad Buchau doesn't face extreme environmental challenges, there are factors that could impact solar production:
- Snow accumulation in winter can temporarily reduce panel efficiency.
- Fog, common in autumn and winter, may slightly decrease solar irradiance.
To mitigate these issues, consider installing panels at a steeper angle to encourage snow sliding off. Additionally, regular cleaning and maintenance can help maximize production during less ideal seasons.
Conclusion
Despite the challenges in autumn and winter, Bad Buchau's location still offers good potential for solar PV energy generation, especially during spring and summer. With proper system design and maintenance, solar panels can provide a significant contribution to the area's energy needs throughout the year.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Germany by location

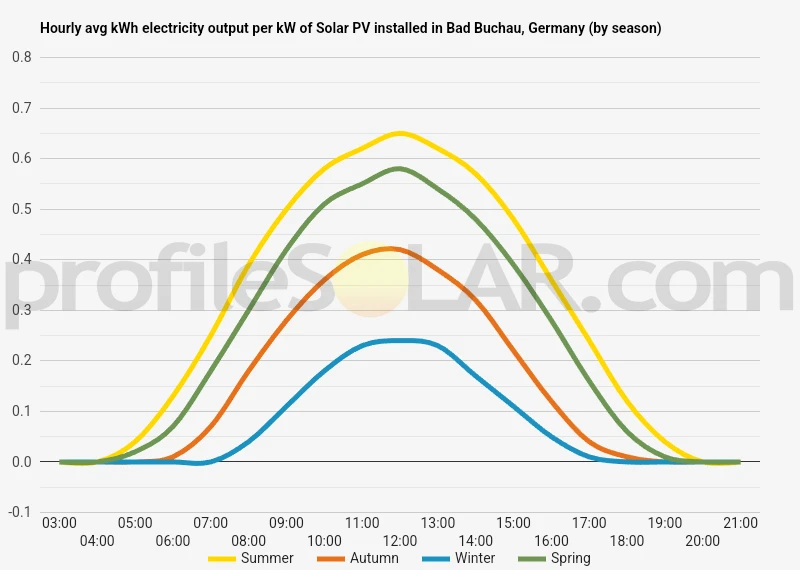

Solar output per kW of installed solar PV by season in Bad Buchau
Seasonal solar PV output for Latitude: 48.0636, Longitude: 9.6182 (Bad Buchau, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 41° South in Bad Buchau, Germany
To maximize your solar PV system's energy output in Bad Buchau, Germany (Lat/Long 48.0636, 9.6182) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Bad Buchau, Germany
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bad Buchau, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 31° South in Summer | 51° South in Autumn | 61° South in Winter | 40° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Bad Buchau, Germany
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bad Buchau, Germany.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Bad Buchau, Germany
The area around Bad Buchau, Germany, is characterized by a diverse and gently undulating landscape. Located in the southern part of Baden-Württemberg, this region is part of the Upper Swabian Plateau, which is known for its rolling hills, shallow valleys, and numerous small lakes and wetlands.
The topography of Bad Buchau and its surroundings is largely shaped by glacial activity from the last ice age. As a result, the terrain features a mix of low hills, flat plains, and shallow depressions. The town itself sits on the edge of the Federsee, a large but shallow lake that is surrounded by extensive reed beds and peat bogs. This unique wetland ecosystem is a prominent feature of the local landscape.
Moving away from the immediate vicinity of Bad Buchau, the land gradually rises into gentle hills and plateaus. These areas are often interspersed with small streams and rivers that have carved shallow valleys into the landscape over time. The region also includes scattered patches of forest, agricultural fields, and meadows, creating a patchwork of different land uses.
When considering areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, several factors come into play. The ideal locations would be relatively flat or gently sloping areas that receive ample sunlight throughout the day. In the context of Bad Buchau and its surroundings, the following areas might be particularly suitable:
- The higher ground of the plateau areas, away from the wetlands and forests, could offer good potential for solar farms. These locations would likely have fewer obstructions to sunlight and could provide larger, continuous areas for panel installation.
- Agricultural lands on the outskirts of towns and villages, particularly those with a southern exposure, might be suitable for solar PV projects. These areas are often already cleared and have good access to existing infrastructure.
- Gently sloping hillsides facing south or southwest could be excellent locations for solar panels, as they would receive optimal sunlight throughout the day.
However, it's important to note that any large-scale solar PV project would need to carefully consider environmental impacts, especially given the ecological significance of the Federsee and its surrounding wetlands. Additionally, local zoning regulations, grid connection possibilities, and community acceptance would all play crucial roles in determining the feasibility of such projects in this area.
Germany solar PV Stats as a country
Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Germany?
Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.
Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
