Bad Kreuznach, located in Rheinland-Pfalz, Germany, presents a mixed picture for solar energy generation throughout the year. Situated in the Northern Temperate Zone, this location experiences significant seasonal variations in solar output.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive daily output of 5.28 kWh per kW of installed solar capacity. Spring follows closely behind, generating 4.57 kWh per day. These seasons offer excellent opportunities for solar energy production, with long daylight hours and generally favorable weather conditions.

Autumn sees a noticeable decrease in solar output, dropping to 2.53 kWh per day. This decline is due to shorter days and increased cloud cover typical of the season. Winter presents the biggest challenge for solar generation in Bad Kreuznach, with daily output plummeting to just 1.17 kWh per kW installed. The combination of short days, low sun angle, and frequent overcast conditions contributes to this significant reduction.

Optimal Panel Configuration

For those considering a fixed panel installation in Bad Kreuznach, the ideal tilt angle to maximize year-round solar production is 42 degrees facing South. This angle is calculated to optimize the panels' exposure to sunlight throughout the year, taking into account the location's latitude and seasonal sun positions.

Environmental and Weather Considerations

While Bad Kreuznach doesn't face extreme environmental challenges, there are some factors that could impact solar production:

• Winter snow: Occasional snowfall can cover panels, reducing efficiency. Regular panel cleaning or installing panels at a steeper angle can help mitigate this issue.
• Fog and mist: The nearby Nahe River can contribute to morning fog, particularly in autumn and winter. While not a major concern, it can slightly reduce early morning production.

To maximize solar energy production in Bad Kreuznach, consider using high-efficiency panels that perform well in low-light conditions. Additionally, implementing a tracking system could significantly boost output, especially during the less productive autumn and winter months. Regular maintenance, including cleaning and inspections, will help ensure optimal performance year-round.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

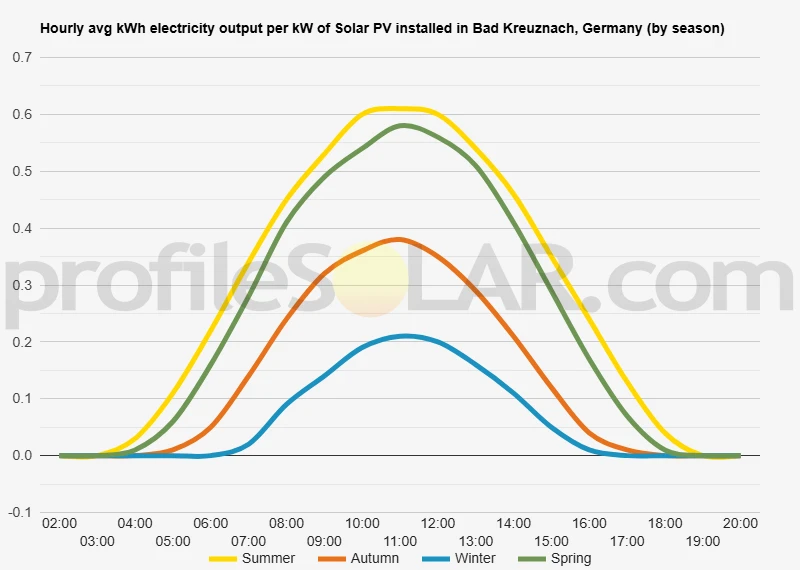

Solar output per kW of installed solar PV by season in Bad Kreuznach

Seasonal solar PV output for Latitude: 49.8366, Longitude: 7.8708 (Bad Kreuznach, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 42° South in Bad Kreuznach, Germany

To maximize your solar PV system's energy output in Bad Kreuznach, Germany (Lat/Long 49.8366, 7.8708) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bad Kreuznach, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bad Kreuznach, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
33° South in Summer	52° South in Autumn	63° South in Winter	42° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bad Kreuznach, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bad Kreuznach, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bad Kreuznach, Germany

The area surrounding Bad Kreuznach, Germany, is characterized by a diverse and picturesque landscape. Located in the Rhineland-Palatinate region, this area features a mix of rolling hills, river valleys, and forested areas. The town itself is nestled in the Nahe River Valley, with gentle slopes rising on either side. To the north and east of Bad Kreuznach, the terrain becomes more elevated, forming part of the Hunsrück mountain range. These hills are generally covered in dense forests, with some areas cleared for agriculture. The landscape is dotted with small villages and vineyards, taking advantage of the south-facing slopes. South of the town, the topography becomes more open, with wider valleys and gentler hills. This area is part of the Rhine-Nahe wine region, known for its fertile soil and favorable climate for grape cultivation. The terrain here is a patchwork of vineyards, orchards, and small farms.

Potential Areas for Large-Scale Solar PV

When considering areas suitable for large-scale solar photovoltaic (PV) installations near Bad Kreuznach, several factors come into play. The most promising locations would likely be found in the more open, south-facing areas to the south and southwest of the town. These areas offer several advantages for solar PV development. First, they tend to have more consistent exposure to sunlight throughout the day due to their orientation and lack of significant geographical obstructions. The gentler slopes in this region also make construction and maintenance of solar arrays more feasible. Additionally, the agricultural nature of much of this land might allow for dual-use scenarios, where solar panels could be installed above existing crops or pastures. This approach, known as agrivoltaics, could potentially maximize land use efficiency. It's important to note that while these areas may be topographically suitable, any large-scale solar development would need to carefully consider environmental impacts, local regulations, and the preservation of the region's cultural and agricultural heritage. The wine-growing areas, in particular, may face restrictions due to their economic and cultural significance. Areas to the north and east, while potentially suitable in terms of elevation and exposure, may be less ideal due to the prevalence of forests. Clearing forested areas for solar installations would likely face significant environmental and regulatory challenges. In conclusion, while the varied topography around Bad Kreuznach offers several potential sites for solar PV development, the most promising areas are likely to be found in the more open, agricultural lands to the south and southwest of the town. Any development would need to balance energy production goals with environmental conservation and the preservation of the region's unique landscape and cultural heritage.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
