Bad Marienberg in Rheinland-Pfalz, Germany presents a moderate opportunity for solar energy generation, though it faces the typical challenges of Northern European locations situated in the Northern Temperate Zone.

Seasonal Solar Performance

The solar energy output at this location varies dramatically throughout the year. Summer provides the strongest performance at 5.08 kWh per day per kW of installed capacity, making it the prime season for solar generation. Spring follows as the second-best period with 4.38 kWh per day per kW, offering nearly comparable output to summer months. Autumn shows a significant decline to 2.37 kWh per day per kW, while winter presents the most challenging conditions with only 1.11 kWh per day per kW. This represents more than a four-fold difference between peak summer and winter production.

Optimal Installation Configuration

For maximum year-round energy production at Bad Marienberg, solar panels should be installed at a fixed tilt angle of 43 degrees facing south. This angle has been calculated to optimize total annual output by accounting for the sun's varying position throughout the year and the location's specific latitude.

Environmental and Weather Challenges

Several factors can significantly impact solar production at this German location:

• Snow accumulation during winter months can completely block panels
• Frequent cloud cover typical of the regional climate reduces solar irradiance
• Morning fog and mist common in this temperate zone can delay daily production
• Dust and debris accumulation on panel surfaces

Preventative Measures for Better Performance

To maximize energy production despite these challenges, several installation strategies should be considered:

• Install panels with adequate tilt (the recommended 43 degrees helps with natural snow shedding)
• Ensure easy access for snow removal and regular cleaning
• Consider micro-inverters or power optimizers to minimize impact of partial shading
• Install monitoring systems to quickly identify performance issues
• Plan for regular maintenance schedules, especially before and after winter

The steep winter production drop means that battery storage or grid-tied systems become particularly important for year-round energy security. While Bad Marienberg isn't an ideal solar location compared to southern European alternatives, proper installation and maintenance can still make solar PV a viable renewable energy option for this region.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

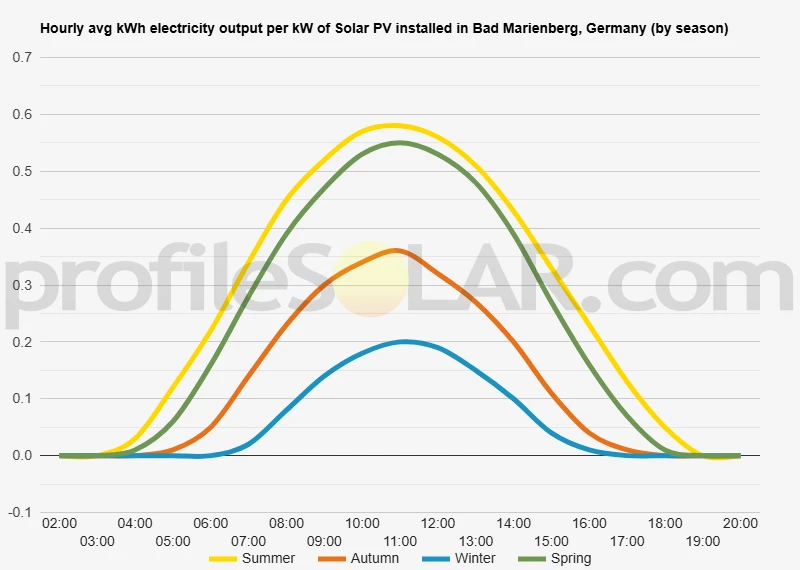

Solar output per kW of installed solar PV by season in Bad Marienberg

Seasonal solar PV output for Latitude: 50.6461, Longitude: 7.9381 (Bad Marienberg, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Bad Marienberg, Germany

To maximize your solar PV system's energy output in Bad Marienberg, Germany (Lat/Long 50.6461, 7.9381) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bad Marienberg, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bad Marienberg, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
34° South in Summer	53° South in Autumn	63° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bad Marienberg, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bad Marienberg, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bad Marienberg, Germany

Topographic Features of Bad Marienberg

Bad Marienberg sits in the heart of the Westerwald region, a highland area characterized by rolling hills and gentle ridges that form part of the Rhenish Massif. The town itself is positioned at an elevation of approximately 550 meters above sea level, making it one of the higher settlements in this part of Rhineland-Palatinate. The surrounding landscape features a series of rounded hilltops and broad valleys, typical of the ancient volcanic and sedimentary geology that defines the Westerwald. The terrain around Bad Marienberg consists primarily of undulating uplands with moderate slopes, interspersed with deeper valley systems carved by small streams and rivers. The highest points in the immediate vicinity reach elevations of around 650-700 meters, while the valley floors typically sit at 400-500 meters elevation. This creates a relatively gentle topographic relief with elevation changes of 200-300 meters across the local area. The region's geology is dominated by Devonian slate and sandstone formations, overlain in places by volcanic rocks from ancient eruptions. This geological foundation has weathered over millions of years to create the characteristic smooth, rounded hills and fertile valley bottoms that define the modern landscape. Dense forests of beech, oak, and spruce cover much of the higher ground, while agricultural land occupies the more accessible slopes and valley areas.

Climate and Weather Patterns

The Westerwald experiences a temperate oceanic climate influenced by its inland position and moderate elevation. The region receives regular precipitation throughout the year, with somewhat wetter conditions during autumn and winter months. Cloud cover varies seasonally, with clearer conditions typically occurring during late spring and summer periods. The elevated position of Bad Marienberg and surrounding areas means temperatures are generally cooler than in the nearby Rhine Valley lowlands. This highland climate contributes to frequent morning fog and mist, particularly during transitional seasons. Wind patterns are influenced by the topography, with prevailing westerly winds often channeled through the valley systems.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations in the Bad Marienberg area would be the south-facing slopes of the broader valleys and the gentler hilltops with minimal tree cover. The rolling nature of the Westerwald topography provides numerous opportunities for solar development on slopes with favorable orientations. Agricultural areas on south and southwest-facing slopes offer particular promise, as these locations typically have been cleared of forest cover and feature relatively gentle gradients suitable for solar panel installation. The valley systems extending southeast toward the Rhine plain would be especially attractive, as they combine good solar exposure with easier access for construction and maintenance activities. Areas around the smaller communities south of Bad Marienberg, where agricultural land meets the edge of forested zones, present ideal conditions. These locations benefit from open exposure while avoiding the steepest terrain found on some of the higher ridgelines. The moderate slopes in these areas, typically ranging from 5-15 degrees, are well-suited to large-scale solar installations. The elevated plateaus between major valley systems also offer potential for solar development, particularly where existing agricultural use has maintained open landscapes. These areas benefit from reduced shading from surrounding terrain while remaining accessible for construction and grid connection infrastructure.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
