Bad Schwalbach, located in Hesse, Germany, presents a moderate case for solar PV energy generation, with significant seasonal variations affecting overall performance. This location in the Northern Temperate Zone experiences considerable differences in solar production throughout the year.

Seasonal Solar Production

Solar panels in Bad Schwalbach perform quite well during summer months, generating approximately 5.20 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 4.23 kWh/day. However, autumn performance drops significantly to 2.28 kWh/day, while winter shows the poorest performance at just 1.07 kWh/day per kilowatt installed.

These figures demonstrate that Bad Schwalbach experiences strong seasonal variations in solar production, with summer generating nearly five times the electricity compared to winter months. This pattern is typical for locations in central Europe where seasonal differences in sun angle and daylight are pronounced.

Optimal Panel Installation

For fixed solar panel installations in Bad Schwalbach, the ideal tilt angle to maximize year-round production is 42 degrees facing South. This carefully calculated angle balances the seasonal variations in sun position to optimize annual energy yield.

Environmental and Weather Factors

Several factors may impact solar production in Bad Schwalbach:

• Winter snow accumulation can significantly reduce production during the already low-yield winter months if panels become covered
• The region's location in the Taunus mountain range means occasional fog and overcast conditions, particularly in autumn and winter
• Germany's northern European climate brings extended periods of cloud cover that can reduce efficiency

Preventative Measures

To maximize solar production in Bad Schwalbach despite these challenges, several approaches can help:

• Install panels at a steeper angle than the optimal 42 degrees if winter production is prioritized, as this helps snow slide off more easily
• Consider snow removal systems or regular manual clearing during winter months
• Use high-efficiency panels designed for diffuse light conditions, which perform better during cloudy periods
• Implement regular cleaning schedules, especially after pollen season in spring and leaf fall in autumn

Overall, Bad Schwalbach represents a moderate location for solar PV production. While not ideal compared to sunnier southern European locations, properly installed systems can still generate substantial clean energy, particularly from March through September when approximately 70% of the annual production occurs.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

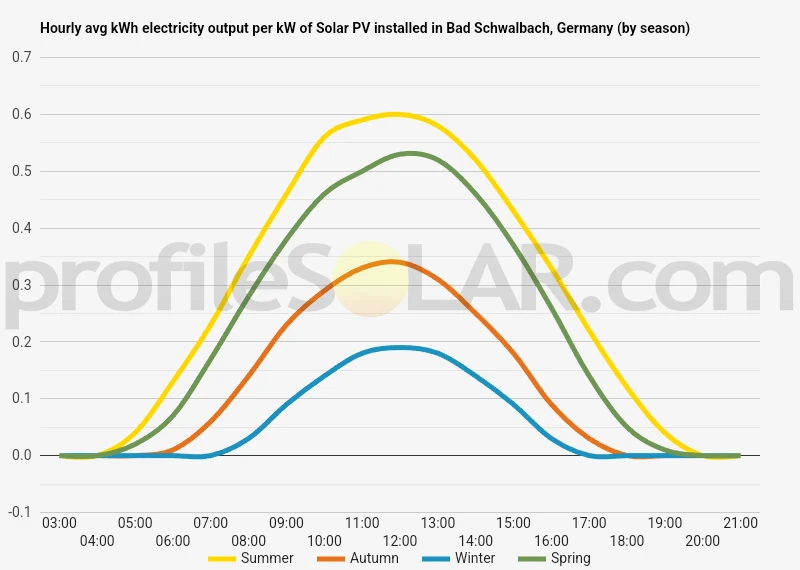

Solar output per kW of installed solar PV by season in Bad Schwalbach

Seasonal solar PV output for Latitude: 50.141, Longitude: 8.0754 (Bad Schwalbach, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 42° South in Bad Schwalbach, Germany

To maximize your solar PV system's energy output in Bad Schwalbach, Germany (Lat/Long 50.141, 8.0754) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bad Schwalbach, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bad Schwalbach, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
33° South in Summer	52° South in Autumn	63° South in Winter	42° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bad Schwalbach, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bad Schwalbach, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bad Schwalbach, Germany

The landscape surrounding Bad Schwalbach in western Germany is characterized by the distinctive topography of the Taunus mountain range, a part of the Rhenish Slate Mountains. This picturesque spa town nestles within a valley formed by the Aar River, with wooded hills rising on multiple sides. The terrain features moderate elevations, with the surrounding heights typically ranging between 300-600 meters above sea level. The topographical character of the region is defined by rolling, forested hills interspersed with valleys, creating a varied landscape. The Taunus range provides a natural backdrop to the north and east of Bad Schwalbach, while to the south and west, the terrain gradually descends toward the Rhine Valley. This hilly environment creates numerous slopes with varying aspects and inclinations throughout the area.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Bad Schwalbach would be found on south-facing slopes and relatively flat plateaus that receive minimal shadowing from the surrounding topography. Several promising locations exist in the vicinity: The more open agricultural lands to the southwest of Bad Schwalbach, extending toward Wiesbaden, offer more favorable conditions for solar development. These areas feature gentler slopes and clearer aspects, with fewer forest obstructions than the immediate surroundings of the town. The plateaus that exist atop some of the Taunus hills, particularly those that have been previously cleared for agriculture, present opportunities for solar installations. These elevated positions can benefit from reduced morning and evening shadowing effects common in valley locations. The transitional landscapes between the Taunus highlands and the Rhine Valley to the south provide a compromise between accessibility and favorable solar exposure. These areas generally feature less dramatic topography while maintaining good southern exposure. It's worth noting that the heavily forested nature of much of the immediate surroundings of Bad Schwalbach presents challenges for large-scale solar development. The ideal locations would require minimal forest clearing to maintain the ecological integrity of this historically significant natural area. Brownfield sites, former industrial areas, or existing agricultural lands would therefore represent the most environmentally appropriate options for substantial solar PV deployment in this region. The variable topography also means that careful site-specific assessment would be necessary to determine optimal positioning and to account for potential shadowing from nearby hills, particularly during winter months when the sun angle is lower. The most promising areas combine reasonable proximity to existing grid infrastructure with appropriate land characteristics and minimal environmental impact.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
