Berglen, located in Baden-Wurttemberg, Germany, presents a mixed picture for solar PV energy generation throughout the year. This Northern Temperate Zone location experiences significant seasonal variations in solar energy production, which impacts the overall efficiency of solar installations.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Berglen, with an impressive output of 5.59 kWh per day for each kW of installed solar capacity. Spring follows closely behind, generating 4.56 kWh/day. These seasons offer ideal conditions for maximizing solar energy production.

However, the picture changes dramatically during the colder months. Autumn sees a substantial drop in output to 2.81 kWh/day, while winter performance plummets to a mere 1.37 kWh/day. This stark contrast highlights the challenges of relying solely on solar energy in Berglen year-round.

Optimizing Solar Panel Installation

To maximize year-round solar energy production in Berglen, fixed solar panels should be installed at a tilt angle of 42 degrees facing south. This optimal angle helps capture the most sunlight throughout the year, balancing the varying sun positions across seasons.

Environmental and Weather Considerations

Several factors in Berglen can potentially impact solar energy production:

1. Cloud cover: The region experiences significant cloud cover, especially during winter months, which can reduce solar efficiency.
2. Snow: Winter snowfall can temporarily cover panels, hindering energy production.
3. Short winter days: The reduced daylight hours in winter further limit solar energy generation.

To mitigate these challenges, consider the following preventative measures:

• Install panels at a steeper angle to promote snow sliding off
• Use high-efficiency panels to maximize production during limited sunlight
• Implement a regular cleaning schedule to remove snow and debris
• Consider a hybrid system with other renewable sources to complement solar during low-production periods

While Berglen's location presents some challenges for year-round solar energy production, proper installation techniques and maintenance can help maximize the potential of solar PV systems in this area.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

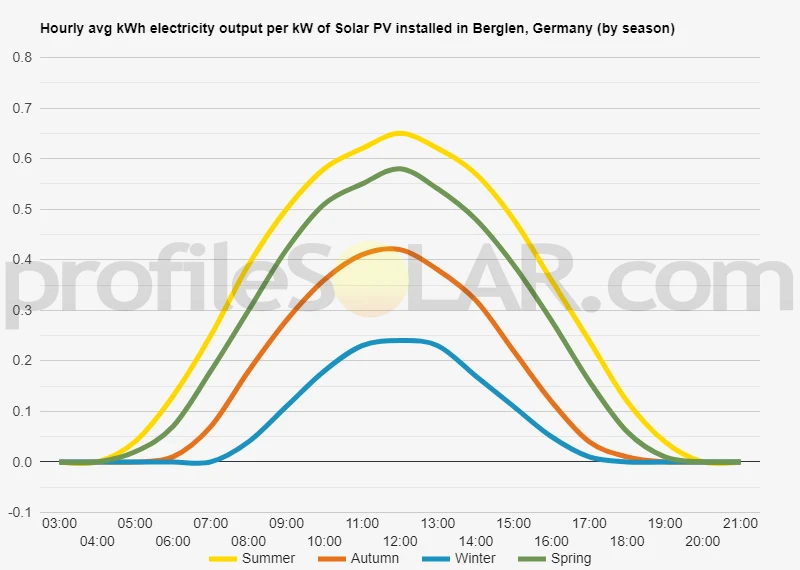

Solar output per kW of installed solar PV by season in Berglen

Seasonal solar PV output for Latitude: 48.866, Longitude: 9.4607 (Berglen, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 5.59kWh/day in Summer.

Average 2.81kWh/day in Autumn.

Average 1.37kWh/day in Winter.

Average 4.56kWh/day in Spring.

Ideally tilt fixed solar panels 42° South in Berglen, Germany

To maximize your solar PV system's energy output in Berglen, Germany (Lat/Long 48.866, 9.4607) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 48.866, Longitude: 9.4607, the ideal angle to tilt panels is 42° South

Seasonally adjusted solar panel tilt angles for Berglen, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Berglen, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Berglen, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Berglen, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Berglen, Germany

The area around Berglen, Germany, is characterized by a varied and picturesque landscape typical of the southwestern German state of Baden-Württemberg. Berglen itself is situated in a hilly region known as the Berglen Forest, which is part of the larger Swabian-Franconian Forest.

The topography of this area features gently rolling hills interspersed with small valleys and streams. The elevation generally ranges from about 300 to 500 meters above sea level. The landscape is a mix of forested areas, agricultural fields, and small settlements. The hills are often covered with dense deciduous and mixed forests, while the valleys and gentler slopes are typically used for farming and pastures.

To the south and west of Berglen, the terrain becomes slightly more rugged as it approaches the foothills of the Swabian Alps. In contrast, to the north and east, the landscape gradually becomes flatter as it transitions towards the Neckar River valley.

Regarding large-scale solar PV installations, the most suitable areas nearby would likely be found on the gentler slopes and in the broader valleys surrounding Berglen. These areas offer several advantages for solar energy production:

1. They typically have less forest cover, providing more open space for solar panel arrays.
2. The gentle slopes can be oriented towards the south, maximizing sun exposure throughout the day.
3. These areas are often already used for agriculture, making it easier to repurpose the land for solar installations.
4. The relatively flat terrain in the valleys makes construction and maintenance of solar farms more straightforward and cost-effective.

However, it's important to note that any large-scale solar PV project would need to carefully consider local environmental regulations, land use policies, and the impact on the region's scenic beauty. The forested hills, while less suitable for solar farms, play a crucial role in the local ecosystem and are valued for their natural beauty and recreational opportunities.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
