Bingen am Rhein, located in Rheinland-Pfalz, Germany, offers a moderate potential for solar energy generation throughout the year. This Northern Temperate Zone location experiences significant seasonal variations in solar output, which impacts the overall efficiency of photovoltaic (PV) systems.

Seasonal Solar Performance

Solar energy production in Bingen am Rhein peaks during the summer months, with an average daily output of 5.33 kWh per kW of installed capacity. Spring follows closely behind, generating 4.63 kWh/day. Autumn sees a considerable drop to 2.60 kWh/day, while winter experiences the lowest production at 1.22 kWh/day.

The most favorable period for solar energy generation spans from late spring through early autumn. During these months, longer daylight hours and higher sun angles contribute to increased solar panel efficiency.

Optimal Panel Installation

To maximize year-round solar energy production in Bingen am Rhein, fixed solar panels should be installed at a tilt angle of 43 degrees facing south. This orientation helps optimize the panels' exposure to sunlight throughout the year, balancing seasonal variations in sun angle and daylight duration.

Environmental and Weather Considerations

While Bingen am Rhein's climate is generally conducive to solar energy production, there are some factors that could potentially impact system performance:

• Cloud cover: The region experiences frequent cloudy days, particularly in autumn and winter, which can reduce solar output.
• Fog: Being situated along the Rhine River, morning fog is not uncommon and may delay the start of peak production hours.

To mitigate these challenges, consider implementing the following measures:

• Use high-efficiency solar panels designed to perform well in diffuse light conditions.
• Install a solar tracking system to maximize energy capture throughout the day.
• Regularly clean panels to remove any dirt or debris that may accumulate, especially during foggy periods.

By addressing these factors and optimizing panel placement, solar PV systems in Bingen am Rhein can still achieve satisfactory energy production, particularly during the more favorable months of the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

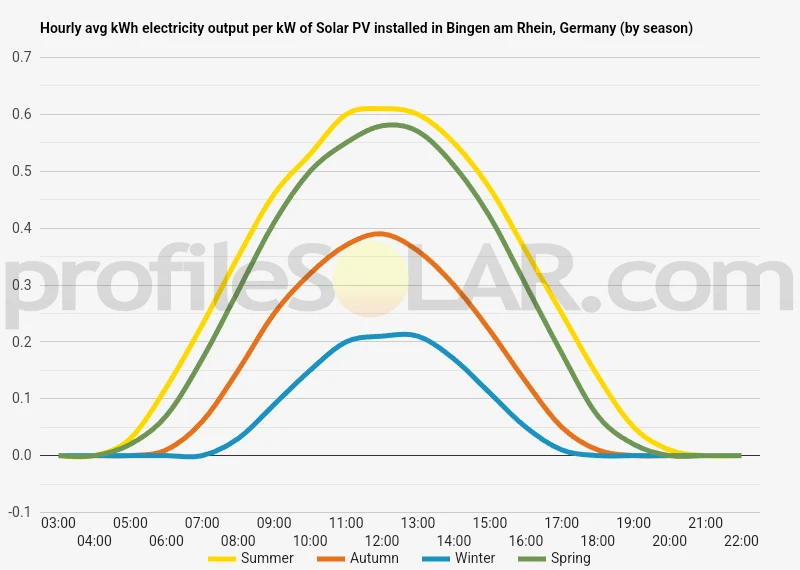

Solar output per kW of installed solar PV by season in Bingen Am Rhein

Seasonal solar PV output for Latitude: 49.9706, Longitude: 7.8981 (Bingen Am Rhein, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Bingen Am Rhein, Germany

To maximize your solar PV system's energy output in Bingen Am Rhein, Germany (Lat/Long 49.9706, 7.8981) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bingen Am Rhein, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bingen Am Rhein, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
34° South in Summer	52° South in Autumn	63° South in Winter	42° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bingen Am Rhein, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bingen Am Rhein, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bingen Am Rhein, Germany

The topography around Bingen am Rhein, Germany, is characterized by a diverse and picturesque landscape. Situated at the confluence of the Rhine and Nahe rivers, Bingen is nestled in a valley surrounded by rolling hills and steep slopes. The region is part of the Upper Middle Rhine Valley, known for its dramatic scenery and rich history. To the north and west of Bingen, the landscape rises into the Hunsrück mountain range, with gentle to moderate slopes covered in a mix of forests and vineyards. These hillsides provide stunning views of the Rhine Valley below and contribute to the area's reputation as a wine-growing region. East of Bingen, across the Rhine River, lies the Rheingau region, characterized by more gently rolling hills and expansive vineyards. This area is renowned for its wine production and offers a slightly different topographical profile compared to the western bank of the Rhine.

Solar PV Potential

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would be relatively flat, open areas with good sun exposure and minimal shading from surrounding terrain or vegetation. One potential area for solar PV development could be the plateaus atop the hills surrounding Bingen. These elevated areas often have clearer skies and less obstruction from nearby landscape features. However, care would need to be taken to balance energy production with the preservation of the region's natural beauty and wine-growing traditions. The more open, gently sloping areas of the Rheingau region to the east might also offer suitable locations for solar installations. These areas tend to have larger, contiguous plots of land that could accommodate sizeable solar farms without significantly disrupting the existing landscape. It's important to note that while the topography around Bingen presents some challenges for large-scale solar PV, innovative approaches such as integrating solar panels into existing agricultural practices (agrivoltaics) could provide a solution that respects the region's unique landscape and cultural heritage while still harnessing renewable energy.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
