Solar PV Analysis of Bottrop, Germany
Bottrop, a city in North Rhine-Westphalia, Germany, presents a mixed landscape for solar PV energy generation throughout the year. Located in the Northern Temperate Zone, this area experiences significant seasonal variations in solar output.
Seasonal Solar Performance
Summer stands out as the most productive season, with an impressive 5.22 kWh per day for each kW of installed solar capacity. Spring follows closely, generating 4.34 kWh/day. These seasons offer the best conditions for solar energy production, with longer daylight hours and generally clearer skies.
Autumn sees a considerable drop in output, producing 2.31 kWh/day. Winter presents the biggest challenge, with a meager 1.14 kWh/day, due to shorter days and typically overcast conditions.
Optimal Panel Installation
To maximize year-round solar production at this location, fixed panels should be tilted at a 44-degree angle facing south. This angle optimizes the panels' exposure to sunlight throughout the year, balancing the varying sun positions across seasons.
Environmental and Weather Considerations
Several factors could potentially impact solar production in Bottrop:
- Cloud cover: The region experiences frequent overcast conditions, especially in autumn and winter, which can significantly reduce solar output.
- Industrial pollution: As part of the Ruhr industrial area, Bottrop may face air quality issues that could slightly diminish solar panel efficiency.
To mitigate these challenges, consider the following measures when installing solar panels:
- Use high-efficiency panels designed to perform well in low-light conditions.
- Implement a robust cleaning schedule to combat potential dust and pollutant buildup on panels.
- Consider a tracking system to maximize energy capture, especially during the productive summer months.
While Bottrop's location presents some challenges for year-round solar energy production, proper installation techniques and panel selection can help maximize output, particularly during the more favorable spring and summer months.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Germany by location

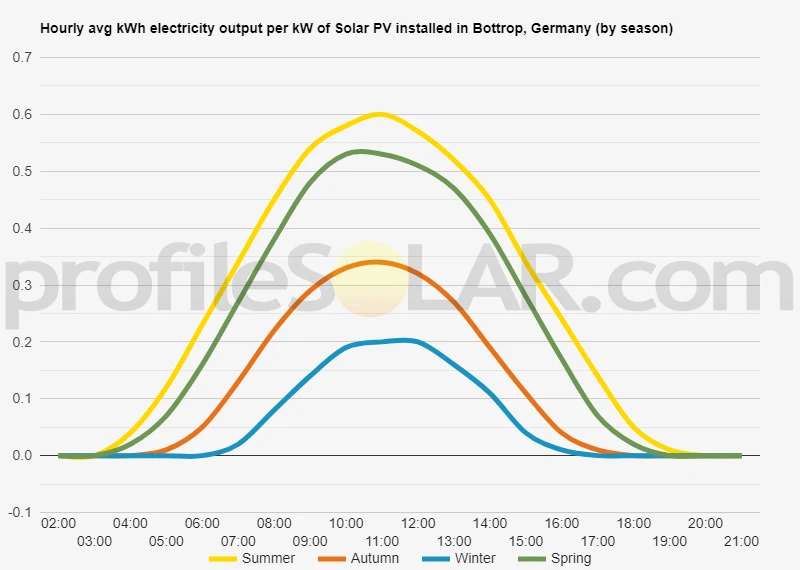

Solar output per kW of installed solar PV by season in Bottrop
Seasonal solar PV output for Latitude: 51.5208, Longitude: 6.9297 (Bottrop, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 44° South in Bottrop, Germany
To maximize your solar PV system's energy output in Bottrop, Germany (Lat/Long 51.5208, 6.9297) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Bottrop, Germany
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bottrop, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 35° South in Summer | 54° South in Autumn | 64° South in Winter | 44° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Bottrop, Germany
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bottrop, Germany.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Bottrop, Germany
The topography around Bottrop, Germany is generally characterized by gently rolling terrain with minimal elevation changes. This area is part of the larger Ruhr region, which is known for its industrial history and urban development. The landscape is a mix of urban areas, agricultural land, and patches of forest.
Bottrop itself sits at an average elevation of about 50 meters (164 feet) above sea level. The surrounding area doesn't have any significant mountains or steep hills. Instead, you'll find subtle variations in the terrain, with small hills and shallow valleys. To the north and east of Bottrop, the land tends to be slightly flatter, while to the south and west, there are more noticeable undulations in the landscape.
The region's topography has been influenced by its industrial past, particularly coal mining. This has resulted in some man-made features like slag heaps (artificial hills created from mining waste) that dot the landscape, adding some variation to the otherwise gentle terrain.
Regarding areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, there are a few considerations:
The relatively flat areas to the north and east of Bottrop could be potential candidates for solar farms. These areas often have fewer obstructions that might cast shadows on solar panels, allowing for maximum sun exposure throughout the day. Additionally, former industrial sites or reclaimed mining areas in the broader Ruhr region might be suitable for solar development, as they are often large, open spaces that are already somewhat disturbed and may not be ideal for other uses.
However, it's important to note that the Ruhr region, including Bottrop, is quite densely populated and urbanized. This means that finding large, contiguous areas for solar farms might be challenging. Rooftop solar installations on industrial buildings or large commercial structures could be a more practical option in this urban setting.
It's also worth considering that while the topography around Bottrop is generally favorable for solar PV, the region's climate, with its frequent cloud cover and relatively northern latitude, may impact the overall efficiency of solar installations compared to sunnier locations. Despite this, advances in solar technology continue to make PV systems more viable even in less sunny regions.
Germany solar PV Stats as a country
Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Germany?
Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.
Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
