Solar Energy Potential in Bretten, Baden-Württemberg

Bretten, a town in Baden-Württemberg, Germany, offers varying potential for solar PV energy generation throughout the year. Located in the Northern Temperate Zone, this location experiences distinct seasonal differences in solar energy production. The seasonal energy output shows significant variation. Summer is the most productive period, with panels generating approximately 5.50 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 4.51 kWh/day. Production drops considerably in autumn to 2.53 kWh/day, while winter sees the lowest output at just 1.19 kWh/day per kilowatt installed.

Optimal Installation Setup

For fixed panel installations in Bretten, the ideal angle to maximize year-round solar production is 41 degrees facing South. This carefully calculated angle balances seasonal variations to capture the most solar energy across the entire year. The substantial difference between summer and winter production (more than 4.5 times higher in summer) indicates that Bretten is far from ideal for consistent year-round solar generation. However, the location remains viable for solar PV installations with proper expectations about seasonal output.

Environmental and Weather Considerations

Several factors may impact solar production in Bretten. Winter months bring not only shorter days but also increased cloud cover and potential snow accumulation, which can significantly reduce panel efficiency. Fog is also common in the Baden-Württemberg region, particularly in autumn and winter months, further reducing solar exposure. To mitigate these challenges, solar installations in Bretten should incorporate:

• Snow-shedding designs with steeper installation angles where possible
• Regular maintenance schedules, especially for snow removal in winter
• High-efficiency panels that perform better in low-light conditions
• Potentially adjustable mounting systems to optimize seasonal angles

While Bretten may not be ideal for consistent year-round solar production, proper system design can still make solar PV a worthwhile investment, especially when taking advantage of the highly productive summer and spring months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

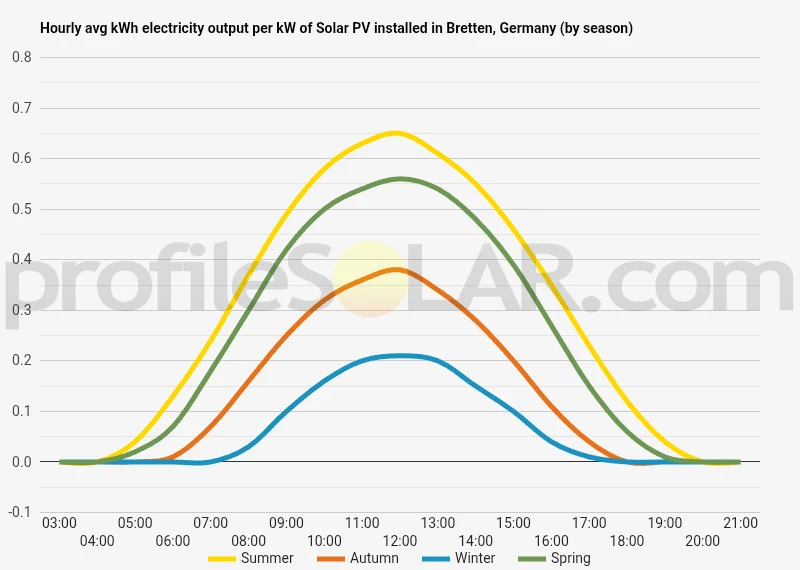

Solar output per kW of installed solar PV by season in Bretten

Seasonal solar PV output for Latitude: 49.0401, Longitude: 8.7109 (Bretten, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Bretten, Germany

To maximize your solar PV system's energy output in Bretten, Germany (Lat/Long 49.0401, 8.7109) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bretten, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bretten, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
32° South in Summer	51° South in Autumn	62° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bretten, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bretten, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bretten, Germany

Bretten is nestled in the northern part of the Black Forest region in southwestern Germany, situated within the state of Baden-Württemberg. The topography around Bretten is characterized by gently rolling hills and shallow valleys, typical of the transition zone between the Rhine Valley to the west and the more pronounced elevations of the Black Forest to the east. The landscape surrounding Bretten features a varied terrain with moderate elevation changes. The town itself sits at approximately 200 meters above sea level, with nearby hills reaching heights of 250-300 meters. This undulating landscape creates a patchwork of different exposures and slopes, with the area generally sloping downward toward the northwest where the Kraichgau region begins.

Surrounding Terrain Features

The terrain around Bretten includes several small river valleys, most notably that of the Kraichbach, which flows through the town. These valleys tend to run in a northwest-southeast orientation, creating natural corridors through the otherwise hilly terrain. The hillsides are frequently covered with a mix of agricultural fields, vineyards on south-facing slopes, and patches of forest, particularly on steeper inclines and north-facing aspects. The broader region transitions from the relatively flat Rhine Valley about 25 kilometers to the west, through the rolling hills of the Kraichgau where Bretten is located, and eventually into the more mountainous terrain of the Black Forest to the east and southeast. This geographical positioning means Bretten occupies a transitional zone between different landscape types.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Bretten would be the gently sloping south-facing hillsides that are currently used for agriculture. These locations offer several advantages: The south-facing slopes throughout the Kraichgau region, particularly those with inclinations between 5-15 degrees, provide optimal sun exposure throughout the year. These moderate slopes allow for good drainage while minimizing the engineering challenges associated with steeper terrain. Agricultural plateaus to the north and northeast of Bretten, where the landscape flattens somewhat before rising again, offer substantial contiguous areas that could accommodate large solar arrays. These areas typically have good road access for construction and maintenance. The slightly elevated areas around the neighboring communities of Gondelsheim, Bruchsal, and Knittlingen contain several expanses of open agricultural land with favorable aspects for solar development. These locations are sufficiently elevated to avoid the morning fog that sometimes settles in the lower valleys. Areas to avoid would include the steeper forested slopes, particularly those facing north, as well as the narrow valley bottoms which receive less direct sunlight due to shading from surrounding hills. Additionally, the immediate vicinity of the Kraichbach and other waterways would be less suitable due to potential flooding concerns and ecological considerations. The region's infrastructure is relatively well-developed, with a network of roads and proximity to the electrical grid, which would facilitate the connection of new solar installations to existing power distribution systems. The moderate climate of the region, with relatively mild winters compared to other parts of Germany, also contributes to the area's suitability for solar energy production.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
