Calden, Hesse, Germany, located at latitude 51.4102 and longitude 9.3907, presents a mixed scenario for solar PV energy generation throughout the year. This location in the Northern Temperate Zone experiences significant seasonal variations in solar energy production, which affects the overall efficiency of solar installations.

Seasonal Solar Performance

The solar energy output at this location varies considerably across the four meteorological seasons:

• Summer: 5.03 kWh/day per kW installed
• Spring: 4.14 kWh/day per kW installed
• Autumn: 2.21 kWh/day per kW installed
• Winter: 1.03 kWh/day per kW installed

These figures indicate that summer and spring are the most productive seasons for solar energy generation in Calden, with output levels dropping significantly during autumn and winter.

Optimal Solar Panel Configuration

For fixed panel installations in Calden, the ideal tilt angle to maximize year-round solar production is 43 degrees facing South. This angle is calculated based on the location's latitude and accounts for the Earth's elliptical orbit, ensuring the best possible year-round energy capture.

Environmental and Weather Factors

Several environmental and weather factors could potentially impact solar production in Calden: 1. Cloud cover: The region experiences frequent cloudy days, particularly during autumn and winter, which can significantly reduce solar energy production. 2. Snow accumulation: Winter snowfall can temporarily cover solar panels, reducing their efficiency until the snow melts or is removed. 3. Short winter days: The location's northern latitude results in shorter daylight hours during winter, limiting the time available for solar energy generation.

Preventative Measures

To mitigate these challenges and enhance solar energy production, consider the following measures: 1. Use high-efficiency solar panels that perform well in low-light conditions. 2. Install snow guards or implement a snow removal system to prevent snow accumulation on panels. 3. Implement a dual-axis tracking system to maximize sunlight exposure throughout the year, especially during shorter winter days. 4. Regular maintenance and cleaning of panels to ensure optimal performance, particularly after snowfall or during periods of high pollen count.

While Calden's location presents some challenges for year-round solar energy production, proper planning and implementation of these preventative measures can help maximize the efficiency of solar PV installations in the area.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

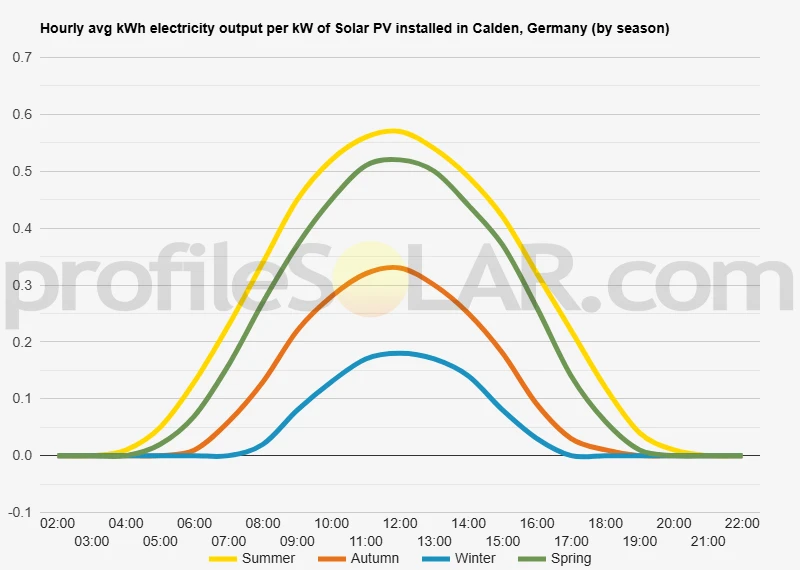

Solar output per kW of installed solar PV by season in Calden

Seasonal solar PV output for Latitude: 51.4102, Longitude: 9.3907 (Calden, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Calden, Germany

To maximize your solar PV system's energy output in Calden, Germany (Lat/Long 51.4102, 9.3907) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Calden, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Calden, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	54° South in Autumn	64° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Calden, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Calden, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Calden, Germany

The area surrounding Calden, Germany, located at latitude 51.4102 and longitude 9.3907, is characterized by a diverse and gently rolling landscape typical of the central German region. The topography of this area is a mix of low hills, shallow valleys, and open plains, creating a picturesque rural setting. Calden itself is situated in a relatively flat area, with the terrain gradually rising to the east and west. To the east, the land becomes more undulating as it approaches the Reinhardswald, a large forested area. To the west, the landscape transitions into the gentle slopes of the Habichtswald nature park. The region is dotted with small streams and rivers, which have carved shallow valleys over time. These waterways contribute to the area's agricultural fertility and add to the varied topography. Fields and meadows dominate the immediate surroundings of Calden, interspersed with patches of woodland and small settlements.

Suitability for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The gently rolling terrain in the vicinity of Calden offers some promising locations for solar energy development. The open plains and slightly elevated areas to the south and southwest of Calden present the most favorable conditions for solar PV installations. These areas benefit from minimal shading and good exposure to sunlight throughout the day. The gradual slopes in these directions can also be advantageous, as they allow for optimal panel orientation without significant earthwork. Agricultural land that is less productive or fallow fields could be potential sites for solar farms. However, it's important to balance energy production with preserving valuable farmland. Areas where the soil quality is poor or where farming is less intensive might be more suitable for solar development. The slightly higher ground to the east, as the land rises towards the Reinhardswald, could also offer good locations for solar installations. These elevated areas may receive more consistent sunlight and could potentially be less prone to morning fog or mist that might affect lower-lying areas. It's worth noting that while the region around Calden has potential for solar energy development, any large-scale projects would need to consider local environmental regulations, land use policies, and the impact on the rural landscape. Additionally, proximity to existing power infrastructure and the capacity of the local grid to accommodate new energy sources would be crucial factors in determining the most suitable locations for large-scale solar PV installations.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
