Eitorf, located in North Rhine-Westphalia, Germany, presents a moderately suitable location for year-round solar photovoltaic energy generation, though with significant seasonal variations typical of its Northern Temperate Zone climate.

Seasonal Solar Production Performance

The solar energy output at this location shows dramatic seasonal differences. Summer provides the strongest performance at 5.08 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best period with 4.38 kWh per day per kW, offering nearly comparable production levels. Autumn sees a notable decline to 2.37 kWh per day per kW, while winter presents the most challenging conditions with only 1.11 kWh per day per kW. This winter output represents less than a quarter of summer production, highlighting the substantial seasonal variation that solar installations must accommodate. The most productive months for solar generation at Eitorf span from late spring through early autumn, with the peak performance occurring during the summer months when both daylight duration and solar intensity reach their maximum levels.

Optimal Installation Configuration

For fixed solar panel installations at this location, the ideal tilt angle is 43 degrees facing south to maximize total year-round energy production. This angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to determine the optimal compromise for annual output.

Local Factors Affecting Solar Production

Several environmental and weather factors in the North Rhine-Westphalia region can significantly impact solar energy production:

• Frequent cloud cover and overcast conditions, particularly during autumn and winter months
• High humidity levels that can create atmospheric haze reducing solar irradiance
• Industrial pollution and particulate matter from nearby urban areas that can accumulate on panels
• Snow accumulation during winter months that can completely block solar panels
• Regular rainfall throughout the year that, while helpful for cleaning, can reduce production during weather events

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several installation strategies prove effective: Regular maintenance schedules should include frequent panel cleaning to remove dust, pollen, and pollution residue that accumulates on panel surfaces. Installing panels with adequate tilt helps facilitate natural cleaning from rainfall and prevents debris accumulation. Snow management systems, such as heating elements or specialized coatings that promote snow sliding, can maintain winter production levels. Alternatively, steeper mounting angles can help snow shed more naturally, though this must be balanced against the optimal 43-degree angle for maximum annual output. Proper ventilation spacing behind panels prevents moisture buildup and maintains optimal operating temperatures. Anti-reflective coatings and high-quality glass surfaces can help maximize light capture even during overcast conditions common in this region. Micro-inverters or power optimizers can help minimize the impact of partial shading from clouds or nearby structures, ensuring that temporary shading of individual panels doesn't significantly reduce overall system output.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

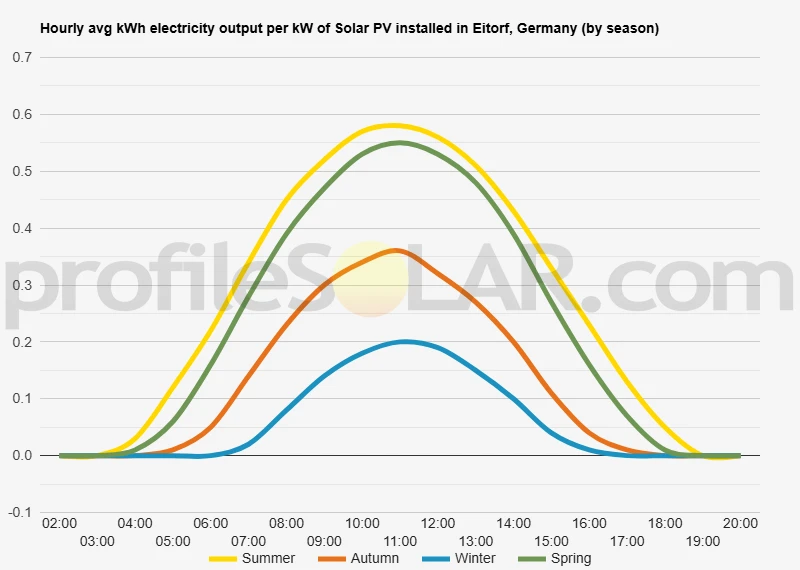

Solar output per kW of installed solar PV by season in Eitorf

Seasonal solar PV output for Latitude: 50.7735, Longitude: 7.4554 (Eitorf, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Eitorf, Germany

To maximize your solar PV system's energy output in Eitorf, Germany (Lat/Long 50.7735, 7.4554) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Eitorf, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Eitorf, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
34° South in Summer	53° South in Autumn	64° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Eitorf, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Eitorf, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Eitorf, Germany

Topographical Features of Eitorf and Surroundings

Eitorf sits within the Rhein-Sieg-Kreis district of North Rhine-Westphalia, positioned along the eastern banks of the Sieg River. The town occupies a landscape characterized by rolling hills and gentle valleys typical of the Rhine's eastern tributaries. The terrain rises gradually from the river valley floor at approximately 60 meters above sea level to higher elevations reaching around 400 meters in the surrounding countryside.

The immediate vicinity features a mix of forested hillsides and agricultural valleys, with the Bergisches Land region extending eastward toward higher elevations. Ancient geological formations have created a landscape of moderate slopes and rounded hilltops, interspersed with stream valleys that drain toward the Sieg River. The topography becomes more pronounced as one moves away from the river corridor, with steeper gradients appearing in the forested areas that characterize much of the regional landscape.

South and southwest of Eitorf, the terrain opens into broader agricultural plains as the landscape transitions toward the Rhine valley proper. These areas feature gentler gradients and more expansive field systems, while maintaining the characteristic undulating nature of the North German Plain's southern margins. The northern areas tend toward more heavily forested terrain with steeper slopes as the land rises toward the Sauerland region.

Optimal Areas for Large-Scale Solar Development

The most promising locations for substantial solar photovoltaic installations lie in the agricultural areas south and southwest of Eitorf, where the topography flattens considerably as it approaches the Rhine valley. These zones offer extensive open fields with minimal tree cover and gentle south-facing slopes that provide excellent solar exposure throughout the day. The relatively stable soil conditions in these agricultural areas also support the infrastructure requirements for large-scale installations.

The elevated plateaus and hilltops scattered throughout the region present additional opportunities, particularly those with southern exposures and minimal forest cover. These elevated positions often benefit from reduced atmospheric interference and consistent air circulation, though access and grid connection considerations may present greater challenges compared to valley locations.

Areas immediately adjacent to existing infrastructure corridors, including the railway lines and major roadways that serve the region, offer practical advantages for large installations. The relatively flat terraces along the Sieg River valley, while more limited in extent, provide accessible locations with existing utility infrastructure nearby. However, the most extensive development potential clearly lies in the broader agricultural zones where large contiguous areas remain available without significant topographical constraints.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
