Ellwangen, located in Baden-Württemberg, Germany, presents a mixed picture for solar PV energy generation throughout the year. This Northern Temperate Zone location experiences significant seasonal variations in solar output, which impacts the overall efficiency of solar installations.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive 5.75 kWh per day for each kilowatt of installed solar capacity. Spring follows as the second-best season, generating 4.59 kWh/day. However, the output drops considerably during autumn (2.78 kWh/day) and reaches its lowest point in winter (1.46 kWh/day).

These figures indicate that Ellwangen experiences a significant solar energy potential during the warmer months, particularly from late spring through early autumn. This period is ideal for maximizing solar energy production, with longer days and more direct sunlight contributing to higher yields.

Optimal Panel Positioning

To maximize year-round solar energy production in Ellwangen, fixed solar panels should be tilted at a 42-degree angle facing south. This optimal angle takes into account the location's latitude and seasonal sun positions, ensuring the best possible energy capture across all seasons.

Environmental and Weather Considerations

While Ellwangen doesn't face extreme environmental challenges for solar production, there are some factors to consider:

• Winter snow: The region can experience snowfall, which may temporarily reduce panel efficiency. Installing panels at the recommended angle helps with snow shedding.
• Cloud cover: Autumn and winter months often see increased cloud cover, contributing to lower production. Using high-efficiency panels can help mitigate this issue.

To enhance solar production in Ellwangen, consider implementing snow removal systems for winter maintenance and choosing panels with good low-light performance. Additionally, a solar tracking system could significantly boost energy yield, especially during the productive summer months, though this comes with increased installation and maintenance costs.

Overall, while Ellwangen's location presents challenges during colder months, it offers substantial solar potential, particularly from spring through autumn, making it a viable option for solar PV installations with proper planning and equipment selection.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

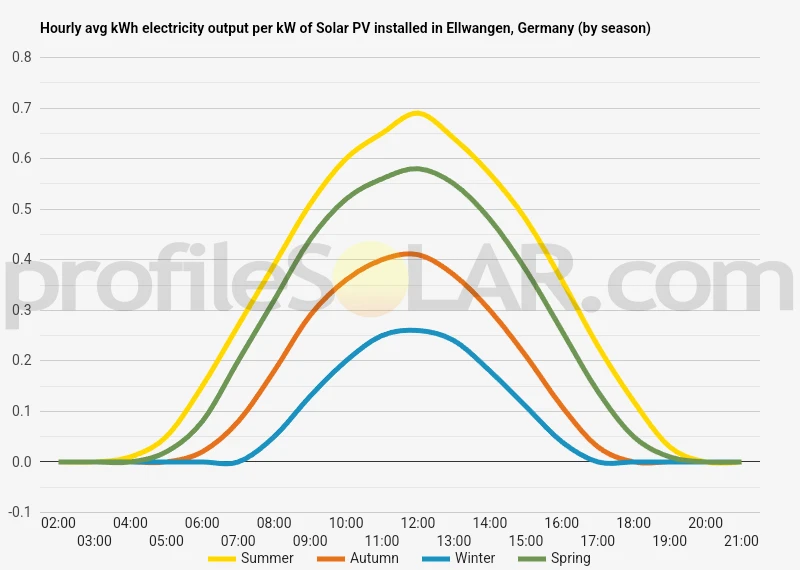

Solar output per kW of installed solar PV by season in Ellwangen

Seasonal solar PV output for Latitude: 48.9631, Longitude: 10.1484 (Ellwangen, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 42° South in Ellwangen, Germany

To maximize your solar PV system's energy output in Ellwangen, Germany (Lat/Long 48.9631, 10.1484) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ellwangen, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ellwangen, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
32° South in Summer	51° South in Autumn	62° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ellwangen, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ellwangen, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ellwangen, Germany

The area surrounding Ellwangen, Germany, is characterized by a diverse and picturesque landscape typical of the southwestern German state of Baden-Württemberg. Located in the eastern part of the state, Ellwangen sits within the Jagst Valley, named after the Jagst River that flows through the region. The topography of this area is a blend of gently rolling hills, forested areas, and open agricultural lands. The terrain around Ellwangen is part of the Swabian-Franconian Forest, a natural region known for its varied elevations and mixed woodlands. The landscape is dotted with small valleys and streams that feed into the Jagst River, creating a patchwork of different ecosystems. The elevation in this area generally ranges from about 400 to 600 meters above sea level, with some higher points reaching up to 700 meters in the surrounding hills.

Potential for Solar PV Installation

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would be relatively flat, open areas with good exposure to sunlight throughout the day. In the vicinity of Ellwangen, the most promising sites for solar farms would likely be found in the agricultural lands that stretch between the forested areas. The gently sloping fields to the south and southeast of Ellwangen could be particularly suitable for solar PV installations. These areas tend to have fewer trees and obstructions, allowing for maximum sun exposure. Additionally, the slight southward tilt of some of these slopes could potentially increase the efficiency of solar panels by optimizing their angle towards the sun. It's worth noting that while the region around Ellwangen does receive a fair amount of sunlight, it's not as sunny as some parts of southern Europe. However, advances in solar technology have made it increasingly viable to generate significant amounts of solar energy even in areas with moderate sunlight. Any large-scale solar project would need to carefully balance energy production goals with the preservation of the region's natural beauty and agricultural heritage. Environmental impact assessments and community consultations would be crucial steps in identifying the most appropriate locations for solar farms in this scenic part of Germany.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
