Erkrath, located in North Rhine-Westphalia, Germany, presents a moderately favorable location for solar PV energy generation throughout the year. Situated in the Northern Temperate Zone, this area experiences distinct seasonal variations in solar energy production.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive daily output of 5.16 kWh per kW of installed solar capacity. Spring follows closely behind, generating 4.27 kWh/day. These seasons offer excellent opportunities for maximizing solar energy production.

Autumn sees a significant drop in energy generation, with 2.25 kWh/day. Winter, as expected, presents the greatest challenge, producing only 1.09 kWh/day. This substantial seasonal variation highlights the importance of efficient system design and energy management strategies.

Optimal Panel Installation

For fixed panel installations in Erkrath, the ideal tilt angle to maximize year-round solar production is 43 degrees facing South. This angle optimizes the panels' exposure to sunlight throughout the year, balancing the varying sun positions across seasons.

Environmental and Weather Considerations

While Erkrath's location is generally suitable for solar energy production, there are some factors that could impact efficiency:

• Cloud cover: The region experiences frequent cloudy days, especially in autumn and winter, which can reduce solar output.
• Precipitation: Rain and occasional snow can temporarily decrease panel efficiency and may require more frequent cleaning.

To mitigate these challenges, consider implementing the following measures:

• Use high-efficiency panels designed to perform well in low-light conditions.
• Install a robust cleaning system or schedule regular maintenance to remove dirt and snow.
• Implement a solar tracking system to maximize energy capture, especially during the less productive months.

Despite these challenges, with proper planning and system design, Erkrath can still benefit significantly from solar PV installations, particularly during the highly productive spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

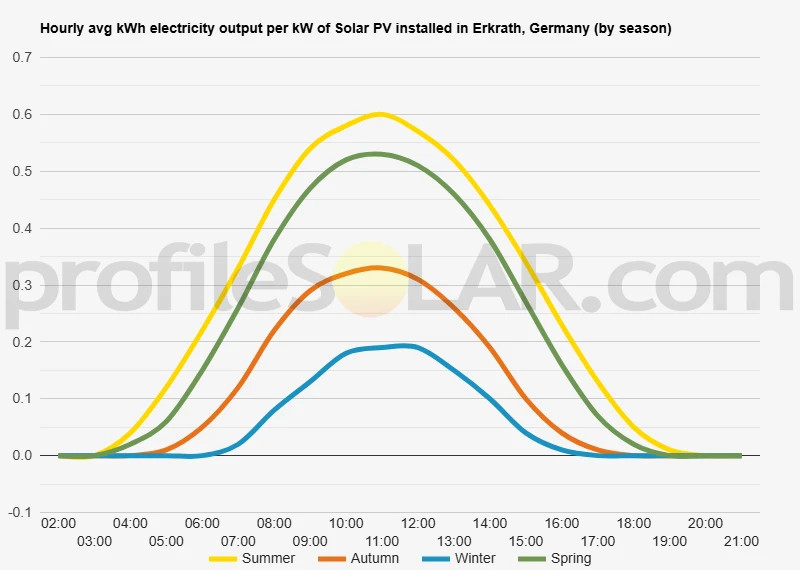

Solar output per kW of installed solar PV by season in Erkrath

Seasonal solar PV output for Latitude: 51.222, Longitude: 6.9078 (Erkrath, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Erkrath, Germany

To maximize your solar PV system's energy output in Erkrath, Germany (Lat/Long 51.222, 6.9078) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Erkrath, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Erkrath, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	54° South in Autumn	64° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Erkrath, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Erkrath, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Erkrath, Germany

The area surrounding Erkrath, Germany, located at approximately 51.222°N, 6.9078°E, is characterized by a diverse topography that reflects the transition between the Lower Rhine Plain and the Bergisches Land region. This landscape is a mix of gently rolling hills, shallow valleys, and some flatter areas, creating a picturesque setting typical of western Germany. To the west of Erkrath, the terrain gradually flattens out towards the Rhine River and the city of Düsseldorf. This area is part of the Lower Rhine Plain, featuring mostly level ground with occasional gentle slopes. Moving eastward from Erkrath, the landscape becomes more undulating as it enters the foothills of the Bergisches Land. Here, the topography is marked by a series of low hills and valleys, with elevations generally increasing as one moves further east. The immediate vicinity of Erkrath itself sits in a transitional zone between these two distinct landscapes. The town is nestled in a shallow valley, with modest hills rising to the east and south. Small streams and creeks wind through the area, contributing to the varied terrain.

Suitability for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would combine relatively flat or gently sloping terrain, good sun exposure, and minimal shading from natural or man-made features. The flatter areas to the west and northwest of Erkrath, extending towards Düsseldorf, present the most promising locations for large-scale solar PV projects. These areas benefit from the more level topography of the Lower Rhine Plain, which would simplify installation and reduce costs associated with land preparation. Additionally, some of the gentler slopes on the hills to the east and south of Erkrath could potentially be suitable, particularly those facing south or southwest. These locations might offer good sun exposure throughout the day, although careful site selection would be necessary to avoid areas with significant shading from trees or other landscape features. It's important to note that while topography is a crucial factor, other considerations such as land availability, proximity to power infrastructure, and local zoning regulations would also play significant roles in determining the feasibility of large-scale solar PV installations in the region around Erkrath.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
