Friedrichshafen, located in Baden-Wurttemberg, Germany, presents a mixed picture for solar PV energy generation throughout the year. This Northern Temperate Zone location experiences significant seasonal variations in solar output, which impacts the overall efficiency of solar installations.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive 5.71 kWh per day for each kW of installed solar capacity. Spring follows closely, generating 4.85 kWh/day. These seasons offer ideal conditions for solar energy production, with longer daylight hours and generally clearer skies.

Autumn sees a noticeable decline in output, producing 2.99 kWh/day. Winter presents the greatest challenge, with a mere 1.52 kWh/day, less than a third of the spring output. This significant drop is due to shorter days, lower sun angles, and typically cloudier weather.

Optimizing Solar Installation

To maximize year-round solar production in Friedrichshafen, fixed solar panels should be tilted at a 41-degree angle facing south. This optimal angle helps capture the most sunlight throughout the year, balancing the varying sun positions across seasons.

Environmental and Weather Factors

Several factors can impact solar production in Friedrichshafen:

• Cloud cover: The region experiences significant cloud cover, especially in winter, which can reduce solar efficiency.
• Fog: Being near Lake Constance, Friedrichshafen is prone to fog, particularly in autumn and winter mornings.

To mitigate these challenges, consider the following measures:

• Use high-efficiency solar panels designed to perform well in low-light conditions.
• Implement a robust cleaning schedule to remove any dirt or debris that may accumulate, especially after foggy periods.
• Consider a solar tracking system for larger installations to maximize energy capture throughout the day.

While Friedrichshafen's location presents some challenges for year-round solar energy production, proper planning and installation can still yield significant benefits, particularly during the spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

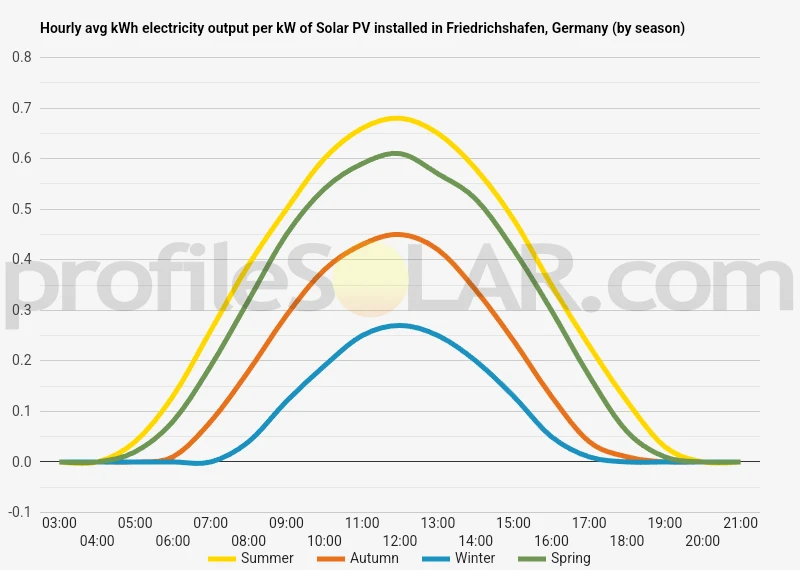

Solar output per kW of installed solar PV by season in Friedrichshafen

Seasonal solar PV output for Latitude: 47.6501, Longitude: 9.4881 (Friedrichshafen, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 5.71kWh/day in Summer.

Average 2.99kWh/day in Autumn.

Average 1.52kWh/day in Winter.

Average 4.85kWh/day in Spring.

Ideally tilt fixed solar panels 41° South in Friedrichshafen, Germany

To maximize your solar PV system's energy output in Friedrichshafen, Germany (Lat/Long 47.6501, 9.4881) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 47.6501, Longitude: 9.4881, the ideal angle to tilt panels is 41° South

Seasonally adjusted solar panel tilt angles for Friedrichshafen, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Friedrichshafen, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Friedrichshafen, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Friedrichshafen, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Friedrichshafen, Germany

Friedrichshafen is a city located on the northern shore of Lake Constance (also known as Bodensee) in southern Germany. The topography of the area around Friedrichshafen is characterized by a mix of gentle hills, flat areas, and the lake's shoreline.

The immediate vicinity of Friedrichshafen is relatively flat, with the city itself situated at an elevation of about 400 meters (1,312 feet) above sea level. As you move away from the lake, the landscape gradually becomes more hilly, with elevations increasing towards the north and northeast. These hills are part of the foothills of the Alps, which can be seen in the distance on clear days.

To the west and northwest of Friedrichshafen, you'll find a mix of agricultural land and forested areas. The terrain here is gently undulating, with small valleys and streams cutting through the landscape. To the east, the shoreline of Lake Constance continues, dotted with other towns and villages.

For large-scale solar PV installations, the most suitable areas nearby would likely be found in the flatter, open spaces to the north and northwest of Friedrichshafen. These areas offer several advantages for solar energy production:

1. They have fewer obstructions that could cast shadows on solar panels, such as tall buildings or dense forests.
2. The gently sloping terrain can provide good sun exposure throughout the day.
3. There is more available land that is not densely populated or used for other purposes.
4. The agricultural areas may offer opportunities for dual-use solar installations, where farming can continue beneath elevated solar panels.

However, it's important to note that any large-scale solar PV project would need to consider factors beyond just topography, such as local regulations, grid connection possibilities, and environmental impact assessments. The region's climate, with its moderate summers and cold winters, would also play a role in determining the overall efficiency and output of solar installations.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
