Solar PV Analysis of Grafing Bei Munchen, Germany
Grafing bei Munchen, Bavaria, Germany is a decent location for generating solar energy throughout the year. However, its effectiveness varies depending on the season.
In simple terms, in summer you can expect to generate about 5.75 units of electricity every day for each unit of installed solar power - that's pretty good and it's the best time of year for making solar energy here. In autumn this drops to around 2.78 units per day and winter is even lower at just 1.46 units per day - so these aren't great times for producing solar power here because there's less sun shining down on us during these seasons compared to summer.
Spring sees an improvement with around 4.59 units generated per day which isn't as high as summer but still quite good considering.
If you're installing fixed panels (ones that don't move), you'll get the most out of your system if you tilt them towards the south at an angle of 41 degrees - this helps to catch more sunlight across the whole year.
As far as environmental or weather factors go that could impact how much electricity your panels produce, Germany does have some cloudy days which means less sunlight hitting your panels and therefore less electricity being made by them.
To help counteract this issue when installing your solar system, consider using panels designed to perform well under low light conditions or even ones equipped with technology that allows them to track the sun across the sky during daylight hours – although these can be more expensive options than standard fixed panels.
Also remember regular maintenance such as cleaning dust or snow off your panels will ensure they are working at their maximum efficiency regardless of weather conditions.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Germany by location

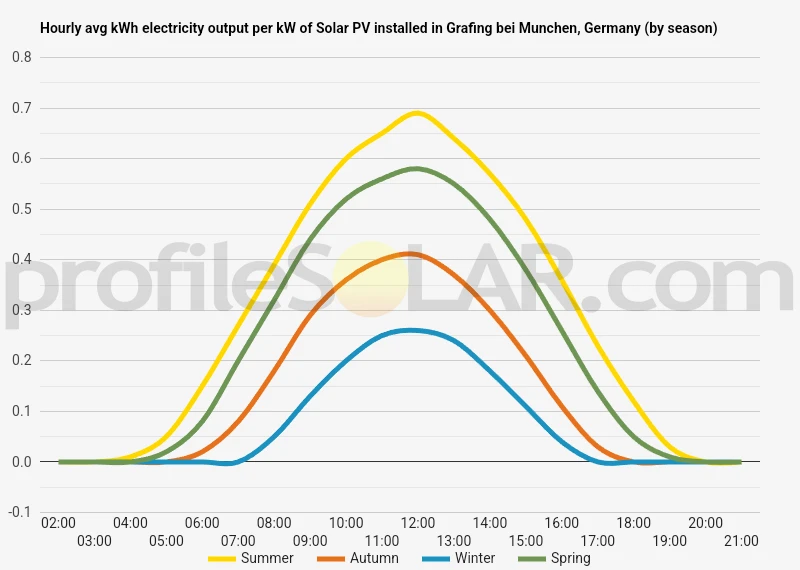

Solar output per kW of installed solar PV by season in Grafing Bei Munchen
Seasonal solar PV output for Latitude: 48.0463, Longitude: 11.9609 (Grafing Bei Munchen, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 41° South in Grafing Bei Munchen, Germany
To maximize your solar PV system's energy output in Grafing Bei Munchen, Germany (Lat/Long 48.0463, 11.9609) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Grafing Bei Munchen, Germany
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Grafing Bei Munchen, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 31° South in Summer | 51° South in Autumn | 61° South in Winter | 40° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Grafing Bei Munchen, Germany
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Grafing Bei Munchen, Germany.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Grafing Bei Munchen, Germany
Grafing bei München is located in the south of Germany, in the state of Bavaria. The topography in this region is predominantly flat to gently rolling, with a mix of urban areas and farmland. There are some forested areas as well.
The area surrounding Grafing bei München has a temperate seasonal climate which might be suitable for solar PV installations. However, the suitability of specific sites would depend on several factors such as their orientation (south-facing slopes are usually best), absence of shading from trees or buildings, and local planning regulations.
Large-scale solar PV projects often require significant amounts of open land so agricultural fields could potentially be good locations if they meet these criteria and if there aren't any restrictions on their use for this purpose. Rooftops in urban areas can also be utilized for smaller scale installations or collectively for larger ones.
However, it's important to note that while Germany does have a strong renewable energy sector including solar power, its latitude means that it receives less sunlight than countries closer to the equator. Therefore, comprehensive feasibility studies including sun path analysis would need to be conducted before deciding on large-scale solar PV locations.
Moreover, due consideration should also be given to grid connectivity issues and potential environmental impact before setting up large-scale solar facilities.
Germany solar PV Stats as a country
Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Germany?
Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.
Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
