Haan, North Rhine-Westphalia, Germany presents a moderately challenging location for year-round solar energy generation. Located in the Northern Temperate Zone, this area experiences significant seasonal variation in solar output that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy production at this location varies dramatically throughout the year. Summer months deliver the strongest performance at 5.17 kWh per day per kW of installed capacity, making this the prime season for solar generation. Spring follows as the second-best period with 4.28 kWh per day per kW, offering excellent energy production as daylight hours increase. Autumn sees a notable decline to 2.26 kWh per day per kW, while winter presents the most challenging conditions with only 1.09 kWh per day per kW of production. This represents less than one-quarter of the summer output, highlighting the seasonal dependency of solar energy at this northern latitude.

Optimal Installation Configuration

For fixed panel installations at this location, the ideal tilt angle is 43 degrees facing south to maximize total year-round production. This angle is calculated using weighted solar elevation data throughout the year and accounts for Earth's elliptical orbit around the sun.

Local Environmental Challenges

Several environmental and weather factors in the North Rhine-Westphalia region can significantly impact solar production:

• Frequent cloud cover and overcast skies, particularly during autumn and winter months
• High humidity levels that can reduce solar panel efficiency
• Industrial air pollution from the densely populated Ruhr region nearby
• Regular precipitation throughout the year

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies prove effective:

• Install panels with anti-reflective coatings to capture more diffuse light during cloudy conditions
• Ensure adequate ventilation behind panels to prevent heat buildup in humid conditions
• Design systems with steeper tilt angles or self-cleaning surfaces to help rain wash away dust and pollutants
• Consider tracking systems that follow the sun's path, particularly valuable during lower-output seasons
• Plan for regular maintenance and cleaning schedules to remove accumulated dirt and debris

While Haan's location presents challenges for consistent year-round solar generation, proper system design and maintenance can help optimize performance during both peak and low-production seasons.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

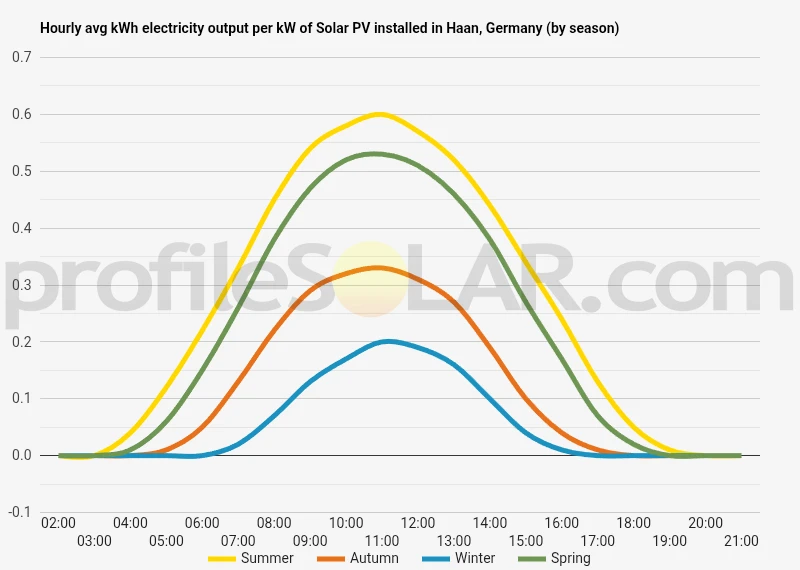

Solar output per kW of installed solar PV by season in Haan

Seasonal solar PV output for Latitude: 51.1964, Longitude: 7.0147 (Haan, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Haan, Germany

To maximize your solar PV system's energy output in Haan, Germany (Lat/Long 51.1964, 7.0147) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Haan, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Haan, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	54° South in Autumn	64° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Haan, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Haan, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Haan, Germany

Topography Around Haan, Germany

Haan sits in the western part of North Rhine-Westphalia, positioned within the gently rolling landscape of the Lower Rhine region. The terrain around this area is characterized by relatively modest elevation changes, with the town itself located at approximately 160 meters above sea level. The topography consists primarily of undulating hills and shallow valleys that were shaped by ancient glacial activity and river erosion over thousands of years.

The landscape gradually rises toward the east as it approaches the foothills of the Bergisches Land, a low mountain range that forms part of the Rhenish Massif. To the west, the terrain becomes progressively flatter as it extends toward the Rhine River valley. This transitional zone creates a varied but generally manageable topography with slopes that are neither too steep nor completely flat.

The region features a mix of agricultural fields, scattered woodlands, and suburban development. Many of the surrounding hills have gentle gradients that rarely exceed 10-15 degrees, making them accessible for various land uses. The area is drained by several small streams and tributaries that flow generally westward toward the Rhine, creating shallow valleys that add subtle variation to the landscape.

Optimal Areas for Large-Scale Solar PV Development

The most suitable locations for large-scale solar photovoltaic installations around Haan would be the gently sloping hillsides that face south or southwest. These areas offer the dual advantages of favorable solar orientation and sufficient space for extensive panel arrays. The moderate slopes in these locations also provide natural drainage, which helps prevent water accumulation around solar installations.

Agricultural areas to the southwest and west of Haan present particularly promising opportunities for solar development. These zones feature relatively flat to gently undulating terrain with minimal tree coverage, reducing the potential for shading issues. The open character of these agricultural landscapes also means fewer obstacles for construction and maintenance access.

The elevated areas to the southeast, while offering good solar exposure, may be less suitable for very large installations due to their more varied topography and higher concentration of existing woodland. However, cleared areas within this zone could still accommodate smaller to medium-sized solar farms, particularly on south-facing slopes that have been previously developed or cleared for agriculture.

Areas closer to existing infrastructure, such as major roads and electrical transmission lines, would be particularly advantageous for solar development. The relatively flat terrain near transportation corridors would minimize construction challenges while providing easier access for ongoing maintenance operations. Additionally, proximity to existing electrical infrastructure would reduce the costs and complexity of connecting solar installations to the regional power grid.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.
