Helmbrechts, Bavaria, Germany presents a moderately challenging location for year-round solar PV energy generation, with significant seasonal variations that are typical for its Northern Temperate Zone position.

Seasonal Solar Performance

The solar energy output at this location shows dramatic seasonal swings. Summer delivers the strongest performance at 5.08kWh per day per kW of installed capacity, making it nearly five times more productive than the winter months, which drop to just 1.06kWh per day per kW. Spring provides good energy generation at 4.19kWh per day per kW, while autumn falls to a moderate 2.30kWh per day per kW. This means that approximately 75% of the annual solar energy production occurs during the warmer six months from spring through summer, with winter being particularly unproductive for solar generation. The ideal times for solar energy generation at Helmbrechts are clearly late spring through early autumn, with peak performance during the summer months.

Optimal Panel Installation

For maximum year-round solar production at this location, fixed solar panels should be tilted at 42 degrees facing south. This angle has been calculated to optimize total annual energy output by accounting for the sun's changing position throughout the year and weighting the angles based on actual solar irradiance data.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Helmbrechts area can significantly impact solar panel performance:

• Snow accumulation: Winter snow can completely block solar panels for days or weeks
• Frequent cloud cover: Bavaria experiences considerable cloudy weather, particularly in autumn and winter
• Fog and mist: Common in German valleys and can reduce solar irradiance
• Tree coverage: The heavily forested Bavarian landscape can create shading issues

Preventative Measures for Better Performance

Several installation strategies can help maximize solar energy production despite these challenges:

• Steep panel angles: Installing panels at steeper angles (like the recommended 42 degrees) helps snow slide off more easily
• Strategic placement: Careful site selection away from tall trees, buildings, and other obstructions that could cast shadows
• Regular maintenance: Scheduled cleaning and snow removal during winter months
• Quality equipment: Using panels designed for low-light conditions can help capture more energy during cloudy periods

While Helmbrechts is not an ideal location for solar PV compared to sunnier regions, proper installation and maintenance can still make solar energy a viable option, particularly when combined with battery storage to make the most of the productive summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

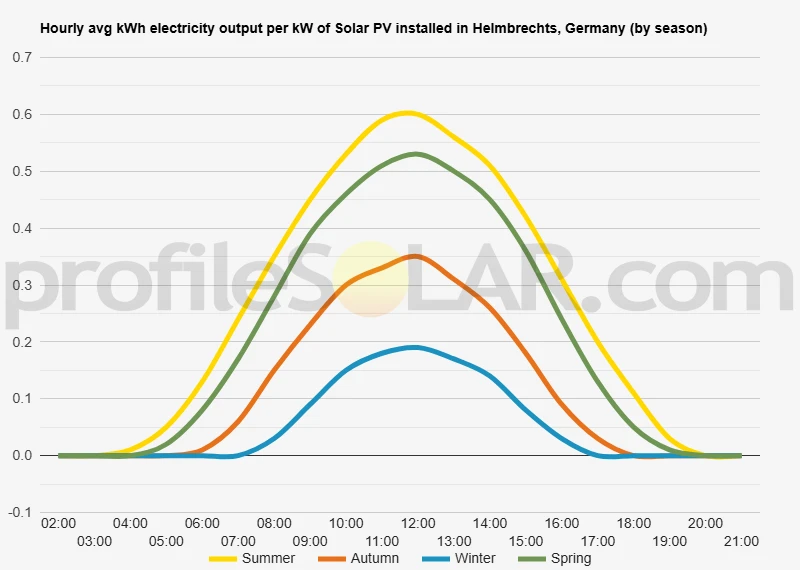

Solar output per kW of installed solar PV by season in Helmbrechts

Seasonal solar PV output for Latitude: 50.2433, Longitude: 11.7174 (Helmbrechts, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 42° South in Helmbrechts, Germany

To maximize your solar PV system's energy output in Helmbrechts, Germany (Lat/Long 50.2433, 11.7174) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Helmbrechts, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Helmbrechts, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
34° South in Summer	53° South in Autumn	63° South in Winter	42° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Helmbrechts, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Helmbrechts, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Helmbrechts, Germany

Topographical Features of Helmbrechts

Helmbrechts sits in the rolling hills of northern Bavaria, positioned within the Franconian Forest (Frankenwald) region. This area is characterized by gentle to moderate elevation changes, with the town itself located at approximately 600 meters above sea level. The surrounding landscape features a mix of forested hills, open meadows, and agricultural valleys that create an undulating terrain typical of the German uplands. The region displays a classic Central European highland topography, where rounded hilltops are interspersed with shallow valleys carved by small streams and rivers. Dense coniferous and mixed forests cover many of the steeper slopes and higher elevations, while the more gentle gradients and valley floors are predominantly used for agriculture and pastureland. The terrain generally slopes from southeast to northwest, following the broader geological patterns of the Bohemian Massif.

Elevation and Slope Characteristics

The topography around Helmbrechts varies considerably within relatively short distances. While the town center occupies a moderately elevated position, the surrounding area includes hills rising to over 700 meters elevation as well as valleys dropping to around 400 meters. These elevation differences occur gradually rather than through steep escarpments, creating a landscape of rolling hills with slopes typically ranging from gentle to moderate. Most slopes in the immediate vicinity fall within manageable gradients for development, though some of the more heavily forested hillsides present steeper inclines. The valley systems tend to be broad and open rather than deeply incised, providing substantial areas of relatively flat to gently sloping terrain that could accommodate various land uses.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations around Helmbrechts would be the south-facing slopes and open agricultural areas in the broader valleys. These locations combine favorable solar exposure with manageable terrain that would minimize installation and maintenance challenges. The agricultural valleys southeast and southwest of the town center offer particularly attractive conditions, with gentle slopes oriented toward the sun and minimal shading from surrounding topography. Open meadowlands and former agricultural areas on the lower hillsides would also present excellent opportunities for solar development. These areas typically feature gentle to moderate slopes that are ideal for optimizing panel orientation while avoiding the complications associated with steep terrain. The relatively open nature of these landscapes means fewer obstacles from existing vegetation or structures. Areas to avoid for large-scale solar installations would include the heavily forested steep slopes, particularly those on north-facing aspects, and the narrow valley bottoms where seasonal fog and reduced solar access could impact performance. The densely wooded hilltops, while potentially offering good solar exposure, would require extensive clearing and present greater environmental and logistical challenges for development.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
